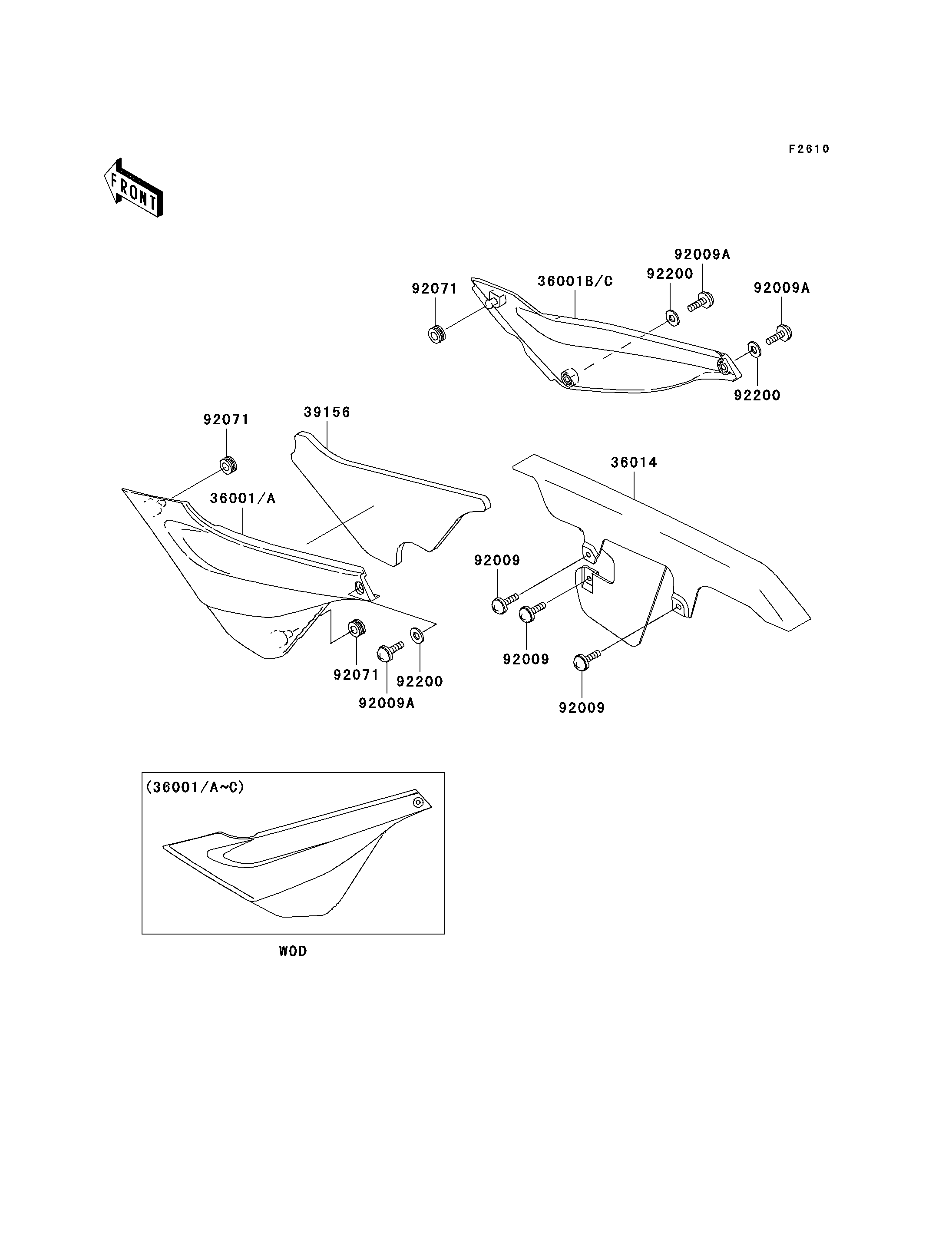

2004 Super Sherpa (Canada Only) - Side Covers/Chain Cover

36001
36001B
36014
39156
92009
92009
92009
92009A
92009A
92009A
92071
92071
92071
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,EBONY 36001 36001-1580-6C 1
COVER-SIDE,RH,EBONY 36001B 36001-1581-6C 1
CASE-CHAIN 36014 36014-1209 1
PAD,SIDE COVER,LH 39156 39156-1580 1
SCREW,6X10 92009 92009-1661 3
SCREW,6X16 92009A 92009-1806 3
GROMMET 92071 92071-056 3
WASHER,6.5X14X1 92200 92200-1388 3
