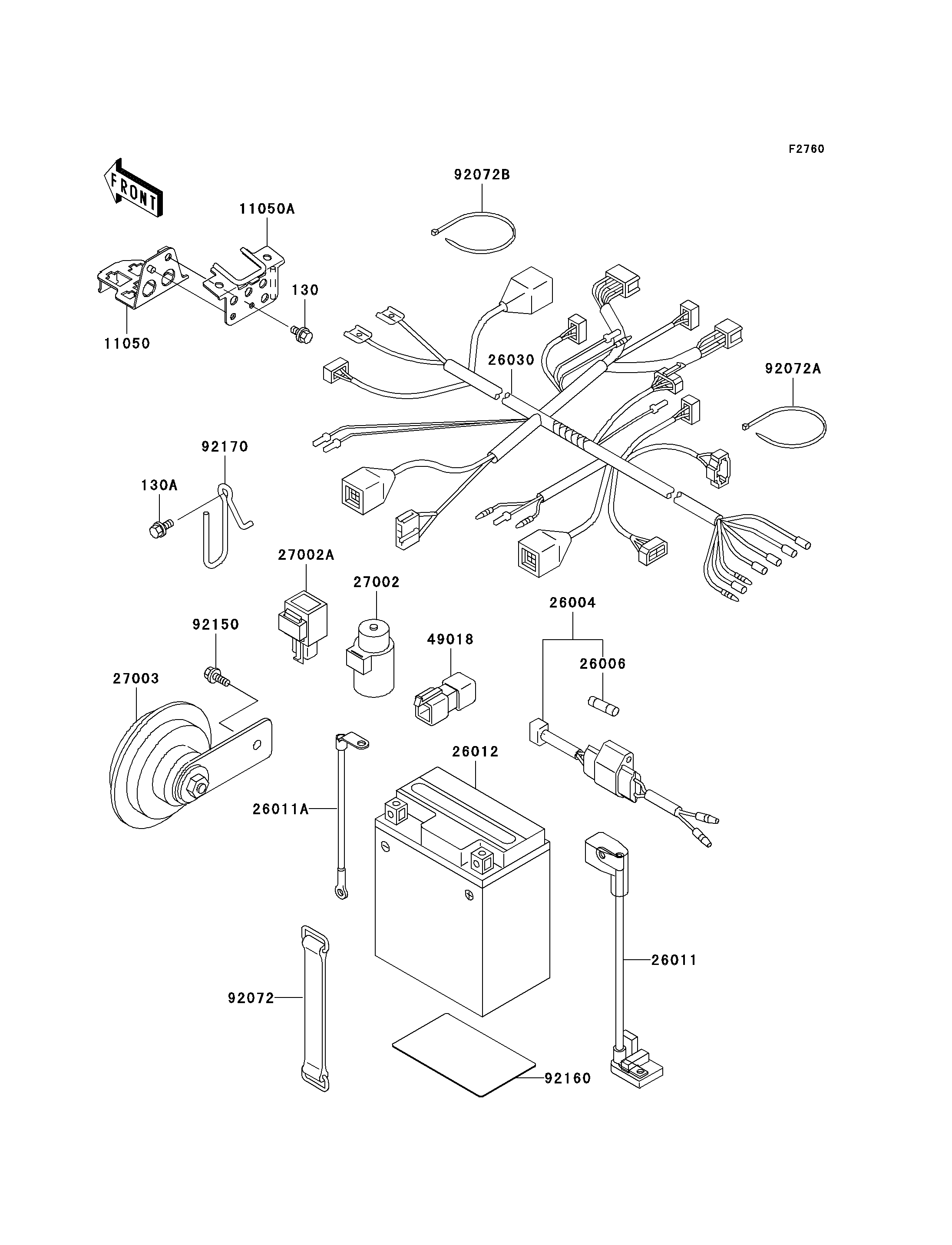

2004 Super Sherpa (Canada Only) - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130A
11050
11050A
26004
26006
26011
26011A
26012
26030
27002
27002A
27003
49018
92072
92072A
92072B
92150
92160
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0610 1
BOLT-FLANGED 130A 130J0612 1
BRACKET,HARNESS COUPLER 11050 11050-1443 1
BRACKET,HARNESS COUPLER 11050A 11050-1444 1
FUSE-ASSY 26004 26004-1108 1
FUSE,10A,L=30 26006 26006-1002 3
WIRE-LEAD,BATTERY(+) 26011 26011-1659 1
WIRE-LEAD,BATTERY(-) 26011A 26011-1660 1
BATTERY,YTX7L-BS,12V 6AH 26012 26012-1321 1
HARNESS,MAIN 26030 26030-1661 1
RELAY-ASSY 27002 27002-1051 1
RELAY-ASSY,TURN SIGNAL 27002A 27002-1101 1
HORN 27003 27003-1366 1
DIODE 49018 49018-1052 1
BAND,L=150 92072 92072-1188 1
BAND,L=202 92072A 92072-1195 12
BAND,L=140 92072B 92072-1293 4
BOLT,6X14 92150 92150-1340 1
DAMPER,BATTERY 92160 92160-1880 1
CLAMP,HARNESS 92170 92170-1787 1
