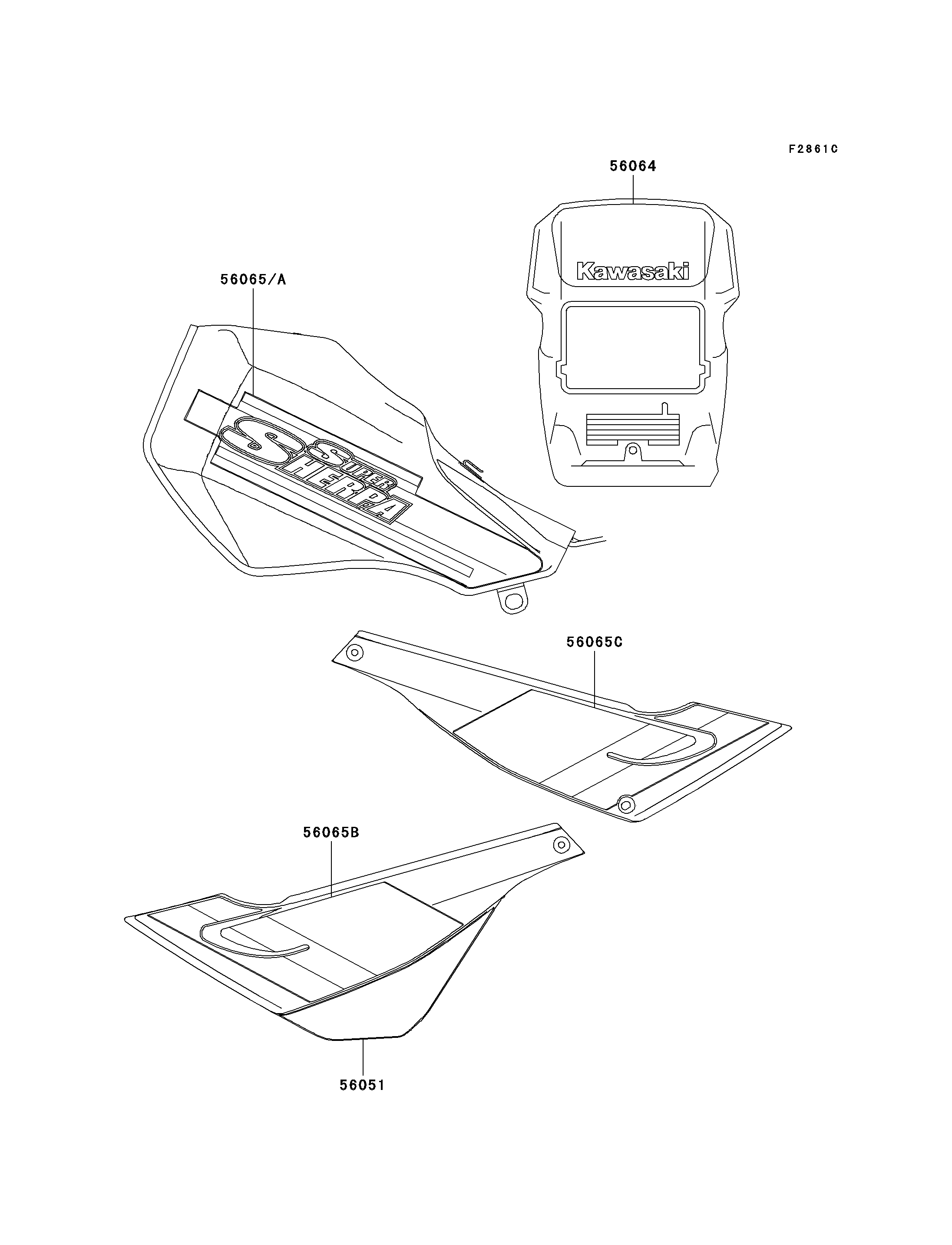

2004 Super Sherpa (Canada Only) - Decals(KL250-G8)

56051
56064
56065
56065A
56065B
56065C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SIDE COVER,LH 56051 56051-1633 1
PATTERN,HEAD LAMP 56064 56064-1755 1
PATTERN,FUEL TANK,LH 56065 56065-1925 1
PATTERN,FUEL TANK,RH 56065A 56065-1926 1
PATTERN,SIDE COVER,LH 56065B 56065-1927 1
PATTERN,SIDE COVER,RH 56065C 56065-1928 1
