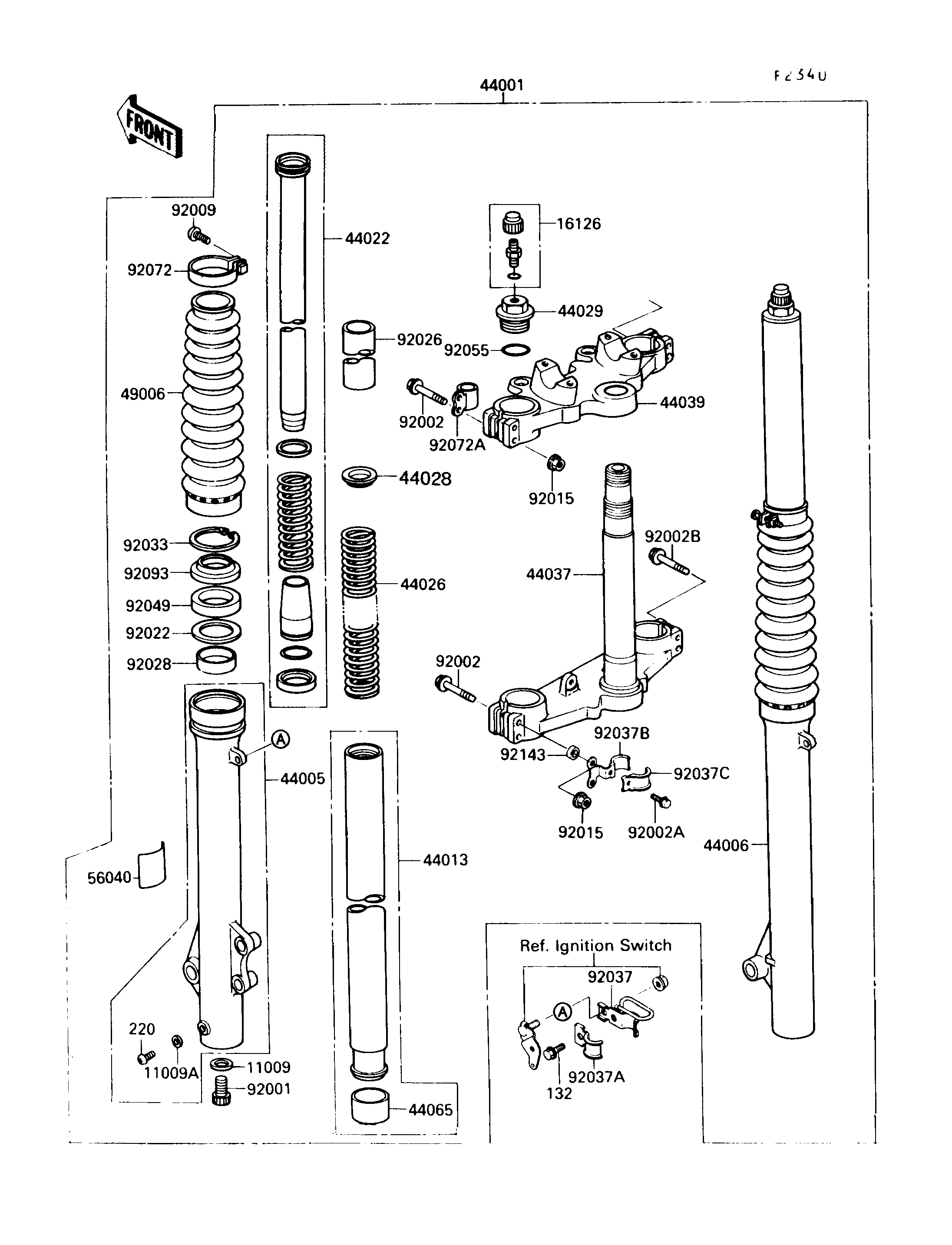

1988 KLR®650 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 11009-1127 2
GASKET,FORK DRAIN PLUG 11009A 44045-002 2
VALVE,AIR 16126 16126-1052 2
FORK-FRONT,BLUE 44001 44001-1648-BC 1
PIPE-LEFT FORK OUTER 44005 44005-1262 1
PIPE-RIGHT FORK OUTER 44006 44006-1259 1
PIPE-FORK INNER 44013 44013-1264 2
CYLINDER-FORK 44022 44022-1211 2
SPRING-FRONT FORK 44026 44026-1369 2
GUIDE-FORK SPRING 44028 44028-1003 2
SEAT-FORK SPRING 44029 44029-1042 2
HOLDER-FORK UNDER 44037 44037-1207 1
HOLDER-FORK UPPER 44039 44039-1160 1
BUSHING-FRONT FORK,INNER PIPE 44065 44065-1057 2
BOOT,FORK,BLUE 49006 49006-1222-BC 2
LABEL-WARNING,FRONT FORK 56040 56040-1120 1
BOLT,FORK CYLINDER 92001 92001-1309 2
BOLT,FLANGED,8X55 92002 92002-1158 6
BOLT 92002A 92002-1982 1
BOLT,FLANGED,8X45 92002B 92002-1983 2
SCREW,4X16 92009 92009-1348 2
NUT,FLANGED,8MM 92015 92015-1408 8
WASHER 92022 92022-1242 2
SPACER 92026 92026-1294 2
BUSHING 92028 92028-1125 2
RING-SNAP,FORK 92033 92033-1047 2
CLAMP,HOSE 92037 92037-1897 1
CLAMP,HOSE 92037A 92037-1898 1
CLAMP 92037B 92037-1913 1
CLAMP 92037C 92037-1931 1
SEAL-OIL,FRONT FORK 92049 92049-1180 2
RING-O,FORK TOP CAP 92055 92055-1050 2
BAND,BOOT 92072 92072-1171 2
BAND,CABLE 92072A 92072-1225 1
SEAL,FRONT FORK 92093 92093-1166 2
COLLAR 92143 92143-1134 2
BOLT-FLANGED-SMALL 132 132J0612 1
SCREW-PAN-CROS 220 220B0408 2
