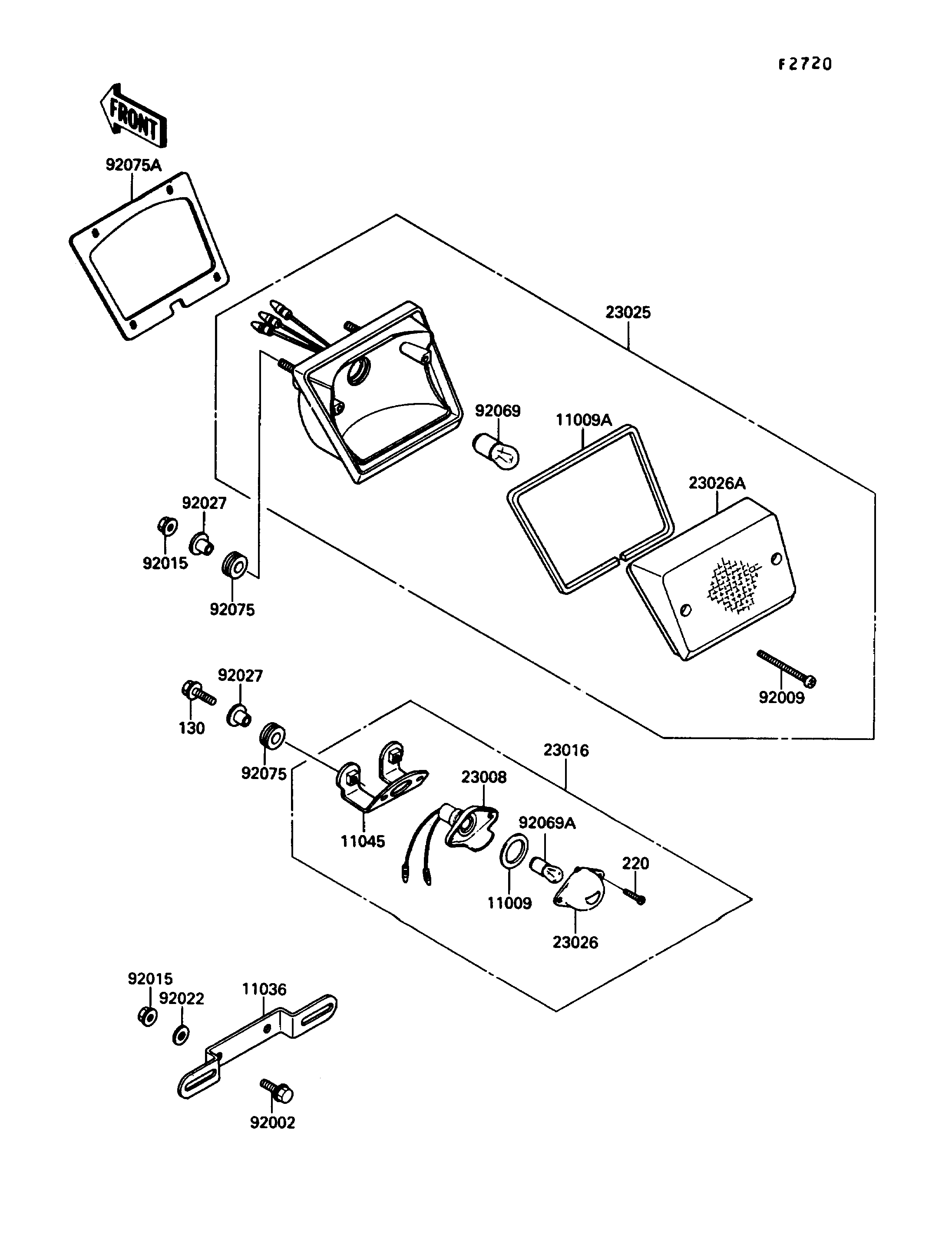

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,LICENSE PLATE LAMP | 11009 | 11009-1372 | 1 | ||
GASKET,TAIL LAMP LENS | 11009A | 11009-1636 | 1 | ||
BRACKET-A,LICENSE PLATE | 11036 | 11036-1040 | 1 | ||
BRACKET,LICENSE PLATE LAMP | 11045 | 11045-1927 | 1 | ||
SOCKET-ASSY,LICENSE PLATE LAMP | 23008 | 23008-1205 | 1 | ||
LAMP-ASSY,LICENSE PLATE | 23016 | 23016-1086 | 1 | ||
LAMP-TAIL,P.WHITE | 23025 | 23025-1159-6F | 1 | ||
LENS,LAMP | 23026 | 23026-1054 | 1 | ||
LENS,TAIL LAMP | 23026A | 23026-1086 | 1 | ||
BOLT,6X16 | 92002 | 92002-1124 | 2 | ||
SCREW,TAPPING,4X25 | 92009 | 92009-1069 | 2 | ||
NUT,FLANGED,6MM | 92015 | 92015-1367 | 4 | ||
WASHER,6.5X20X1.6 | 92022 | 92022-1557 | 2 | ||
COLLAR,L=13.1 | 92027 | 92027-251 | 4 | ||
BULB,12V 27/8W | 92069 | 92069-059 | 1 | ||
BULB,12V 8W | 92069A | 92069-1012 | 1 | ||
DAMPER | 92075 | 92075-1690 | 4 | ||
DAMPER,TAIL LAMP | 92075A | 92075-1889 | 1 | ||
BOLT-FLANGED,6X25 | 130 | 130H0625 | 2 | ||
SCREW-PAN-CROS | 220 | 220B0410 | 2 |
