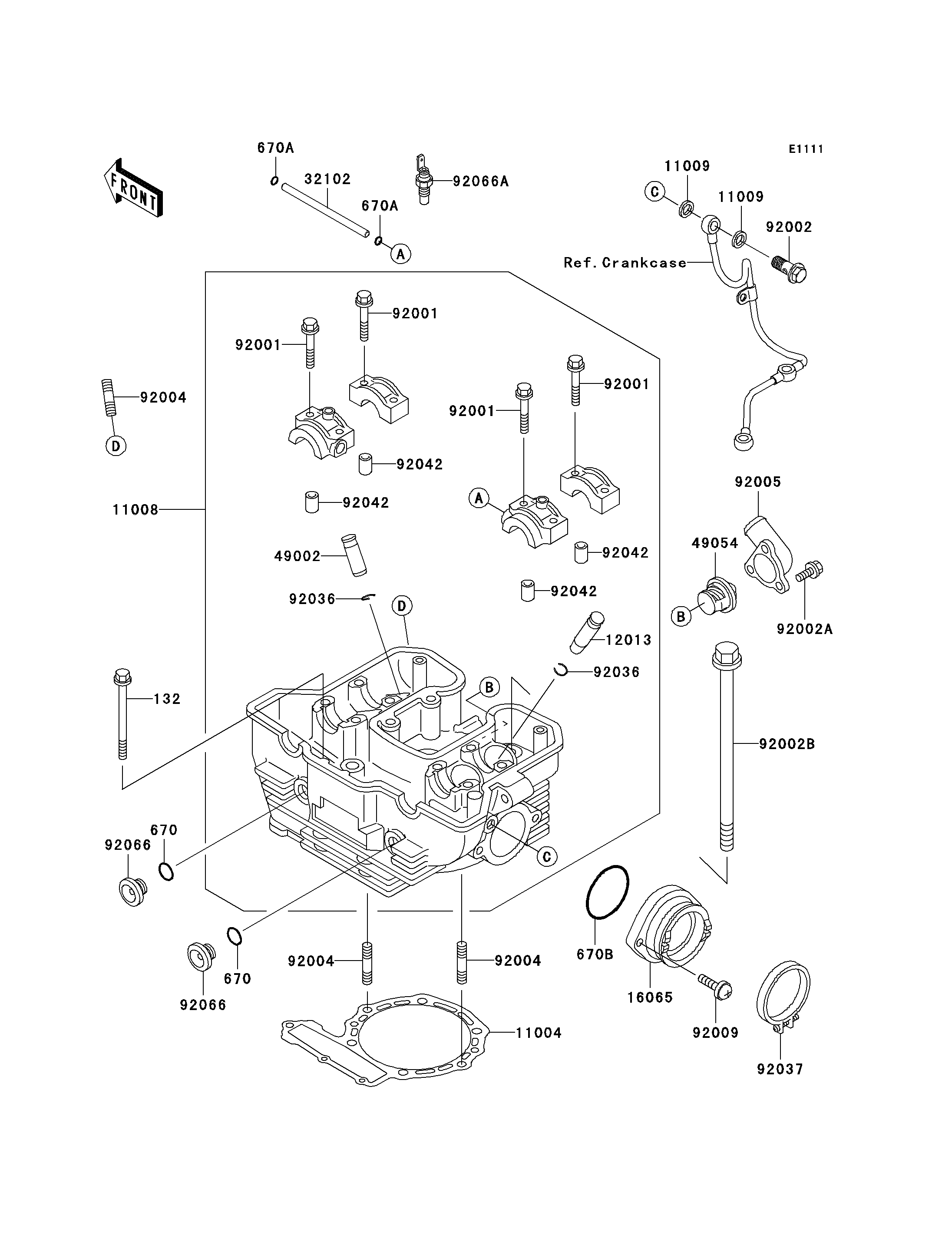

2004 KLR650 - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
132
670
670
670A
670A
670B
11004
11008
11009
11009
12013
16065
32102
49002
49054
92001
92001
92001
92001
92002
92002A
92002B
92004
92004
92004
92005
92009
92036
92036
92037
92042
92042
92042
92042
92066
92066
92066A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132H0685 2
O RING,15MM 670 670B2015 2
O RING,6MM 670A 670D1506 2
O RING,48MM 670B 670D3048 1
GASKET-HEAD 11004 11004-1158 1
HEAD-COMP-CYLINDER 11008 11008-1297 1
GASKET,10X14.5X1.5 11009 11009-1105 2
GUIDE-VALVE,INTAKE 12013 12013-009 AR
HOLDER-CARBURETOR 16065 16065-1151 1
PIPE,OIL LINE 32102 32102-1352 1
GUIDE-VALVE,EXHAUST 49002 49002-1002 AR
THERMOSTAT 49054 49054-1053 1
BOLT,FLANGED,6X38 92001 92001-1105 8
BOLT,BANJO,10X25 92002 92002-1170 1
BOLT,6X12 92002A 92002-1569 3
BOLT,10X191 92002B 92002-1874 4
STUD,8X22 92004 92004-1217 4
FITTING 92005 92005-1278 1
SCREW,6X20 92009 92009-1325 2
RING-SNAP,VALVE GUIDE 92036 92036-023 4
CLAMP,55MM 92037 92037-1486 1
PIN,DOWEL,6.3X8X14 92042 92042-007 8
PLUG 92066 92066-1158 2
PLUG,SENSOR WATER 92066A 92066-1183 1
