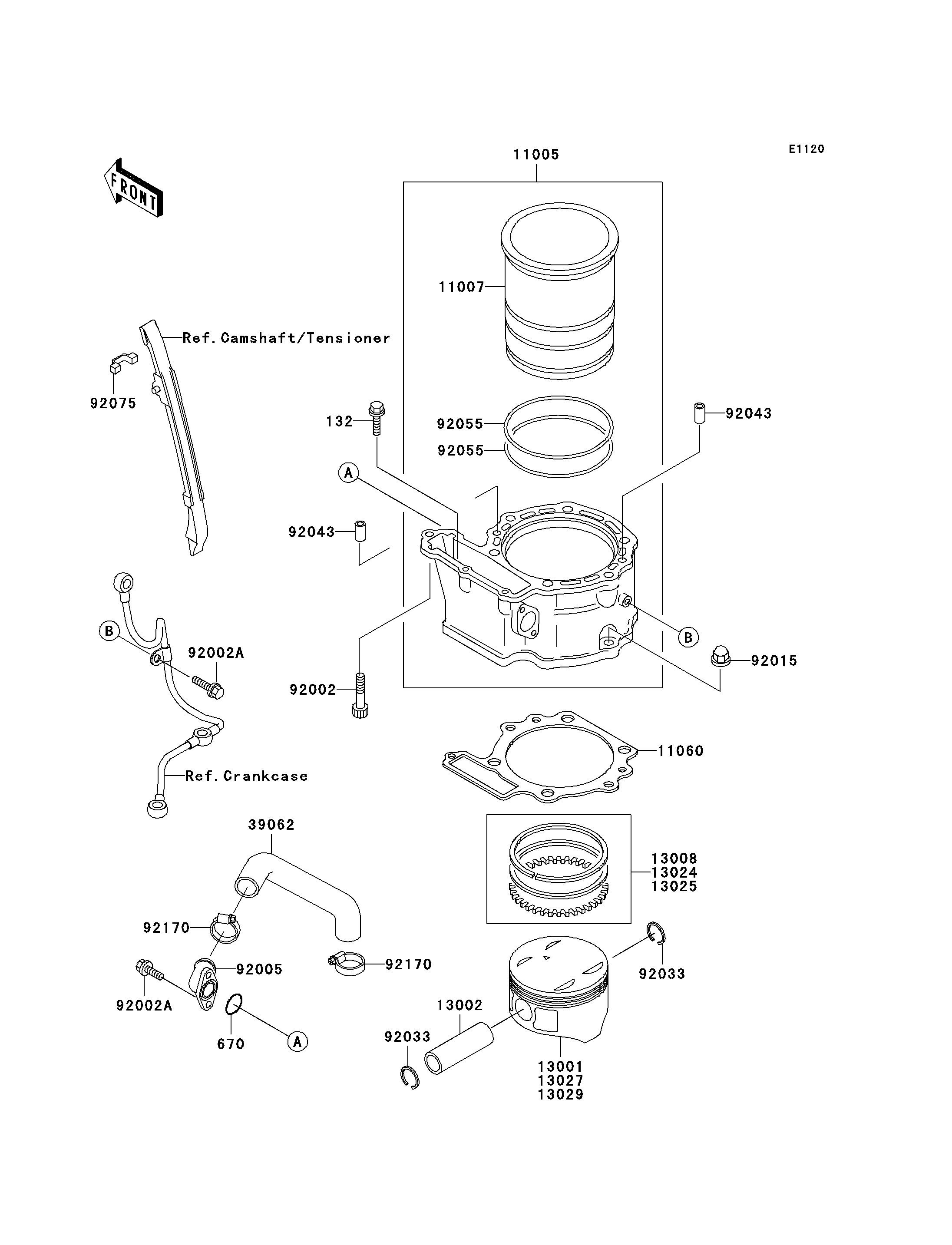

2004 KLR650 - Cylinder/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
132
670
11005
11007
11060
13001
13002
13008
13024
13025
13027
13029
39062
92002
92002A
92002A
92005
92015
92033
92033
92043
92043
92055
92055
92075
92170
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0625 1
O RING,18MM 670 670B2018 1
CYLINDER-ENGINE 11005 11005-1781 1
LINER-CYLINDER 11007 11007-1137 1
GASKET,CYLINDER BASE 11060 11060-1110 1
PISTON-ENGINE,STD 13001 13001-1284 1
PIN-PISTON 13002 13002-1101 1
RING-SET-PISTON,STD 13008 13008-1081 1
RING-SET-PISTON LL,O/S 1.00 13024 13024-1071 1
RING-SET-PISTON L,O/S 0.50 13025 13025-1078 1
PISTON-ENGINE LL,O/S 1.00 13027 13027-1153 1
PISTON-ENGINE L,O/S 0.50 13029 13029-1176 1
HOSE-COOLING,PUMP-CYLINDER 39062 39062-1216 1
BOLT,SOCKET,8X35 92002 92002-1409 1
BOLT,6X12 92002A 92002-1569 3
FITTING 92005 92005-1279 1
NUT,CAP,8MM 92015 92015-1982 4
RING-SNAP 92033 92033-1226 2
PIN,6.2X8X14 92043 92043-1263 2
RING-O,110.5X2.5 92055 92055-1371 2
DAMPER 92075 92075-1968 1
CLAMP,COOLING HOSE 92170 92170-1033 2
