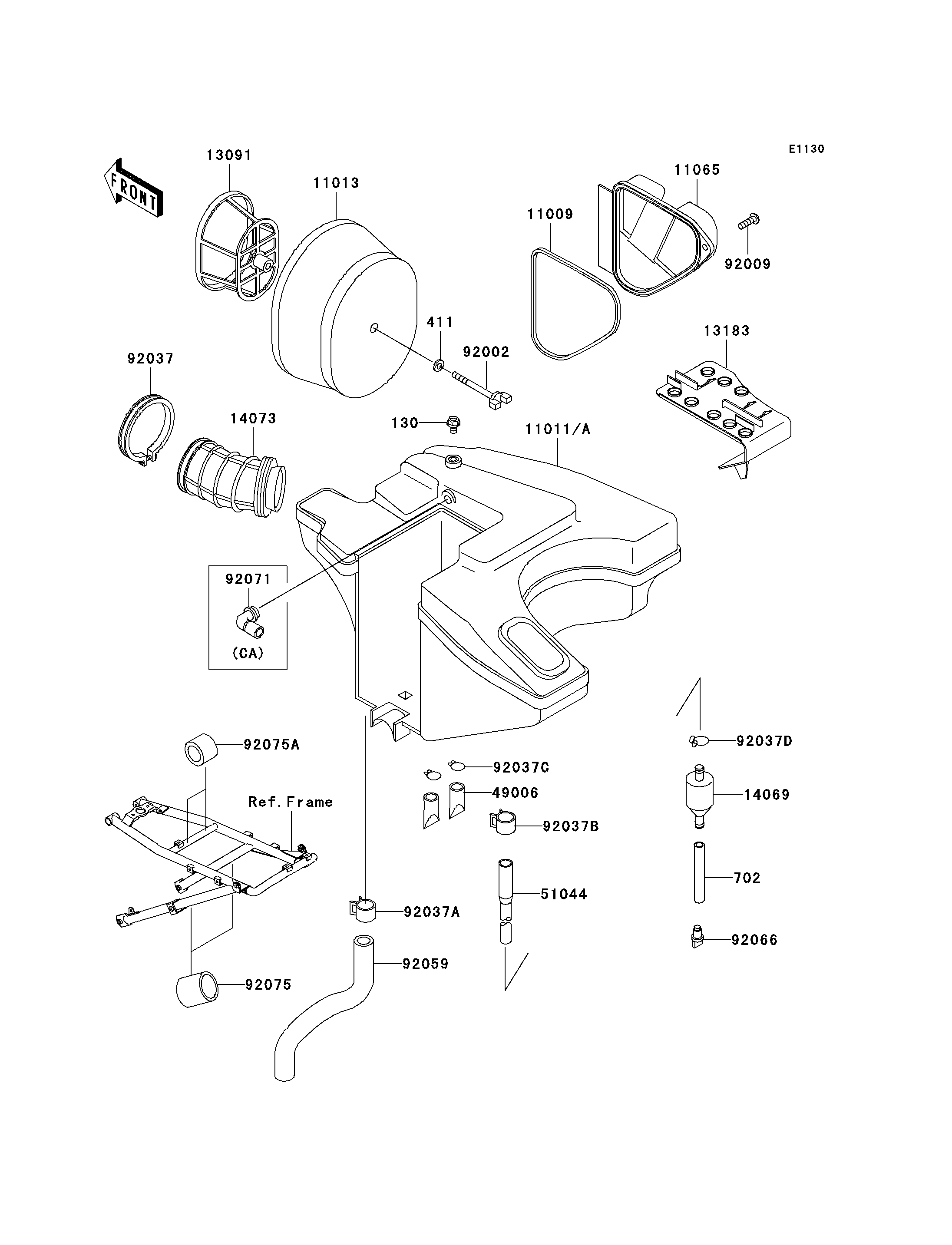

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
130
411
702
11009
11013
11065
13091
13183
14069
14073
49006
51044
92002
92009
92037
92037A
92037B
92037C
92037D
92059
92066
92075
92075A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X10 | 130 | 130G0610 | 1 | ||
WASHER-PLAIN,6MM | 411 | 411E0600 | 1 | ||
TUBE-RUBBER,7X10X70 | 702 | 702A0770 | 1 | ||
GASKET | 11009 | 11009-1649 | 1 | ||
ELEMENT-AIR FILTER | 11013 | 11013-1152 | 1 | ||
CAP,AIR FILTER | 11065 | 11065-1133 | 1 | ||
HOLDER | 13091 | 13091-1473 | 1 | ||
PLATE | 13183 | 13183-1118 | 1 | ||
BREATHER | 14069 | 14069-1051 | 1 | ||
DUCT | 14073 | 14073-1288 | 1 | ||
BOOT | 49006 | 49006-1211 | 2 | ||
TUBE-ASSY,AIR FILTER | 51044 | 51044-1105 | 1 | ||
BOLT | 92002 | 92002-1904 | 1 | ||
SCREW | 92009 | 92009-1460 | 1 | ||
CLAMP | 92037 | 92037-1859 | 1 | ||
CLAMP | 92037A | 92037-1860 | 1 | ||
CLAMP | 92037B | 92037-1861 | 1 | ||
CLAMP,14.5MM | 92037C | 92037-1900 | 2 | ||
CLAMP,TUBE | 92037D | 92037-1972 | 1 | ||
TUBE | 92059 | 92059-1774 | 1 | ||
PLUG,DRAIN | 92066 | 92066-1211 | 1 | ||
DAMPER,25X31X30 | 92075 | 92075-1906 | 2 | ||
DAMPER,18X27X20 | 92075A | 92075-1907 | 2 | ||
CASE-AIR FILTER | 11011 | 11011-1457 | 1 | CNUS | |
CASE-AIR FILTER | 11011A | 11011-1458 | 1 | CA | |
GROMMET,AIR FILTER | 92071 | 92071-1147 | 1 | CA |
BOLT-FLANGED,6X10 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-PLAIN,6MM | |
REF # | 411 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-RUBBER,7X10X70 | |
REF # | 702 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ELEMENT-AIR FILTER | |
REF # | 11013 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP,AIR FILTER | |
REF # | 11065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13183 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BREATHER | |
REF # | 14069 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUCT | |
REF # | 14073 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE-ASSY,AIR FILTER | |
REF # | 51044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,14.5MM | |
REF # | 92037C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,DRAIN | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,25X31X30 | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,18X27X20 | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CASE-AIR FILTER | |
REF # | 11011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CNUS |
REMARKS |
CASE-AIR FILTER | |
REF # | 11011A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
GROMMET,AIR FILTER | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
