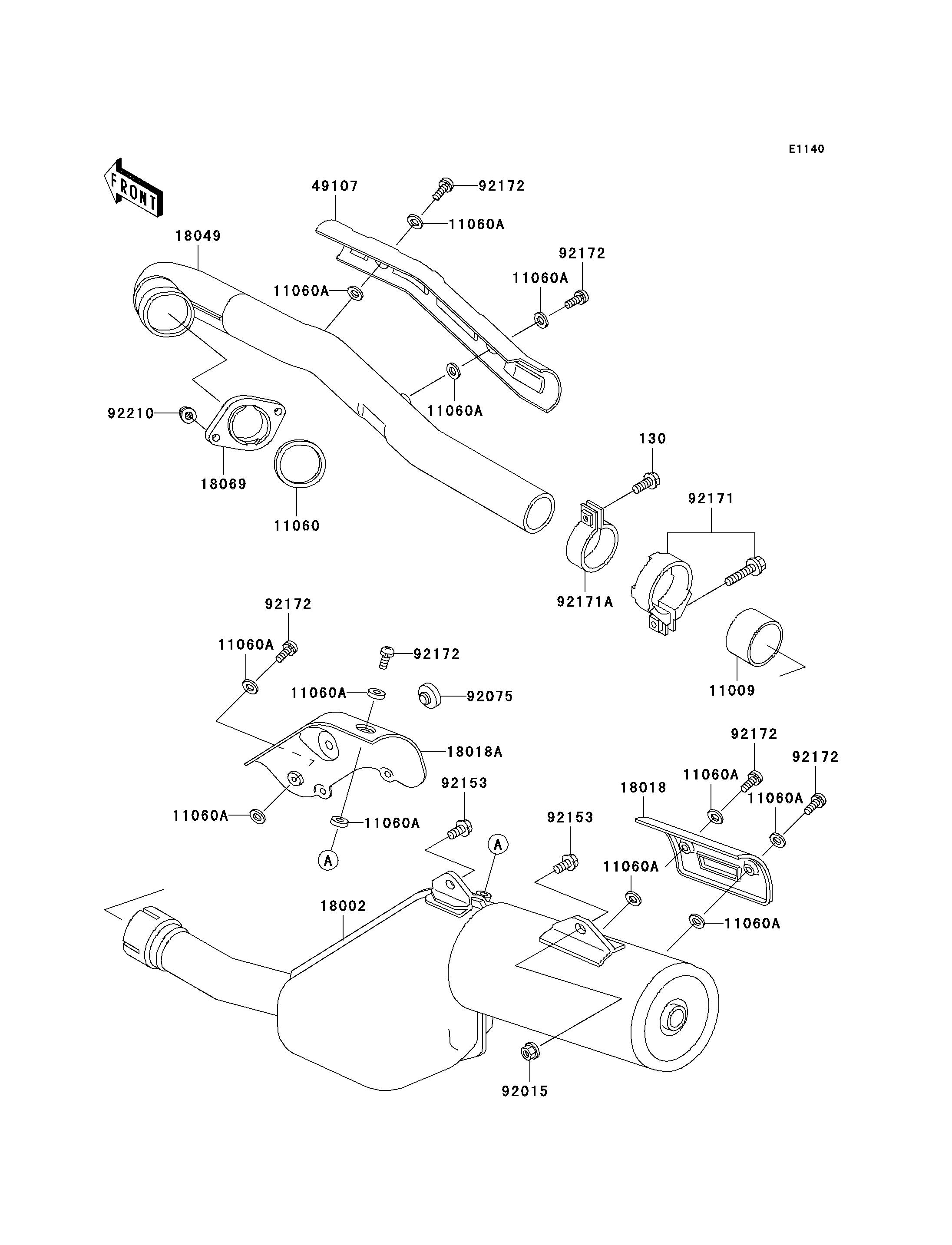

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
130
11009
11060
11060A
11060A
11060A
11060A
11060A
11060A
11060A
11060A
11060A
11060A
11060A
11060A
18002
18018
18018A
18049
18069
49107
92015
92075
92153
92153
92171
92171A
92172
92172
92172
92172
92172
92172
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED | 130 | 130Y0820 | 1 | ||
| GASKET,EXHAUST PIPE CONNECTING | 11009 | 11009-1666 | 1 | ||
| GASKET,EXHAUST PIPE HOLDER | 11060 | 11060-1108 | 1 | ||
| GASKET,6.2X11.5X1.5 | 11060A | 11060-1109 | 12 | ||
| BODY-COMP-MUFFLER | 18002 | 18002-1887 | 1 | ||
| PLATE-HEAT GUARD | 18018 | 18018-1053 | 1 | ||
| PLATE-HEAT GUARD | 18018A | 18018-1072 | 1 | ||
| PIPE-EXHAUST | 18049 | 18049-1460 | 1 | ||
| HOLDER-EXHAUST PIPE | 18069 | 18069-1063 | 1 | ||
| COVER-EXHAUST PIPE,FR | 49107 | 49107-1100 | 1 | ||
| NUT,8MM | 92015 | 92015-1402 | 1 | ||
| DAMPER | 92075 | 92075-005 | 2 | ||
| BOLT,8X16 | 92153 | 92153-0465 | 2 | ||
| CLAMP | 92171 | 92171-0139 | 1 | ||
| CLAMP | 92171A | 92171-0140 | 1 | ||
| SCREW,6X10 | 92172 | 92172-0097 | 6 | ||
| NUT,CAP,8MM | 92210 | 92210-1132 | 2 |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE CONNECTING | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE HOLDER | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,6.2X11.5X1.5 | |
| REF # | 11060A |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| BODY-COMP-MUFFLER | |
| REF # | 18002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-HEAT GUARD | |
| REF # | 18018 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-HEAT GUARD | |
| REF # | 18018A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-EXHAUST | |
| REF # | 18049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-EXHAUST PIPE | |
| REF # | 18069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,FR | |
| REF # | 49107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X16 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X10 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,8MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
