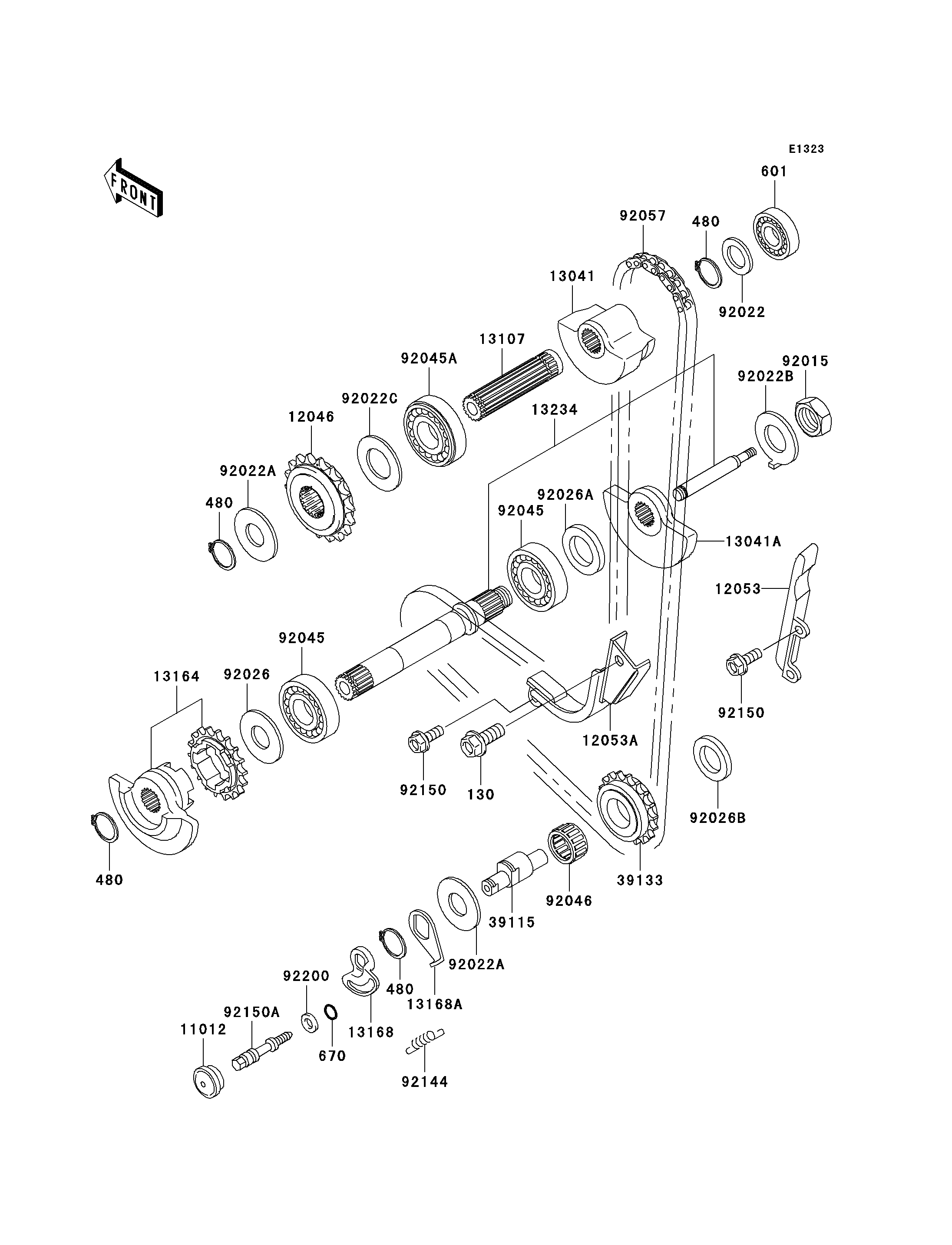

2004 KLR650 - Balancer

DOWNLOAD PDF
SELECT A NEW PART
130
480
480
480
480
601
670
11012
12046
12053
12053A
13041
13041A
13107
13164
13168
13168A
13234
39115
39133
92015
92022
92022A
92022A
92022B
92022C
92026
92026A
92026B
92045
92045
92045A
92046
92057
92144
92150
92150
92150A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X20 130 130G0820 1
CIRCLIP-TYPE-C,20MM 480 480J2000 4
BEARING-BALL,#6004 601 601A6004 1
O RING,7MM 670 670B1507 1
CAP 11012 11012-1369 1
SPROCKET,BALANCER,18T 12046 12046-1165 1
GUIDE-CHAIN,RR 12053 12053-1111 1
GUIDE-CHAIN,FR 12053A 12053-1175 1
BALANCER,RR 13041 13041-1053 1
BALANCER,FR,RH 13041A 13041-1060 1
SHAFT,BALANCER,RR 13107 13107-1104 1
BALANCER-COMP,FR,LH 13164 13164-1007 1
LEVER,IDLER SHAFT 13168 13168-0046 1
LEVER 13168A 13168-1238 1
SHAFT-COMP,BALANCER,FR 13234 13234-1058 1
SHAFT-IDLER 39115 39115-1077 1
SPROCKET-IDLER,IDLER 39133 39133-1060 1
NUT,16MM 92015 92015-1477 1
WASHER,20.5X30X1,STEEL 92022 92022-112 1
WASHER,20.3X36X1.5 92022A 92022-1489 2
WASHER 92022B 92022-1651 1
WASHER,20.2X36X2 92022C 92022-1880 1
SPACER,20.2X36X3 92026 92026-1208 1
SPACER,20.2X30X5 92026A 92026-1245 1
SPACER 92026B 92026-1462 1
BEARING-BALL,#6204 92045 92045-1032 2
BEARING-BALL,SX0415 92045A 92045-1188 1
BEARING-NEEDLE 92046 92046-1234 1
CHAIN,BALANCER,BF06HX70L 92057 92057-1158 1
SPRING,IDLER SHAFT 92144 92144-1860 1
BOLT,6X16 92150 92150-1394 3
BOLT,IDLER LEVER 92150A 92150-1923 1
WASHER,6.5X12X2.0 92200 92200-1263 1
