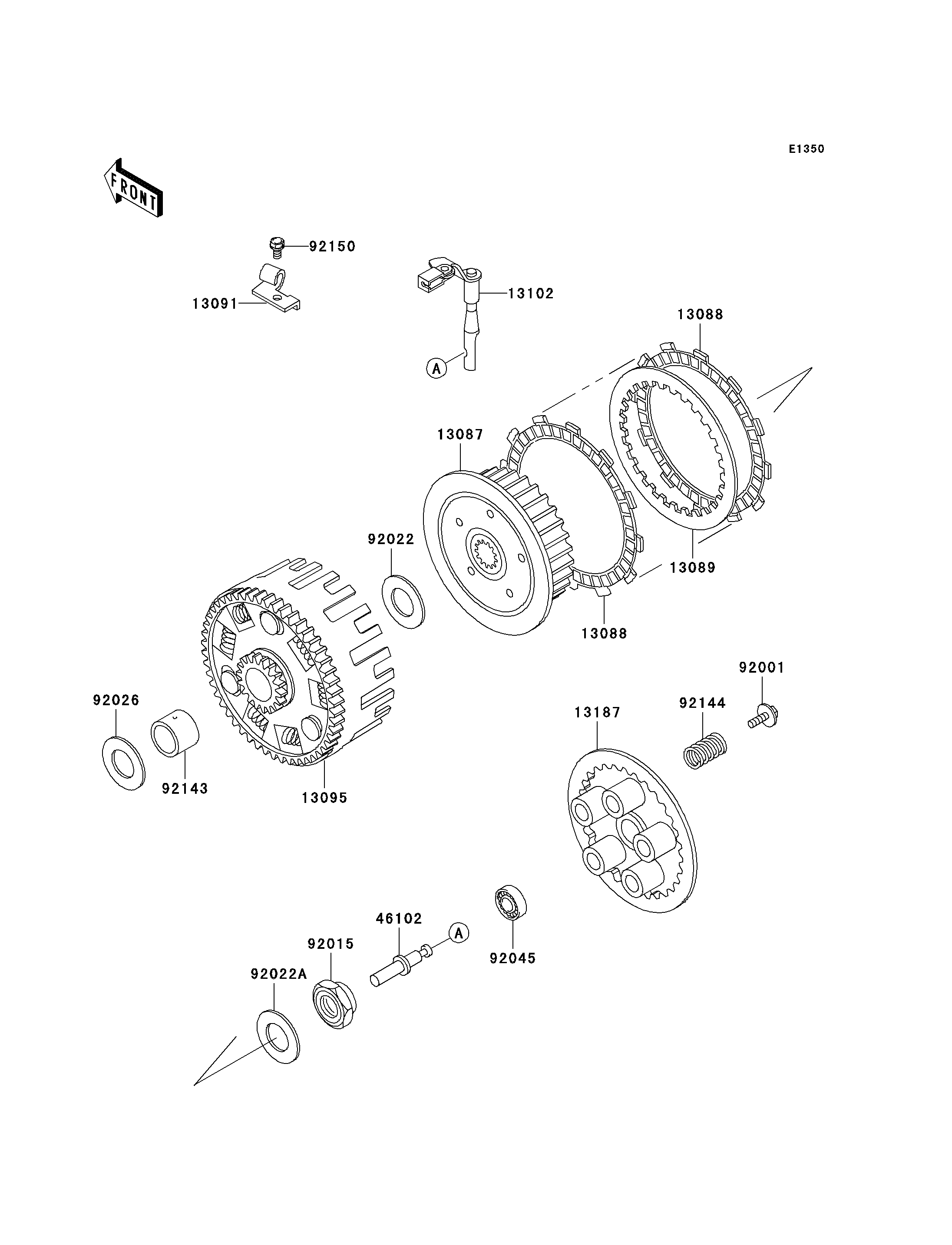

Parts Diagrams |
13087
13088
13088
13089
13091
13095
13102
13187
46102
92001
92015
92022
92022A
92026
92045
92143
92144
92150
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HUB-CLUTCH | 13087 | 13087-1164 | 1 | ||
| PLATE-FRICTION | 13088 | 13088-040 | 8 | ||
| PLATE-CLUTCH,T=2.0 | 13089 | 13089-1068 | 7 | ||
| HOLDER,CLUTCH CABLE | 13091 | 13091-1257 | 1 | ||
| HOUSING-COMP-CLUTCH | 13095 | 13095-1311 | 1 | ||
| RELEASE-COMP-CLUTCH | 13102 | 13102-1128 | 1 | ||
| PLATE-CLUTCH OPERATING | 13187 | 13187-1080 | 1 | ||
| ROD,CLUTCH | 46102 | 46102-1030 | 1 | ||
| BOLT,FLANGED,6X18 | 92001 | 92001-1066 | 5 | ||
| NUT,20MM | 92015 | 92015-1555 | 1 | ||
| WASHER,25.5X52.6X2 | 92022 | 92022-1476 | 1 | ||
| WASHER | 92022A | 92022-1868 | 1 | ||
| SPACER,25.1X38X4 | 92026 | 92026-1206 | 1 | ||
| BEARING-BALL | 92045 | 92045-1408 | 1 | ||
| COLLAR | 92143 | 92143-1769 | 1 | ||
| SPRING,CLUTCH | 92144 | 92144-1559 | 5 | ||
| BOLT,6X12 | 92150 | 92150-1965 | 1 |
