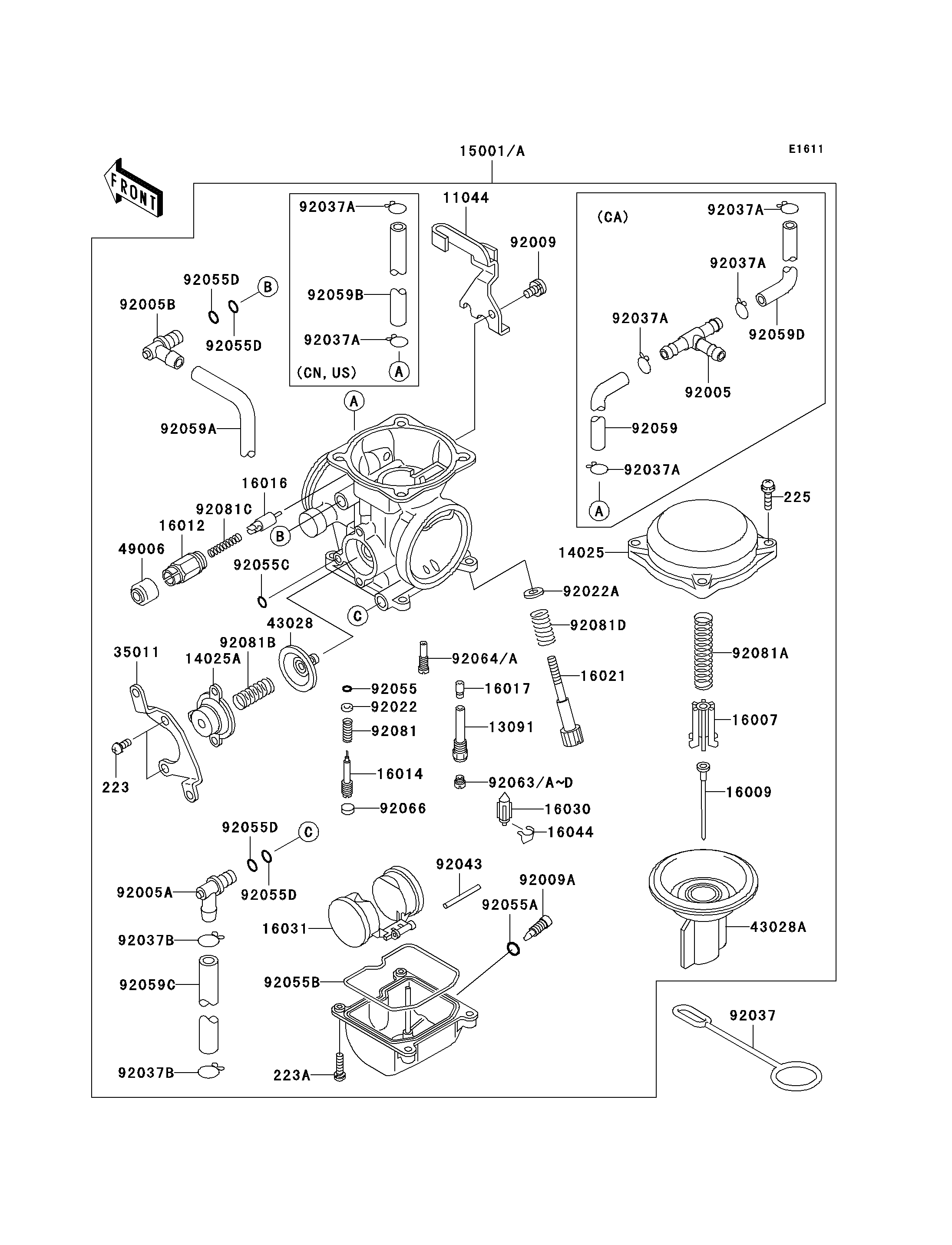

2004 KLR650 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11044
11044
13091
13091
14025
14025
14025A
14025A
16007
16007
16009
16009
16012
16012
16014
16014
16016
16016
16017
16017
16021
16021
16030
16030
16031
16031
16044
16044
35011
35011
43028
43028
43028A
43028A
49006
49006
92005A
92005A
92005B
92005B
92009
92009
92009A
92009A
92022
92022
92022A
92022A
92037
92037
92037B
92037B
92037B
92037B
223
223
223A
223A
225
225
92043
92043
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92055D
92055D
92055D
92055D
92055D
92055D
92055D
92055D
92059A
92059A
92059C
92059C
92063
92063
92063A
92063A
92063B
92063B
92063C
92063C
92063D
92063D
92064
92064
92064A
92064A
92066
92066
92081
92081
92081A
92081A
92081B
92081B
92081C
92081C
92081D
92081D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,THROTTLE CABLE 11044 11044-1353 1
HOLDER,NEEDLE JET 13091 13091-1425 1
COVER,MIXING CHAMBER 14025 14025-1890 1
COVER,AIR CUT VALVE 14025A 14025-1903 1
SEAT-SPRING,DIAPHRAGM VALVE 16007 16007-1113 1
NEEDLE-JET,N31R 16009 16009-1344 1
CAP-STARTER PLUNGER 16012 16012-1055 1
SCREW-PILOT AIR 16014 16014-1053 1
PLUNGER 16016 16016-1057 1
JET-NEEDLE,#6 16017 16017-1254 1
SCREW-THROTTLE STOP 16021 16021-1109 1
VALVE-FLOAT 16030 16030-1057 1
FLOAT 16031 16031-1056 1
CLAMP,FLOAT VALVE 16044 16044-007 1
STAY,AIR CUT VALVE 35011 35011-1232 1
DIAPHRAGM,5.9MM,AIR CUT VALVE 43028 43028-1053 1
DIAPHRAGM,VALVE 43028A 43028-1062 1
BOOT,STARTER PLUNGER 49006 49006-1165 1
FITTING,L-TYPE 92005A 92005-1120 1
FITTING,L-TYPE 92005B 92005-1144 1
SCREW,5X10 92009 92009-1365 1
SCREW,DRAIN,M6X0.75 92009A 92009-1551 1
WASHER,PLAIN 92022 92022-1003 1
WASHER,THROTTLE STOP SCREW 92022A 92022-1587 1
CLAMP,OVERFLOW TUBE 92037 92037-134 1
CLAMP,TUBE 92037B 92037-1531 2
SCREW-PAN-WS-CROS 223 223C0410 2
SCREW-PAN-WS-CROS 223A 223C0416 4
SCREW-PAN-WSP-CROS 225 225C0418 4
PIN,FLOAT 92043 92043-1207 1
RING-O,PILOT ADJUST 92055 92055-1002 1
RING-O 92055A 92055-1053 1
RING-O,FLOAT CHAMBER 92055B 92055-1222 1
RING-O 92055C 92055-1245 1
RING-O 92055D 92055-1246 4
TUBE,6.5X9.5X430 92059A 92059-1727 1
TUBE,6.5X11.5X170 92059C 92059-1837 1
JET-MAIN,#142 92063 92063-1016 1 (OFF ROAD USE ONLY)
JET-MAIN,#145 92063A 92063-1017 1 (OFF ROAD USE ONLY)
JET-MAIN,#148 92063B 92063-1324 1
JET-MAIN,#150 92063C 92063-1330 1 (OFF ROAD USE ONLY)
JET-MAIN,#152 92063D 92063-1331 1 (OFF ROAD USE ONLY)
JET-PILOT,#38 92064 92064-1050 1 (OPTION)
JET-PILOT,#40 92064A 92064-1108 1
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 1
SPRING,PILOT ADJUST SCREW 92081 92081-1002 1
SPRING,DIAPHRAGM VALVE 92081A 92081-1718 1
SPRING,AIR CUT VALVE 92081B 92081-1719 1
SPRING,PLUNGER 92081C 92081-1720 1
SPRING,THROTTLE STOP SCREW 92081D 92081-1721 1
CARBURETOR-ASSY 15001 15001-1327 1 CNUS
CARBURETOR-ASSY 15001A 15001-1368 1 CA
FITTING,FUEL,T-TYPE 92005 92005-1112 1 CA
CLAMP,TUBE 92037A 92037-1477 2 CNUS
CLAMP,TUBE 92037A 92037-1477 4 CA
TUBE,5X9X120 92059 92059-1713 1 CA
TUBE,5X9X220 92059B 92059-1836 1 CNUS
TUBE,5X9X100 92059D 92059-1839 1 CA
