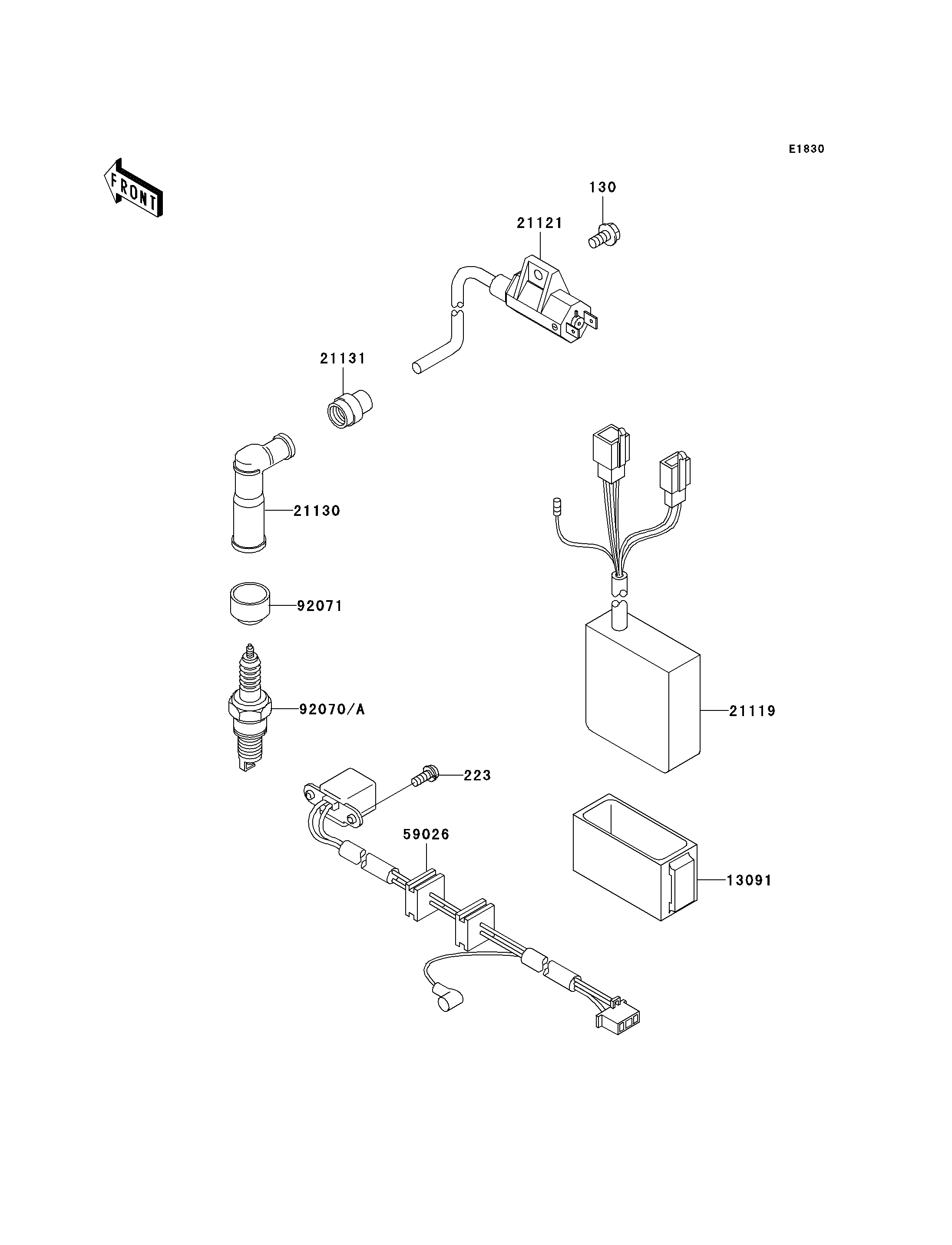

130
223
13091
21119
21121
21130
21131
59026
92070
92070A
92071
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130L0612 1
SCREW-PAN-WS-CROS 223 223B0514 2
HOLDER,IGNITER 13091 13091-1271 1
IGNITER 21119 21119-1272 1
COIL-IGNITION 21121 21121-1152 1
CAP-SPARK PLUG 21130 21130-1002 1
GROMMET,HIGH TENSION 21131 21131-005 1
COIL-PULSING 59026 59026-1087 1
PLUG-SPARK,DPR8EA-9(NGK) 92070 92070-1065 1
PLUG-SPARK,X24EPR-U9(ND) 92070A 1 (LOCAL PROCUREMENT ITEM)
GROMMET,PLUG CAP 92071 92071-1124 1
