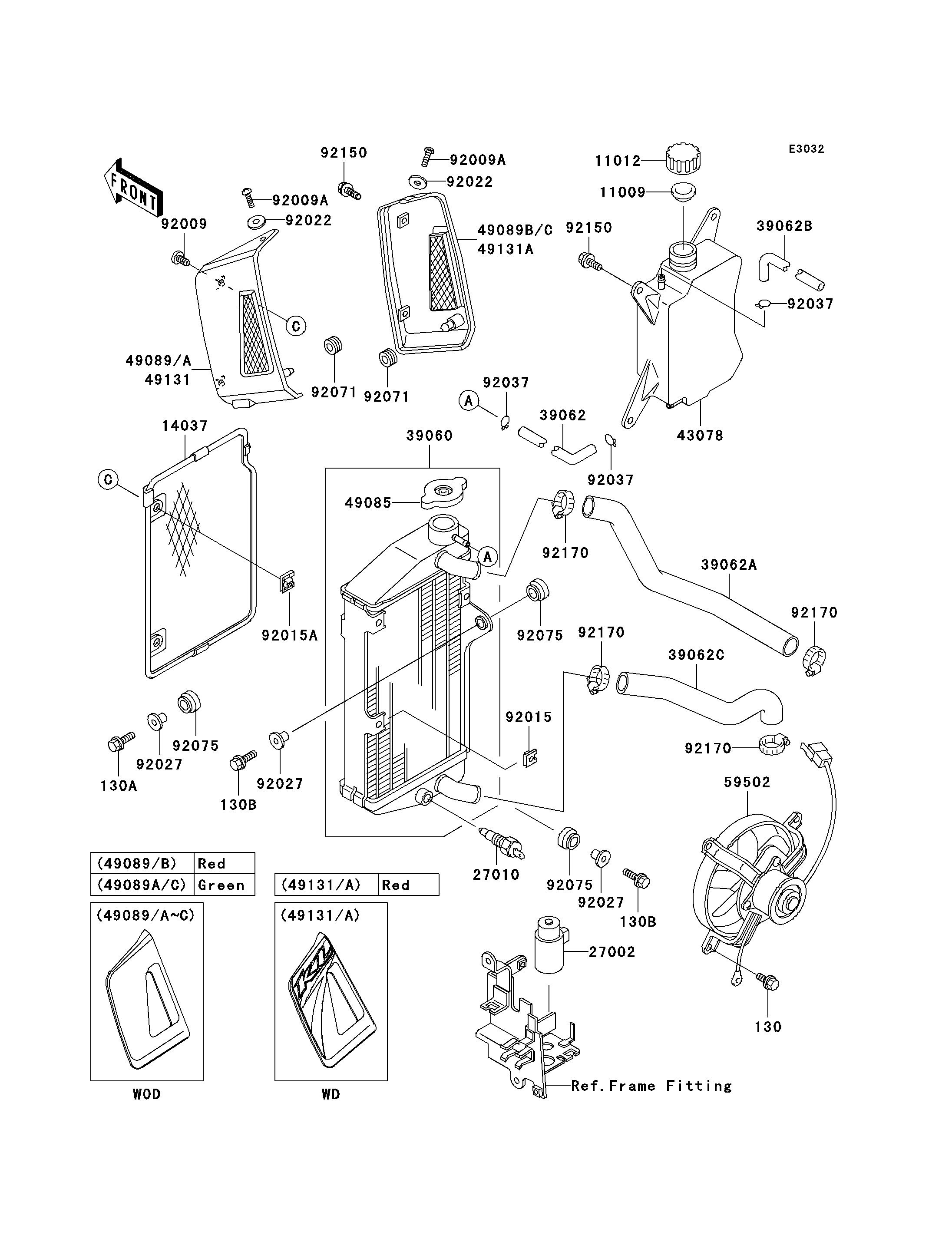

2004 KLR650 - Radiator

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
130B
11009
11012
14037
27002
27010
39060
39062
39062A
39062B
39062C
43078
49085
49089
49089B
59502
92009
92009A
92009A
92015
92015A
92022
92022
92027
92027
92027
92037
92037
92037
92071
92071
92075
92075
92075
92150
92150
92170
92170
92170
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130L0612 3
BOLT-FLANGED 130A 130L0620 1
BOLT-FLANGED 130B 130L0625 2
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
SCREEN 14037 14037-1208 1
RELAY-ASSY 27002 27002-1051 1
SWITCH,FAN 27010 27010-1167 1
RADIATOR 39060 39060-1074 1
HOSE-COOLING 39062 39062-1125 1
HOSE-COOLING,HEAD-RADIATOR 39062A 39062-1217 1
HOSE-COOLING,RESERVOIR 39062B 39062-1220 1
HOSE-COOLING,RADIATOR-PUMP 39062C 39062-1243 1
RESERVOIR 43078 43078-1083 1
CAP-ASSY-PRESSURE 49085 49085-1066 1
SHROUD-ENGINE,LH,A.RED 49089 49089-1073-260 1
SHROUD-ENGINE,RH,A.RED 49089B 49089-1074-260 1
FAN-ASSY 59502 59502-1082 1
SCREW,6X12 92009 92009-1480 2
SCREW,5X14 92009A 92009-1653 2
NUT 92015 92015-1487 3
NUT,6MM 92015A 92015-1758 2
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 2
COLLAR,L=14.1 92027 92027-1920 3
CLAMP,TUBE 92037 92037-147 3
GROMMET 92071 92071-056 2
DAMPER 92075 92075-1352 3
BOLT,FLANGED,6X16 92150 92150-1506 4
CLAMP,COOLING HOSE 92170 92170-1033 4
