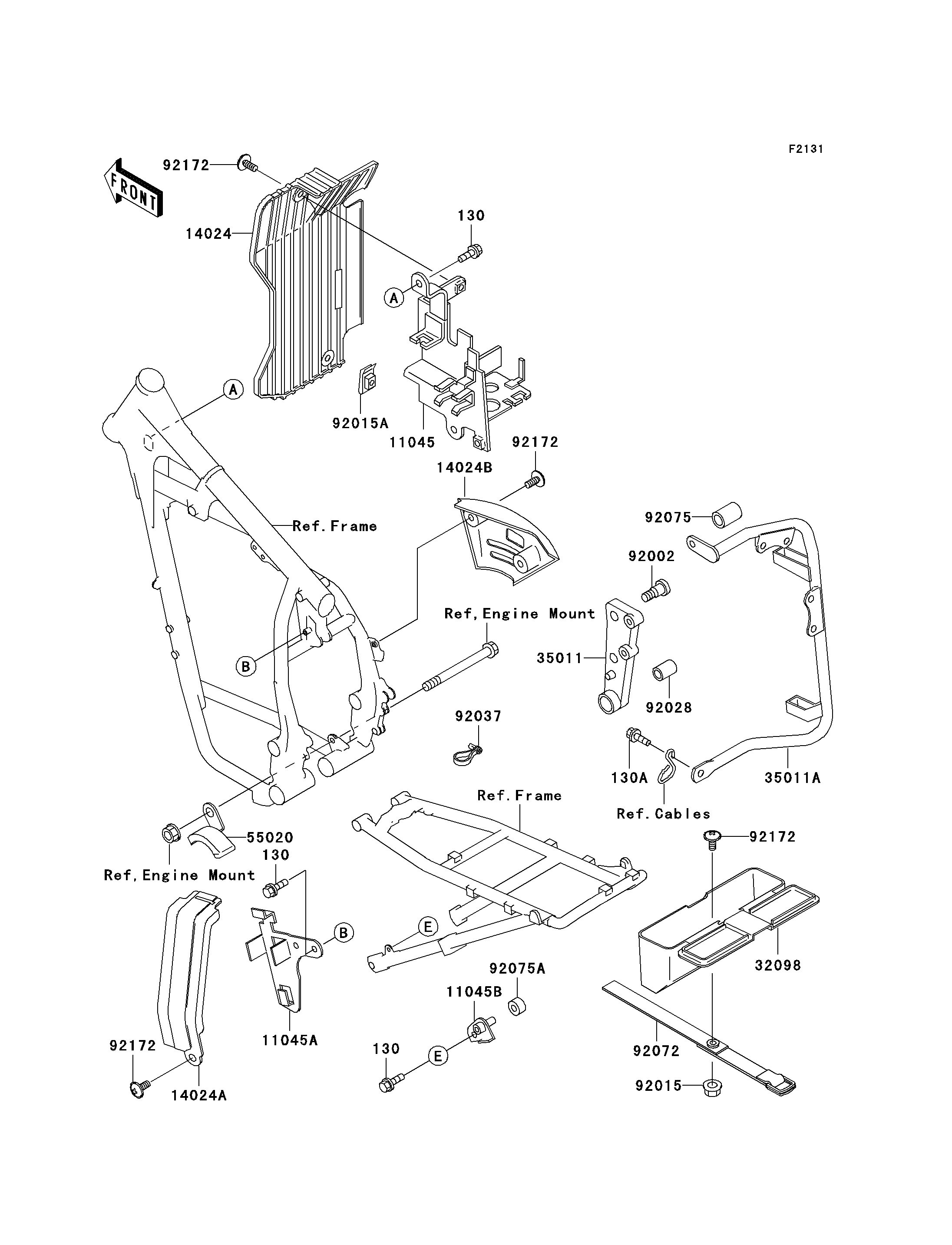

Parts Diagrams |
130
130
130
130A
11045
11045A
11045B
14024
14024A
14024B
32098
35011
35011A
55020
92002
92015
92015A
92028
92037
92072
92075
92075A
92172
92172
92172
92172
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130J0612 | 4 | ||
BOLT-FLANGED,6X14,BLACK | 130A | 130J0614 | 2 | ||
BRACKET,ELECTRIC,RH | 11045 | 11045-1358 | 1 | ||
BRACKET,ELECTRIC,LH | 11045A | 11045-1359 | 1 | ||
BRACKET | 11045B | 11045-1360 | 1 | ||
COVER,FRONT RESERVOIR | 14024 | 14024-1372 | 1 | ||
COVER,SIDE STAND SWITCH | 14024A | 14024-1373 | 1 | ||
COVER,RESERVOIR TANK | 14024B | 14024-1470 | 1 | ||
CASE-TOOL,F.BLACK | 32098 | 32098-1074-6Z | 1 | ||
STAY | 35011 | 35011-1327 | 1 | ||
STAY,HORN&RESERVOIR TANK | 35011A | 35011-1370 | 1 | ||
GUARD,CHAIN | 55020 | 55020-1266 | 1 | ||
BOLT,SOCKET,8X23.5 | 92002 | 92002-1598 | 2 | ||
NUT,FLANGED,6MM,BLACK | 92015 | 92015-1233 | 1 | ||
NUT,6MM | 92015A | 92015-1602 | 1 | ||
BUSHING | 92028 | 92028-1259 | 1 | ||
CLAMP,SPEED,L=80.5 | 92037 | 92037-1903 | 1 | ||
BAND,TOOL CASE | 92072 | 92072-1219 | 1 | ||
DAMPER | 92075 | 92075-1941 | 1 | ||
DAMPER | 92075A | 92075-243 | 1 | ||
SCREW,6X14 | 92172 | 92172-0004 | 7 |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X14,BLACK | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET,ELECTRIC,RH | |
REF # | 11045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,ELECTRIC,LH | |
REF # | 11045A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11045B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,FRONT RESERVOIR | |
REF # | 14024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,SIDE STAND SWITCH | |
REF # | 14024A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,RESERVOIR TANK | |
REF # | 14024B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE-TOOL,F.BLACK | |
REF # | 32098 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY | |
REF # | 35011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY,HORN&RESERVOIR TANK | |
REF # | 35011A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD,CHAIN | |
REF # | 55020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X23.5 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM,BLACK | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,SPEED,L=80.5 | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,TOOL CASE | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X14 | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
