Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
41009
41009A
41022
41022A
41023
41023A
41025A
41025B
41029
41029A
41029B
41029C
41032A
41032A
41032A
41032A
41075
41075
41075A
41075A
41075B
41075B

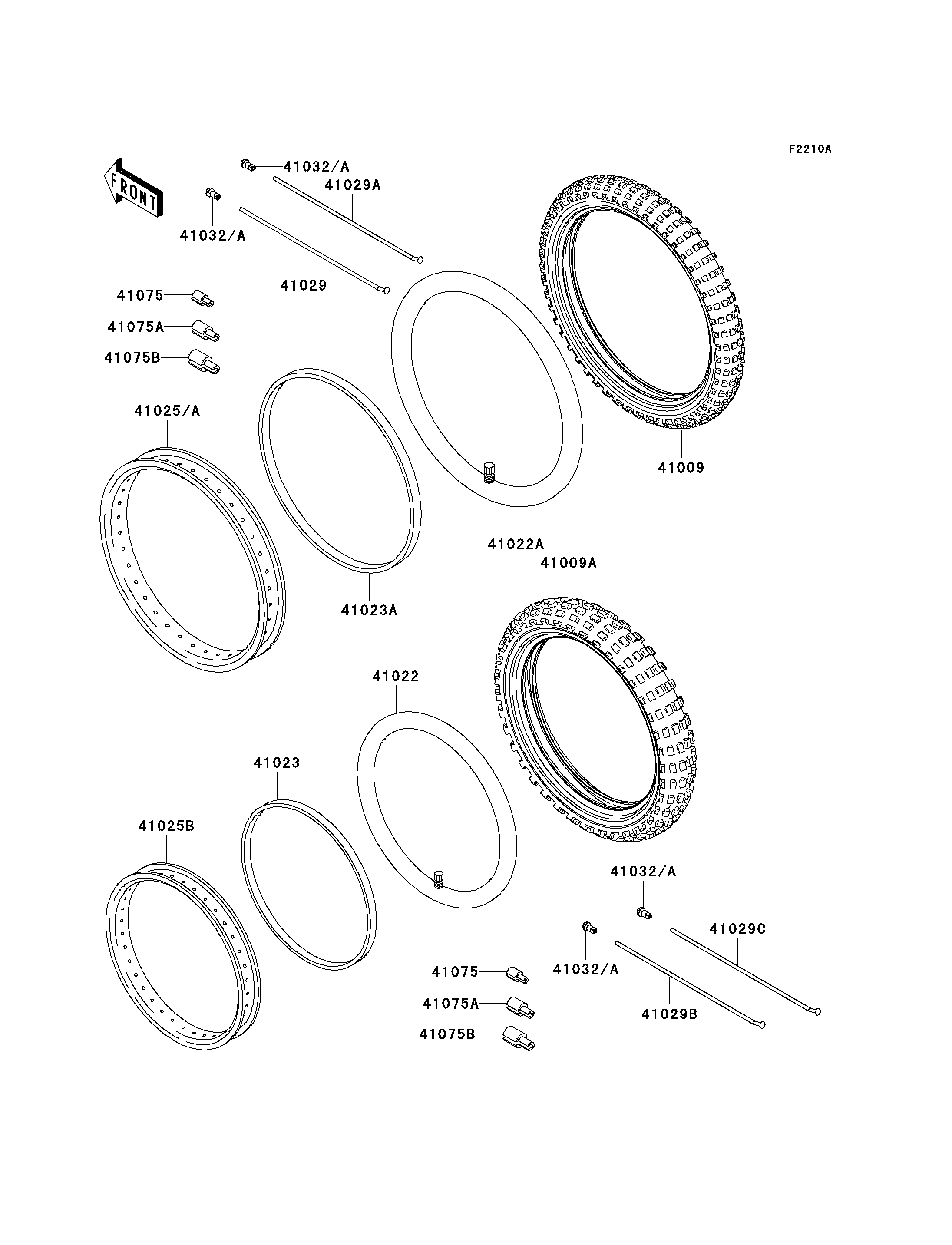

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE,FR,90/90-21 54S,K750(D) | 41009 | 41009-0001 | 1 | ||
| TIRE,RR,130/80-17 65S,K750(D) | 41009A | 41009-0002 | 1 | ||
| TUBE-TIRE,130/80-17(D) | 41022 | 41022-0003 | 1 | ||
| TUBE-TIRE,80/100-21(D) | 41022A | 41022-1244 | 1 | ||
| BAND-RIM,17XWM/MT2.15-2.50(D) | 41023 | 41023-0001 | 1 | ||
| BAND-RIM,21XWM1.60-1.85(D) | 41023A | 41023-1144 | 1 | ||
| RIM,FR,1.60X21 | 41025A | 41025-1112 | 1 | ||
| RIM,RR,2.50X17 | 41025B | 41025-1445 | 1 | ||
| SPOKE-INNER,FR,LH,236MMX160D | 41029 | 41029-1343 | 18 | ||
| SPOKE-INNER,FR,RH,238MMX160D | 41029A | 41029-1344 | 18 | ||
| SPOKE-INNER,RR,LH,155MMX170D | 41029B | 41029-1345 | 18 | ||
| SPOKE-INNER,RR,RH,178MMX172D | 41029C | 41029-1346 | 18 | ||
| NIPPLE-SPOKE,8X9X20(+) | 41032A | 41032-1077 | 72 | ||
| BALANCER-WHEEL,10G | 41075 | 41075-1007 | AR | ||
| BALANCER-WHEEL,20G | 41075A | 41075-1008 | AR | ||
| BALANCER-WHEEL,30G | 41075B | 41075-1009 | AR |
