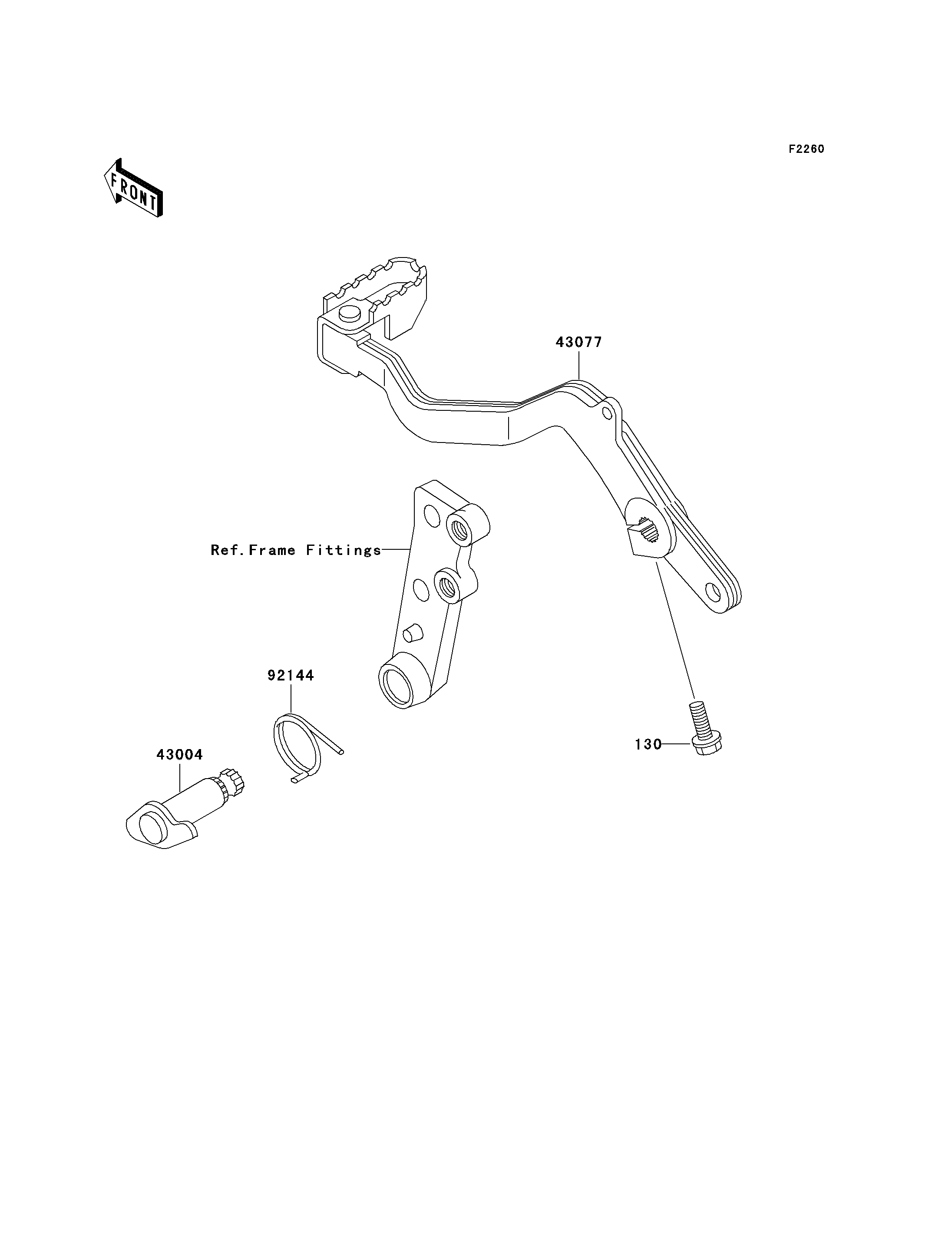

130
43004
43077
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130H0622 1
SHAFT-BRAKE 43004 43004-1120 1
LEVER-ASSY-BRAKE,PEDAL 43077 43077-1065 1
SPRING,BRAKE PEDAL RETURN 92144 92144-1082 1
