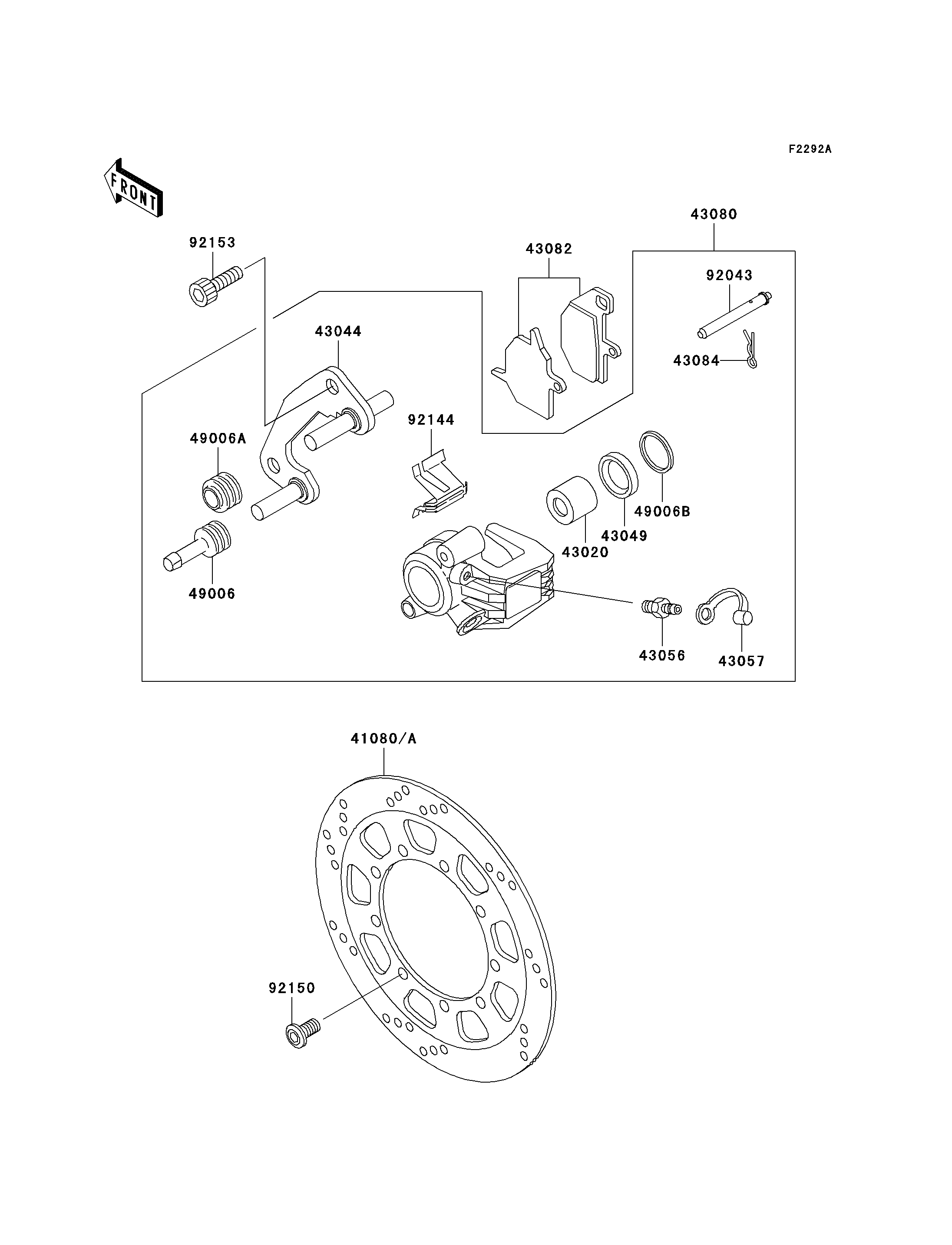

41080A
43020
43044
43049
43056
43057
43080
43082
43084
49006
49006A
49006B
92043
92144
92150
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FR,SILVER 41080A 41080-1178 1
PISTON-COMP-BRAKE 43020 43020-1097 1
HOLDER-COMP-CALIPER,FR,LH 43044 43044-1074 1
PACKING,PISTON SEAL 43049 43049-1097 1
BREATHER-BRAKE 43056 43056-1054 1
CAP-BREATHER 43057 43057-003 1
CALIPER-SUB-ASSY,FR,LH,BLACK 43080 43080-5100-DJ 1
PAD-ASSY-BRAKE 43082 43082-1078 1
CLAMP,PAD 43084 43084-003 1
BOOT,CALIPER 49006 49006-1054 1
BOOT,CALIPER 49006A 49006-1055 1
BOOT,PISTON SEAL 49006B 49006-1212 1
PIN,PAD 92043 92043-1356 1
SPRING,PAD 92144 92144-1117 1
BOLT,DISC PLATE,8X15 92150 92150-1852 9
BOLT,SOCKET,8X25 92153 92153-0512 2
