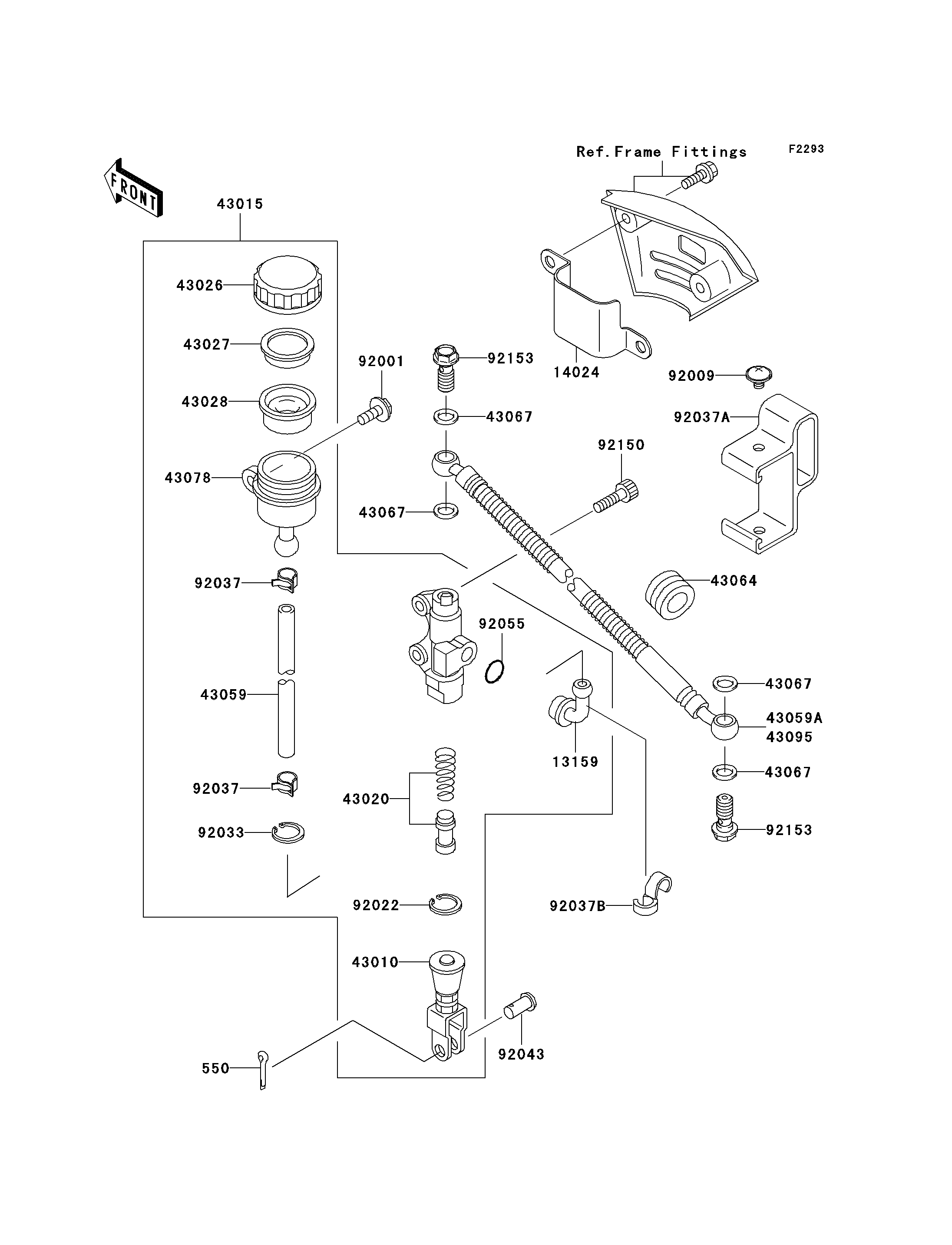

2004 KLR650 - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
550
13159
14024
43010
43015
43020
43026
43027
43028
43059
43064
43067
43067
43067
43067
43078
43095
92001
92009
92022
92033
92037
92037
92037A
92037B
92043
92055
92150
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,2.0X15 550 550D2015 1
CONNECTOR 13159 13159-1056 1
COVER,RESERVOIR TANK 14024 14024-1531 1
ROD-ASSY-BRAKE 43010 43010-1062 1
CYLINDER-ASSY-MASTER,RR 43015 43015-1365 1
PISTON-COMP-BRAKE 43020 43020-1063 1
CAP-BRAKE 43026 43026-1064 1
PLATE-DIAPHRAGM 43027 43027-1053 1
DIAPHRAGM 43028 43028-1065 1
HOSE-BRAKE 43059 43059-1408 1
GROMMET,HOSE CLAMP 43064 43064-007 1
WASHER,10.5X15X1.5 43067 43067-001 4
RESERVOIR 43078 43078-1080 1
HOSE-BRAKE,RR 43095 43095-1341 1
BOLT,W/P,6X16 92001 92001-1860 1
SCREW,6X10,WHITE 92009 92009-1286 1
WASHER,CIRCRIP 92022 92022-1601 1
RING-SNAP,20.5MM 92033 92033-1186 1
CLAMP 92037 92037-1710 2
CLAMP,HOSE 92037A 92037-1895 1
CLAMP,HOSE 92037B 92037-1914 1
PIN,8MM 92043 92043-1303 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
BOLT,SOCKET,8X30 92150 92150-1843 2
BOLT,OIL,L=23 92153 92153-0627 2
