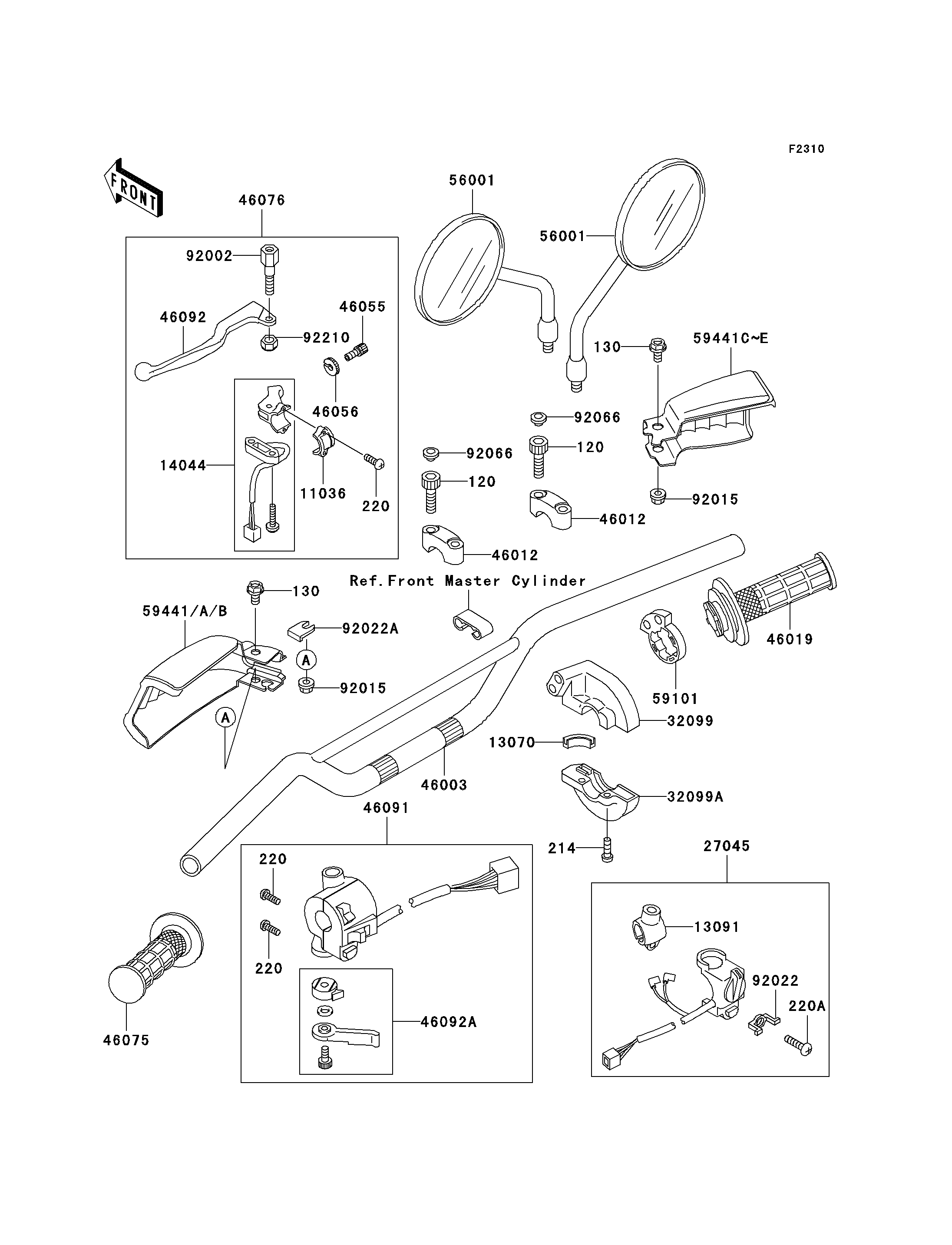

2004 KLR650 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
120
120
130
130
214
220
220
220
220A
11036
13070
13091
14044
27045
32099
32099A
46003
46012
46012
46019
46055
46056
46075
46076
46091
46092
46092A
56001
56001
59101
59441A
59441D
92002
92015
92015
92022
92022A
92066
92066
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X30,BLACK 120 120S0830 4
BOLT-FLANGED 130 130J0612 2
SCREW-PAN+- 214 214C0518 2
SCREW-PAN-CROSS 220 220F0514 4
SCREW-PAN-CROSS 220A 220F0620 1
BRACKET-A,LEVER HOLDER 11036 11036-1297 1
GUIDE,THROTTLE PEACE 13070 13070-1131 1
HOLDER,ENGINE STOP SWITCH 13091 13091-1255 1
HOLDER-CABLE,CLUTCH 14044 14044-1062 1
SWITCH-ASSY,ENGINE STOP 27045 27045-1071 1
CASE,THROTTLE,UPP 32099 32099-1072 1
CASE,THROTTLE,LWR 32099A 32099-1073 1
HANDLE 46003 46003-1153 1
HOLDER-HANDLE,UPP 46012 46012-1102 2
GRIP-ASSY,THROTTLE 46019 46019-1054 1
SCREW,CABLE ADJUST,8MM 46055 46055-009 1
NUT,CABLE ADJUST 46056 46056-006 1
GRIP,LH 46075 46075-1051 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-1142 1
HOUSING-ASSY-CONTROL,LH 46091 46091-1791 1
LEVER-GRIP,CLUTCH 46092 46092-1111 1
LEVER-GRIP,CHOKE 46092A 46092-1123 1
MIRROR-ASSY 56001 56001-1204 2
REEL,THROTTLE 59101 59101-1106 1
COVER-HANDLE,LH,EBONY 59441A 59441-1073-6C 1
COVER-HANDLE,RH,EBONY 59441D 59441-1074-6C 1
BOLT,LEVER SET 92002 92002-1880 1
NUT,LOCK,FLANGED,6MM 92015 92015-1603 2
WASHER,ENGINE STOP SWITCH 92022 92022-1474 1
WASHER 92022A 92022-1896 1
PLUG 92066 92066-1216 4
NUT,LOCK,6MM 92210 92210-0006 1
