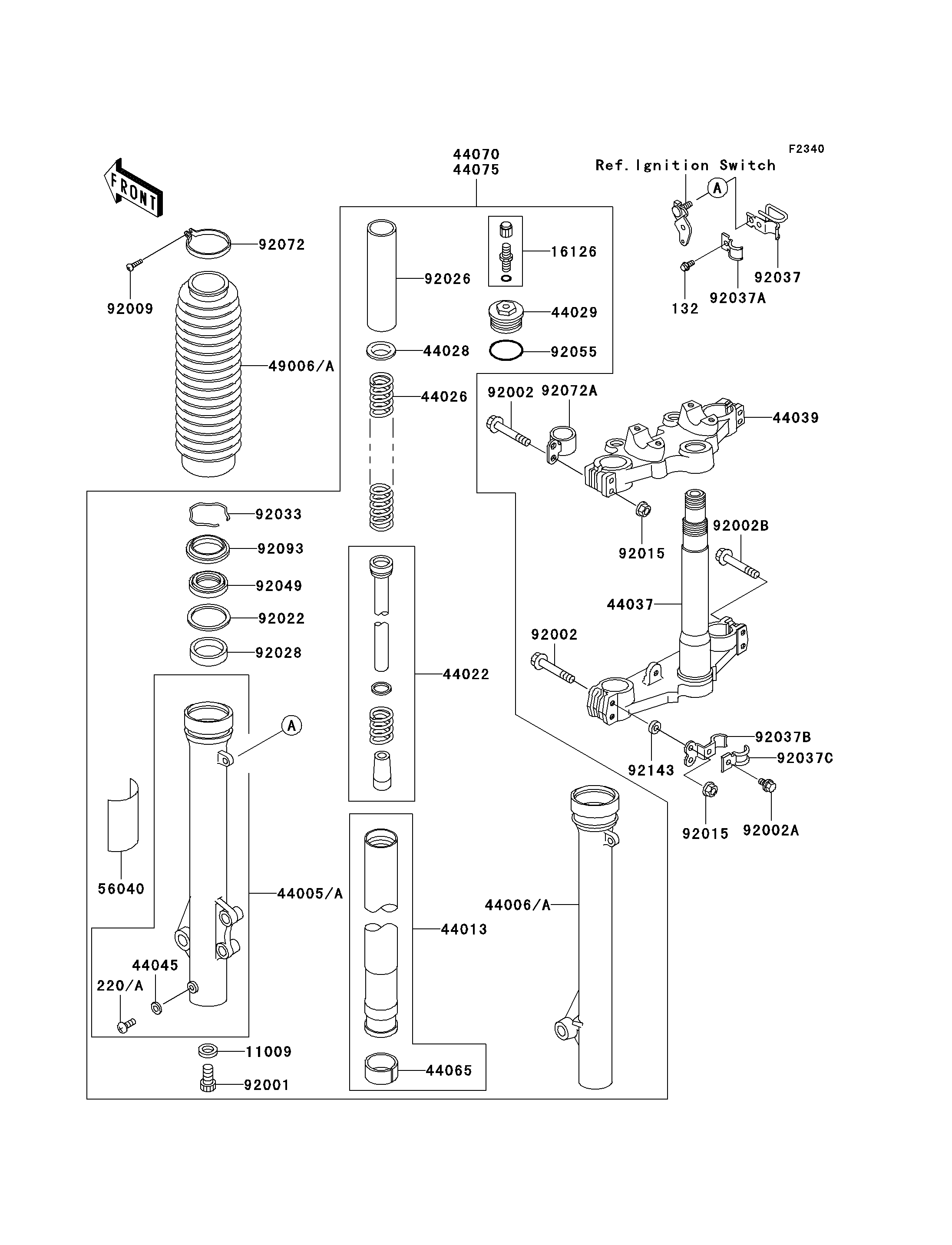

2004 KLR650 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
16126
16126
44005A
44005A
44006A
44006A
44013
44013
44022
44022
44026
44026
44028
44028
44029
44029
44037
44037
44039
44039
44045
44045
44065
44065
44070
44070
49006
49006
56040
56040
92001
92001
92002
92002
92002
92002
92002A
92002A
92002B
92002B
92009
92009
92015
92015
92015
92015
92022
92022
92026
92026
92028
92028
92033
92033
92037
92037
92037A
92037A
92037B
92037B
92037C
92037C
92049
92049
92055
92055
92072
92072
92072A
92072A
92093
92093
92143
92143
132
132
220
220
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 11009-1127 2
VALVE,AIR 16126 16126-1052 2
PIPE-LEFT FORK OUTER 44005A 44005-1335 1
PIPE-RIGHT FORK OUTER 44006A 44006-1333 1
PIPE-FORK INNER 44013 44013-1264 2
CYLINDER-FORK 44022 44022-1211 2
SPRING-FRONT FORK 44026 44026-1369 2
GUIDE-FORK SPRING 44028 44028-1003 2
SEAT-FORK SPRING 44029 44029-1042 2
HOLDER-FORK UNDER 44037 44037-1207 1
HOLDER-FORK UPPER 44039 44039-1160 1
GASKET,FORK DRAIN PLUG 44045 44045-002 2
BUSHING-FRONT FORK,INNER PIPE 44065 44065-1057 2
DAMPER-SET-FORK 44070 44070-5141 1
BOOT,FORK,BLACK 49006 49006-1222-BD 2
LABEL-WARNING,FRONT FORK 56040 56040-1120 1
BOLT,FORK CYLINDER 92001 92001-1309 2
BOLT,FLANGED,8X55 92002 92002-1158 6
BOLT 92002A 92002-1982 1
BOLT,FLANGED,8X45 92002B 92002-1983 2
SCREW,4X16 92009 92009-1348 2
NUT,FLANGED,8MM 92015 92015-1408 8
WASHER 92022 92022-1242 2
SPACER 92026 92026-1294 2
BUSHING 92028 92028-1125 2
RING-SNAP,FORK 92033 92033-1047 2
CLAMP,HOSE 92037 92037-1897 1
CLAMP,HOSE 92037A 92037-1898 1
CLAMP 92037B 92037-1913 1
CLAMP 92037C 92037-1931 1
SEAL-OIL,FRONT FORK 92049 92049-1180 2
RING-O,FORK TOP CAP 92055 92055-1050 2
BAND,BOOT 92072 92072-1171 2
BAND,CABLE 92072A 92072-1225 1
SEAL,FRONT FORK 92093 92093-1166 2
COLLAR 92143 92143-1134 2
BOLT-FLANGED-SMALL 132 132J0612 1
SCREW-PAN-CROS,4X6 220 220B0406 2
