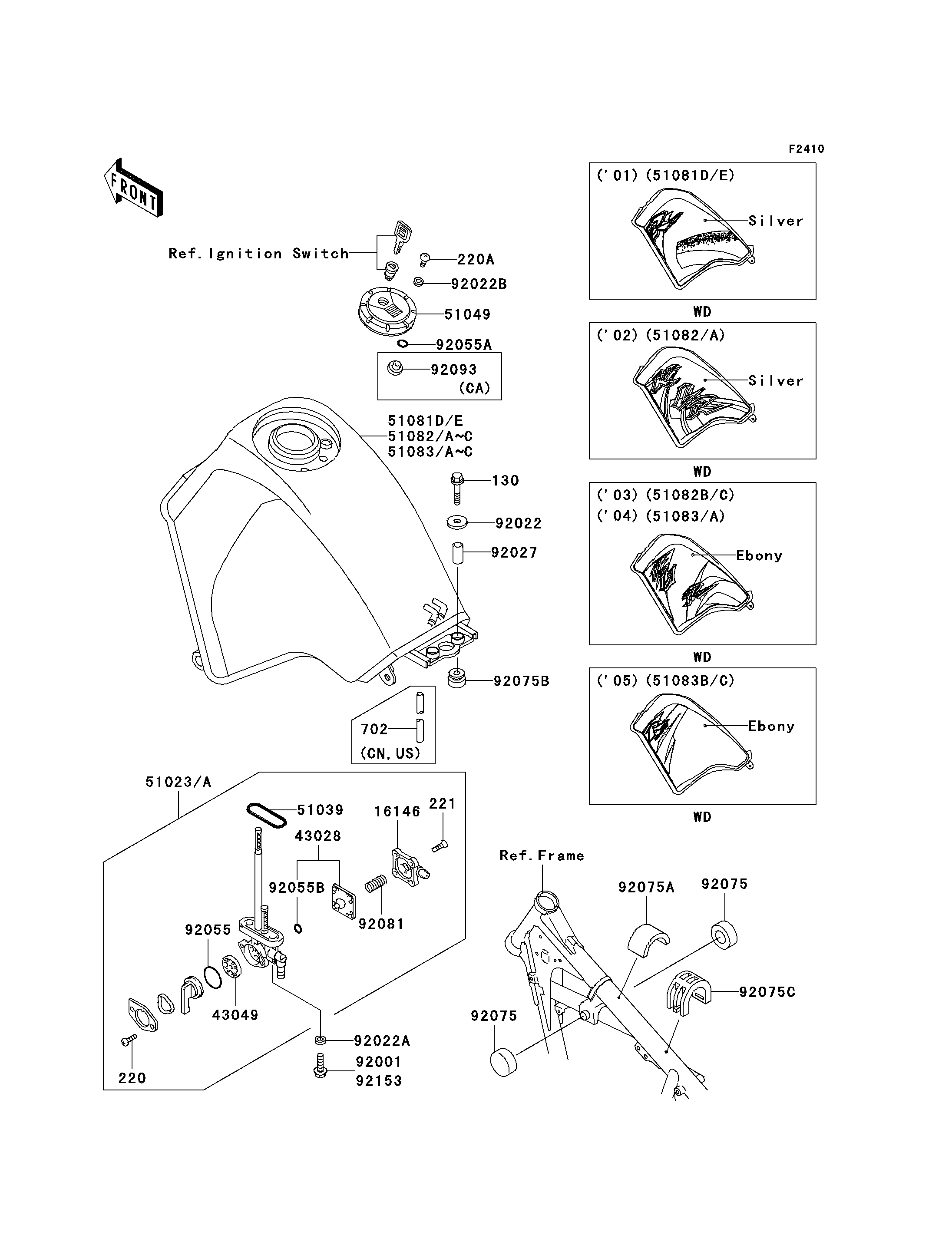

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER-ASSY,TAP DIAPHRAGM | 16146 | 16146-1010 | 1 | ||
DIAPHRAGM | 43028 | 43028-1033 | 1 | ||
PACKING | 43049 | 43049-1103 | 1 | ||
TAP-ASSY,FUEL | 51023A | 51023-1390 | 1 | ||
RING,TAP FLANGED | 51039 | 51039-003 | 1 | ||
CAP-TANK,FUEL | 51049 | 51049-1134 | 1 | ||
WASHER,6.5X20X1.6 | 92022 | 92022-125 | 2 | ||
WASHER,6.2X11X1.5 | 92022A | 92022-183 | 2 | ||
WASHER,5.1X10X1.0 | 92022B | 92022-1977 | 2 | ||
COLLAR,6.8X10X20 | 92027 | 92027-1856 | 2 | ||
RING-O,TAP LEVER | 92055 | 92055-1085 | 1 | ||
RING-O,ID=9 | 92055A | 92055-1552 | 2 | ||
RING-O | 92055B | 92055-1664 | 1 | ||
DAMPER,FUEL TANK | 92075 | 92075-101 | 2 | ||
DAMPER | 92075A | 92075-1507 | 1 | ||
DAMPER | 92075B | 92075-1660 | 2 | ||
DAMPER,FUEL TANK | 92075C | 92075-1862 | 1 | ||
SPRING,TAP DIAPHRAGM | 92081 | 92081-1240 | 1 | ||
BOLT,FLANGED,6X20 | 92153 | 92153-0746 | 2 | ||
BOLT-FLANGED,6X30,BLACK | 130 | 130J0630 | 2 | ||
SCREW-PAN-CROS | 220 | 220B0308 | 2 | ||
SCREW-PAN-CROS | 220A | 220D0510 | 2 | ||
SCREW-CSK-CROS,4X14 | 221 | 221B0414 | 4 | ||
TANK-COMP-FUEL,EBONY | 51083 | 51083-5108-H8 | 1 | CNUS | |
TANK-COMP-FUEL,EBONY | 51083A | 51083-5109-H8 | 1 | CA | |
SEAL,FUEL TANK CAP | 92093 | 92093-1030 | 1 | CA | |
TUBE-RUBBER,5X8X620 | 702 | 702A05620 | 1 | CNUS |
