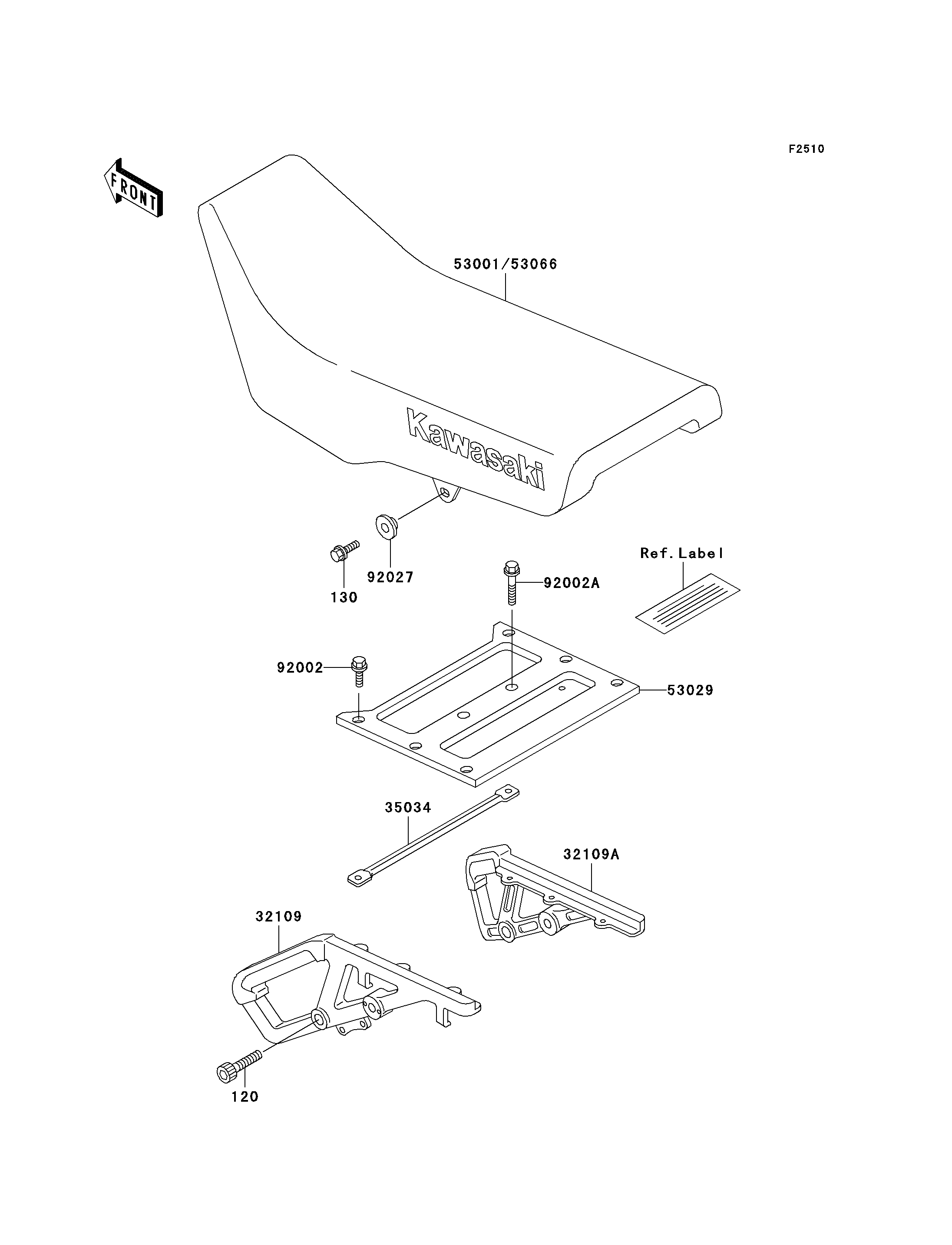

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X35 120 120P0835 2
BOLT-FLANGED,6X14 130 130H0614 2
GRIP-FRAME,LH,SILVER NO.25 32109 32109-1152-CE 1
GRIP-FRAME,RH,SILVER NO.25 32109A 32109-1153-CE 1
REINFORCE 35034 35034-1207 1
CARRIER 53029 53029-1081 1
SEAT-ASSY,DUAL,BLACK 53066 53066-1062-MW 1
BOLT,6X16 92002 92002-1933 6
BOLT,FLANGED,6X32 92002A 92002-1989 2
COLLAR 92027 92027-1794 2
