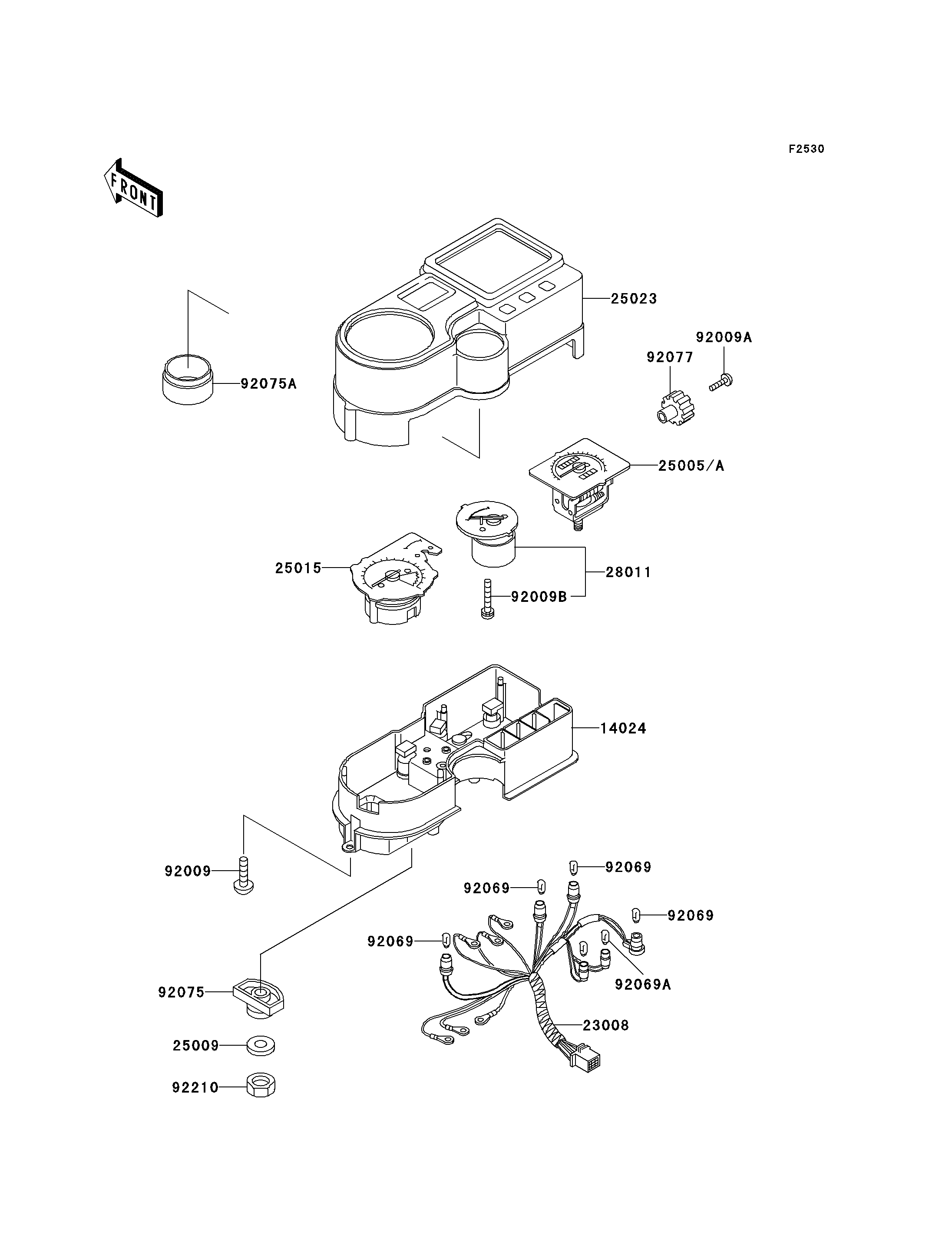

Parts Diagrams |
14024
23008
25009
25015
25023
28011
92009
92009A
92009B
92069
92069
92069
92069
92069A
92075
92075A
92077
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER,METER CASE,LWR | 14024 | 14024-1407 | 1 | ||
SOCKET-ASSY,METER | 23008 | 23008-1332 | 1 | ||
WASHER,5.2X16X1.2 | 25009 | 25009-004 | 2 | ||
TACHOMETER,X1000R/MIN | 25015 | 25015-1263 | 1 | ||
COVER-METER CASE,UPP | 25023 | 25023-1152 | 1 | ||
METER,TEMP | 28011 | 28011-1091 | 1 | ||
SCREW,TAPPING,4X16 | 92009 | 92009-1163 | 3 | ||
SCREW,2X6,BLACK | 92009A | 92009-1172 | 1 | ||
SCREW,3X22 | 92009B | 92009-1293 | 3 | ||
BULB,12V 3.4W,T10 | 92069 | 92069-1007 | 4 | ||
BULB,12V 1.7W,T6.5 | 92069A | 92069-1070 | 2 | ||
DAMPER,METER BRACKET | 92075 | 92075-1581 | 2 | ||
DAMPER | 92075A | 92075-1890 | 1 | ||
KNOB,METER | 92077 | 92077-1054 | 1 | ||
NUT,5MM | 92210 | 92210-1124 | 2 | ||
SPEEDOMETER,MPH | 25005 | 25005-1341 | 1 | CAUS | |
SPEEDOMETER,KPH | 25005A | 25005-1345 | 1 | CN |
COVER,METER CASE,LWR | |
REF # | 14024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SOCKET-ASSY,METER | |
REF # | 23008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,5.2X16X1.2 | |
REF # | 25009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TACHOMETER,X1000R/MIN | |
REF # | 25015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-METER CASE,UPP | |
REF # | 25023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
METER,TEMP | |
REF # | 28011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,4X16 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW,2X6,BLACK | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,3X22 | |
REF # | 92009B |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BULB,12V 3.4W,T10 | |
REF # | 92069 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BULB,12V 1.7W,T6.5 | |
REF # | 92069A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,METER BRACKET | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
KNOB,METER | |
REF # | 92077 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,5MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPEEDOMETER,MPH | |
REF # | 25005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CAUS |
REMARKS |
SPEEDOMETER,KPH | |
REF # | 25005A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
