Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

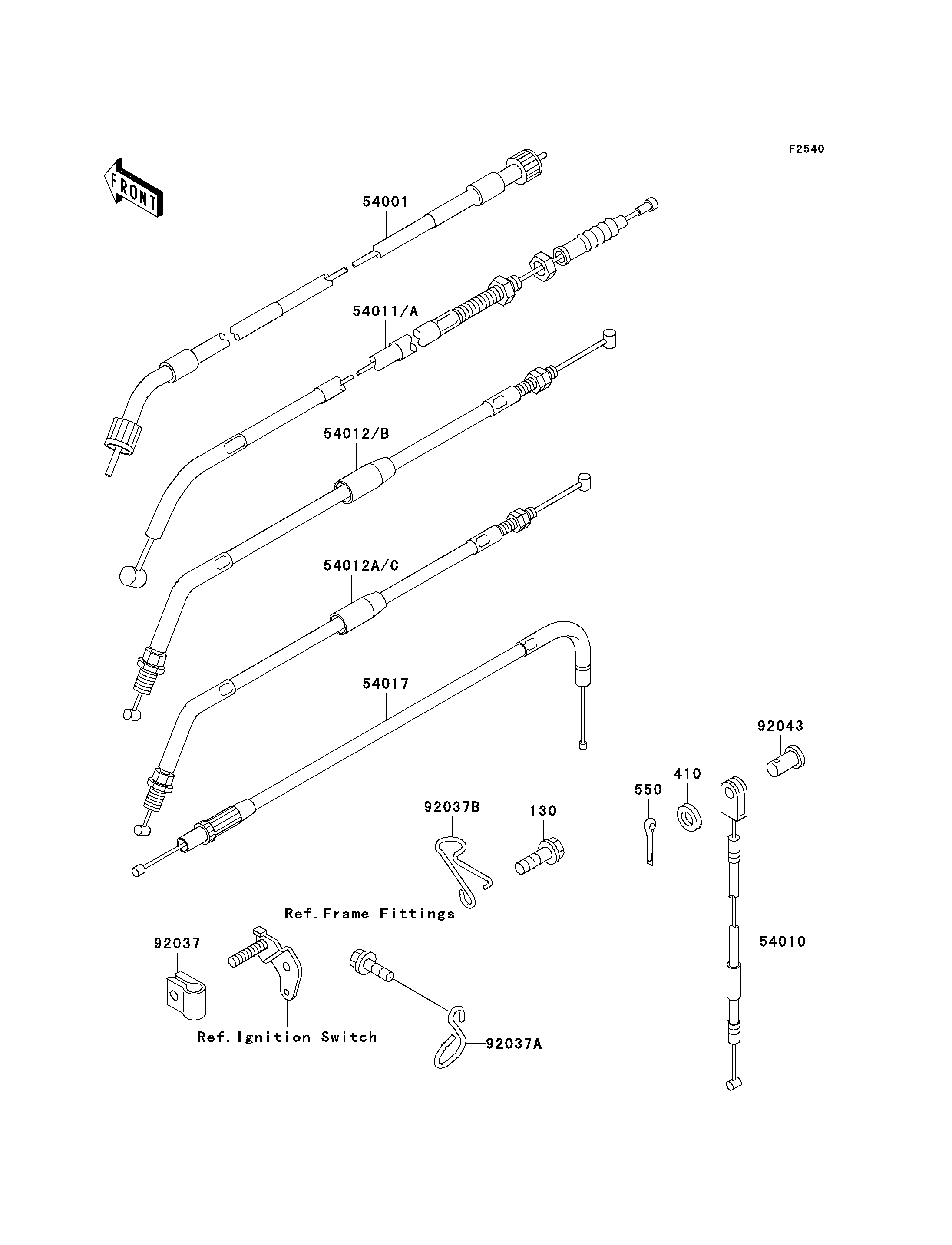

130
410
550
54001
54010
54011
54012B
54012C
54017
92037
92037A
92037B
92043
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130B0612 1
WASHER-PLAIN-SMALL,5MM 410 410B0500 1
PIN-COTTER,2.0X12 550 550D2012 1
CABLE-SPEEDMETER 54001 54001-1207 1
CABLE,SIDE STAND SWITCH 54010 54010-1103 1
CABLE-CLUTCH 54011 54011-0001 1
CABLE-THROTTLE,OPENING 54012B 54012-1327 1
CABLE-THROTTLE,CLOSING 54012C 54012-1328 1
CABLE-STARTER 54017 54017-1090 1
CLAMP,CABLE 92037 92037-1777 1
CLAMP,CABLE 92037A 92037-1904 1
CLAMP,CABLE 92037B 92037-1937 1
PIN,5X10 92043 92043-1346 1
