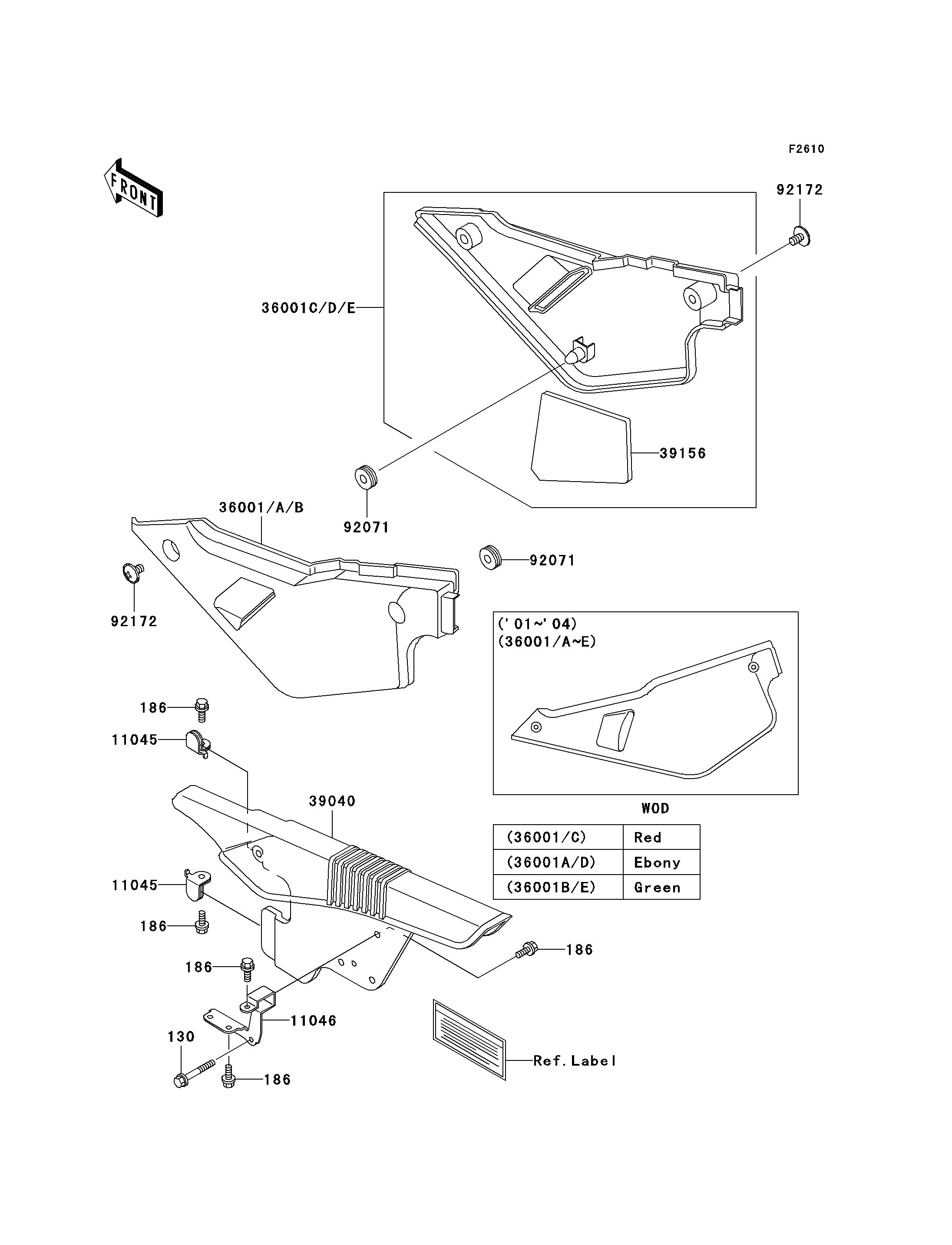

2004 KLR650 - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
11045
11045
11045
11045
11046
11046
36001
36001
36001C
36001C
130
130
186
186
186
186
186
186
186
186
186
186
39040
39040
39156
39156
92071
92071
92071
92071
92172
92172
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CHAIN CASE,FR 11045 11045-1335 2
BRACKET,CHAIN CASE,RR 11046 11046-1391 1
COVER-SIDE,LH,A.RED 36001 36001-1346-260 1
COVER-SIDE,RH,A.RED 36001C 36001-1537-260 1
BOLT-FLANGED 130 130H0640 2
BOLT-UPSET-WP 186 186C0612 5
COVER-ASSY-CHAIN CASE 39040 39040-1057 1
PAD,SIDE COVER 39156 39156-1426 1
GROMMET 92071 92071-056 2
SCREW,6X10 92172 92172-0098 4
