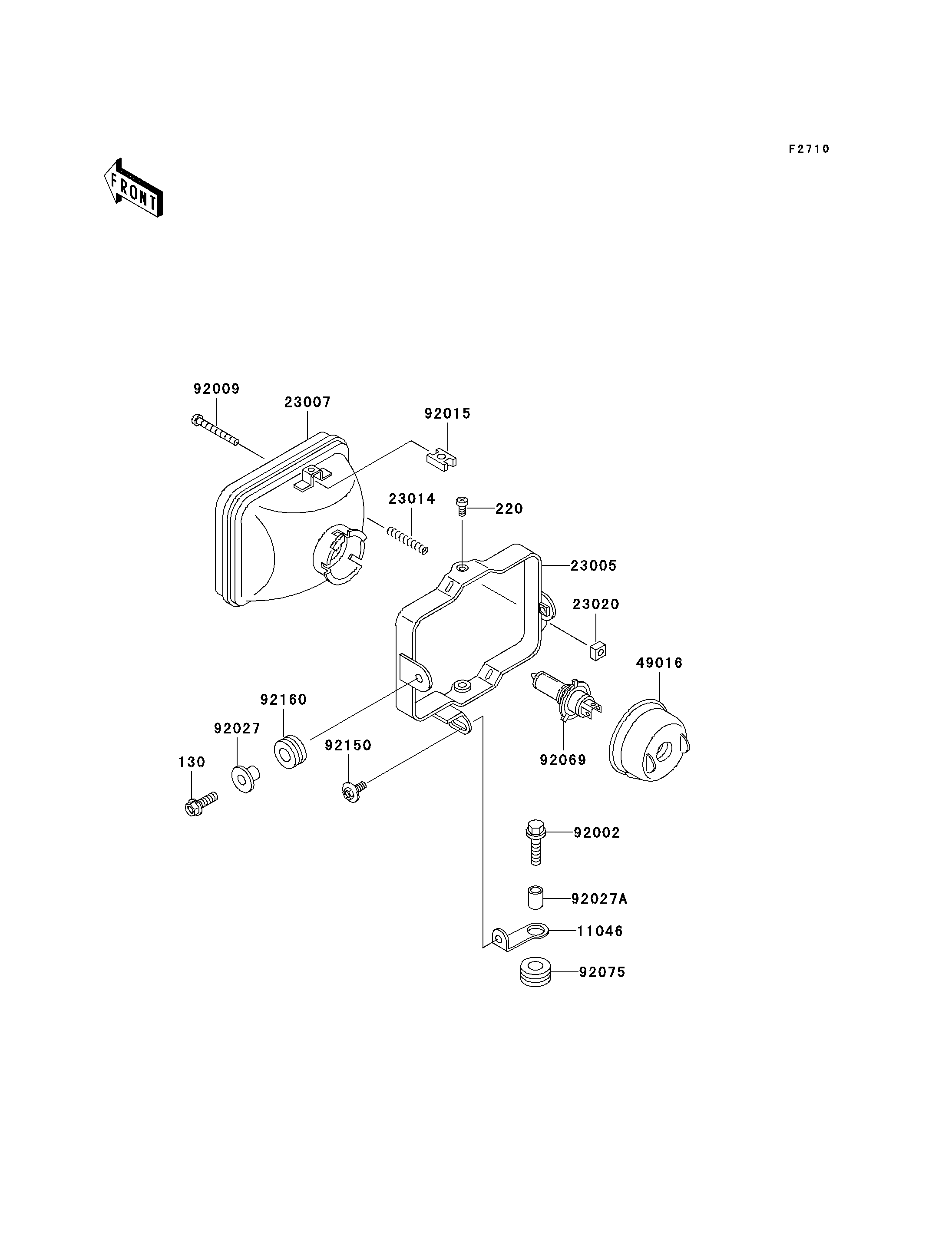

130
220
11046
23005
23007
23014
23020
49016
92002
92009
92015
92027
92027A
92069
92075
92150
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130L0825 2
SCREW-PAN-CROS,5X8 220 220B0508 2
BRACKET,HEAD LAMP 11046 11046-1041 1
BODY-COMP-HEAD LAMP 23005 23005-1052 1
LENS-COMP,HEAD LAMP 23007 23007-1364 1
SPRING,FOCUS ADJUSTING 23014 23014-005 1
NUT,4MM,FOCUS ADJUST 23020 23020-018 1
COVER-SEAL,SOCKET 49016 49016-1037 1
BOLT,6X25 92002 92002-1135 1
SCREW,4X48 92009 92009-1065 1
NUT,5MM 92015 92015-1354 2
COLLAR,L=14 92027 92027-1134 2
COLLAR,6.8X10X12 92027A 92027-162 1
BULB,12V 60/55W,H4 92069 92069-1002 1
DAMPER 92075 92075-209 1
BOLT,6X16 92150 92150-1764 1
DAMPER 92160 92160-1007 2
