Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
130
220
11009
11009A
11045
11051
23008
23016
23025
23026
23026A
92015
92015
92022
92027
92027
92069
92069A
92075
92075
92075A
92153
92172

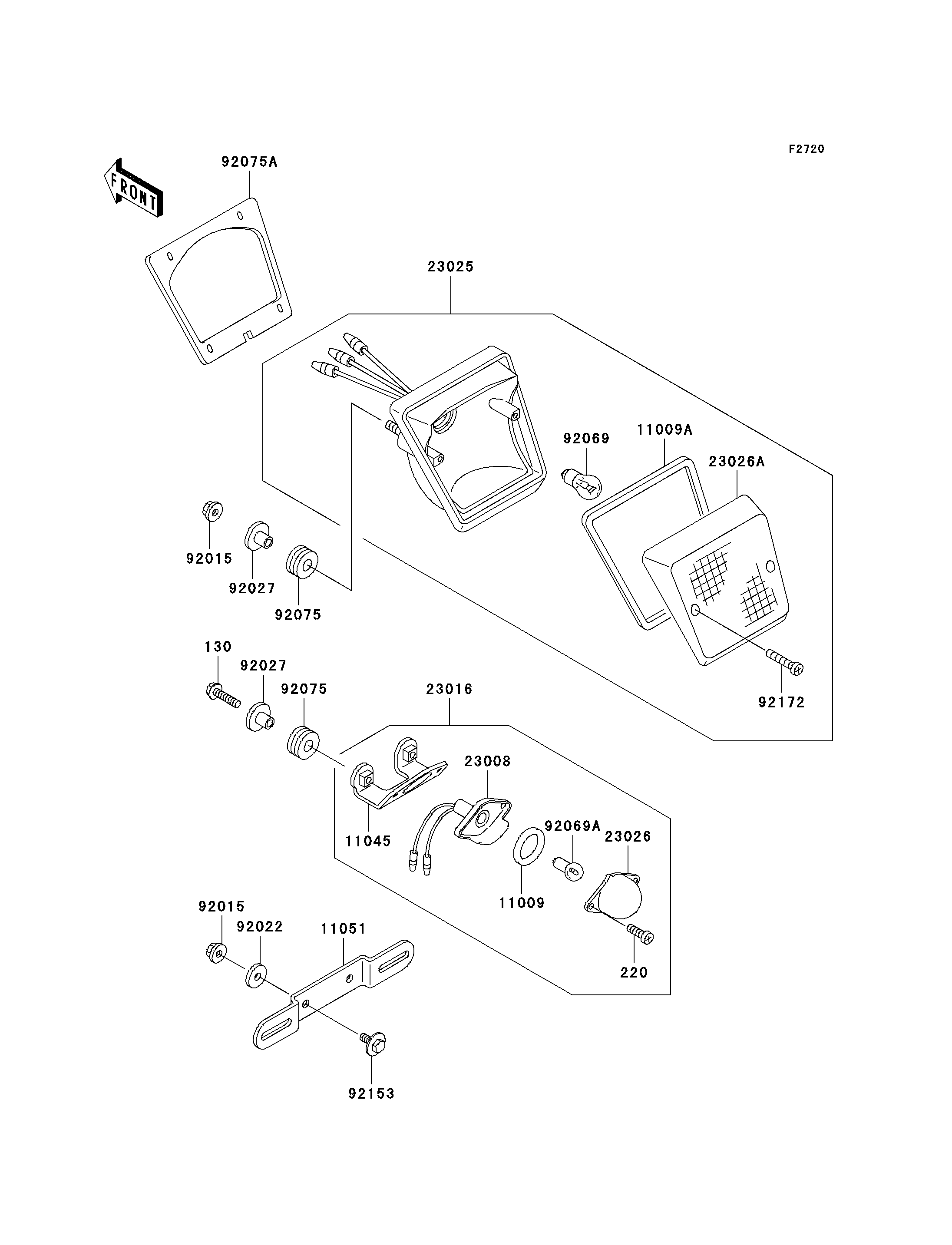

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X25 | 130 | 130H0625 | 2 | ||
SCREW-PAN-CROS | 220 | 220B0410 | 2 | ||
GASKET,LICENSE PLATE LAMP | 11009 | 11009-1372 | 1 | ||
GASKET,TAIL LAMP LENS | 11009A | 11009-1636 | 1 | ||
BRACKET,LICENSE PLATE LAMP | 11045 | 11045-1927 | 1 | ||
BRACKET,LICENSE PLATE | 11051 | 11051-1522 | 1 | ||
SOCKET-ASSY,LICENSE PLATE LAMP | 23008 | 23008-1205 | 1 | ||
LAMP-ASSY,LICENSE PLATE | 23016 | 23016-1087 | 1 | ||
LAMP-TAIL,F.BLACK | 23025 | 23025-1315-6Z | 1 | ||
LENS,LAMP | 23026 | 23026-1054 | 1 | ||
LENS,TAIL LAMP | 23026A | 23026-1086 | 1 | ||
NUT,FLANGED,6MM | 92015 | 92015-1367 | 4 | ||
WASHER,6.5X20X1.6 | 92022 | 92022-1557 | 2 | ||
COLLAR,L=13.1 | 92027 | 92027-251 | 4 | ||
BULB,12V 21/5W | 92069 | 92069-063 | 1 | ||
BULB,12V 5W | 92069A | 92069-1055 | 1 | ||
DAMPER | 92075 | 92075-1690 | 4 | ||
DAMPER,TAIL LAMP | 92075A | 92075-1889 | 1 | ||
BOLT,6X16 | 92153 | 92153-0684 | 2 | ||
SCREW,TAPPING,4X25 | 92172 | 92172-0134 | 2 |
