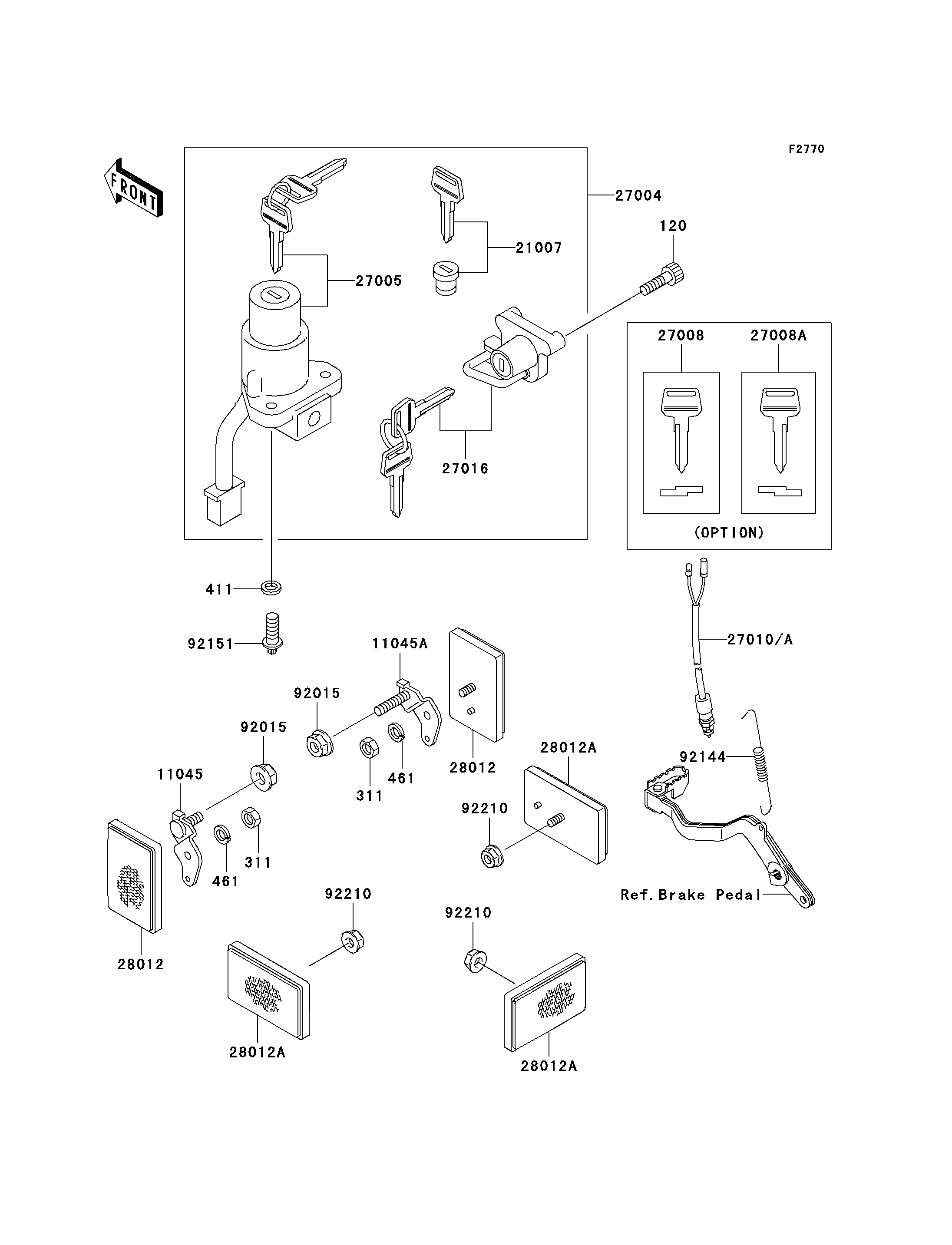

2004 KLR650 - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
120
311
311
411
461
461
11045
11045A
21007
27004
27005
27008
27008A
27010A
27016
28012
28012
28012A
28012A
28012A
92015
92015
92144
92151
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120S0612 2
NUT-HEX 311 311C0500 2
WASHER-PLAIN,6MM 411 411E0600 2
WASHER-SPRING,5MM,BLACK 461 461K0500 2
BRACKET,REFLECTOR,FR 11045 11045-1354 1
BRACKET,REFLECTOR,FR 11045A 11045-1355 1
ROTOR,LOCK,TANK CAP 21007 21007-5022 1
SWITCH-ASSY 27004 27004-5322 1
SWITCH-ASSY-IGNITION 27005 27005-1129 1
KEY-LOCK,BLANK,#A 27008 27008-1034 1 (OPTION)
KEY-LOCK,BLANK,#B 27008A 27008-1035 1 (OPTION)
SWITCH,REAR BRAKE 27010A 27010-1484 1
LOCK-ASSY,HELMET 27016 27016-5075 1
REFLECTOR-REFLEX 28012 28012-1003 2
REFLECTOR-REFLEX 28012A 28012-1088 3
NUT,FLANGED,6MM,BLACK 92015 92015-1233 2
SPRING,REAR BRAKE SWITCH 92144 92144-1093 1
BOLT,TORX,6X16 92151 92151-1911 2
NUT,FLANGED,5MM 92210 92210-0007 3
