Parts Diagrams |

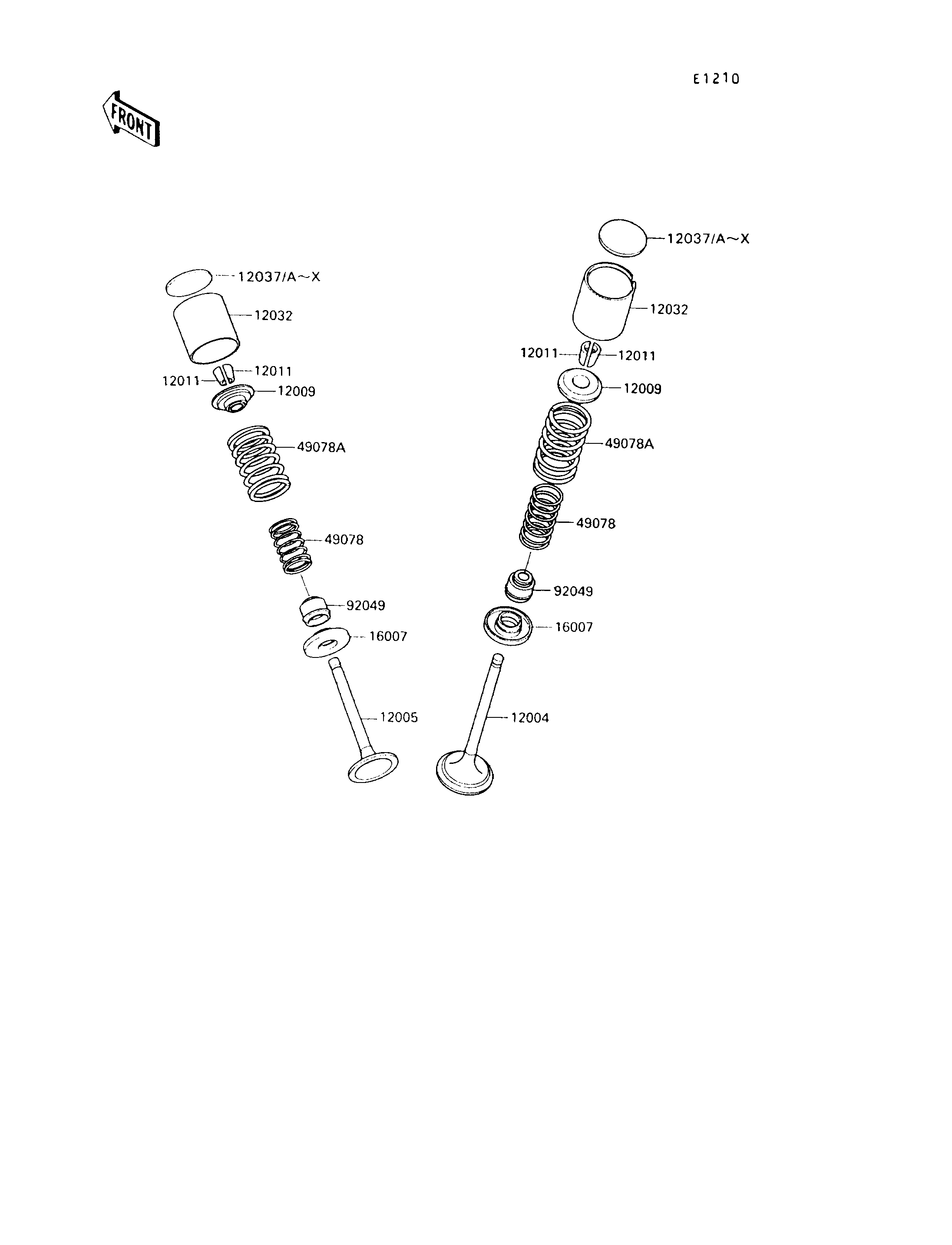

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
VALVE-INTAKE | 12004 | 12004-1087 | 2 | ||
VALVE-EXHAUST | 12005 | 12005-1085 | 2 | ||
RETAINER-VALVE SPRING | 12009 | 12009-005 | 4 | ||
COLLET,RETAINER | 12011 | 12011-004 | 8 | ||
TAPPET | 12032 | 12032-1002 | 4 | ||
SHIM,T=2.00 | 12037 | 12037-001 | AR | ||
SHIM,T=2.05 | 12037A | 12037-002 | AR | ||
SHIM,T=2.10 | 12037B | 12037-003 | AR | ||
SHIM,T=2.15 | 12037C | 12037-004 | AR | ||
SHIM,T=2.20 | 12037D | 12037-005 | AR | ||
SHIM,T=2.25 | 12037E | 12037-006 | AR | ||
SHIM,T=2.30 | 12037F | 12037-007 | AR | ||
SHIM,T=2.35 | 12037G | 12037-008 | AR | ||
SHIM,T=2.40 | 12037H | 12037-009 | AR | ||
SHIM,T=2.45 | 12037I | 12037-010 | AR | ||
SHIM,T=2.50 | 12037J | 12037-011 | AR | ||
SHIM,T=2.55 | 12037K | 12037-012 | AR | ||
SHIM,T=2.60 | 12037L | 12037-013 | AR | ||
SHIM,T=2.65 | 12037M | 12037-014 | AR | ||
SHIM,T=2.70 | 12037N | 12037-015 | AR | ||
SHIM,T=2.75 | 12037O | 12037-016 | AR | ||
SHIM,T=2.80 | 12037P | 12037-017 | AR | ||
SHIM,T=2.85 | 12037Q | 12037-018 | AR | ||
SHIM,T=2.90 | 12037R | 12037-019 | AR | ||
SHIM,T=2.95 | 12037S | 12037-020 | AR | ||
SHIM,T=3.00 | 12037T | 12037-021 | AR | ||
SHIM,T=3.05 | 12037U | 12037-022 | AR | ||
SHIM,T=3.10 | 12037V | 12037-023 | AR | ||
SHIM,T=3.15 | 12037W | 12037-024 | AR | ||
SHIM,T=3.20 | 12037X | 12037-025 | AR | ||
SEAT-SPRING,VALVE | 16007 | 16007-1024 | 4 | ||
SPRING-ENGINE VALVE,INNER | 49078 | 49078-1065 | 4 | ||
SPRING-ENGINE VALVE,OUTER | 49078A | 49078-1066 | 4 | ||
SEAL-OIL,RV37129.5 | 92049 | 92049-016 | 4 |
VALVE-INTAKE | |
REF # | 12004 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
VALVE-EXHAUST | |
REF # | 12005 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RETAINER-VALVE SPRING | |
REF # | 12009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COLLET,RETAINER | |
REF # | 12011 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
TAPPET | |
REF # | 12032 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SHIM,T=2.00 | |
REF # | 12037 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=2.05 | |
REF # | 12037A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=2.10 | |
REF # | 12037B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=2.15 | |
REF # | 12037C |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=2.20 | |
REF # | 12037D |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=2.25 | |
REF # | 12037E |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=2.30 | |
REF # | 12037F |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=2.35 | |
REF # | 12037G |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=2.40 | |
REF # | 12037H |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=2.45 | |
REF # | 12037I |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=2.50 | |
REF # | 12037J |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=2.55 | |
REF # | 12037K |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=2.60 | |
REF # | 12037L |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=2.65 | |
REF # | 12037M |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=2.70 | |
REF # | 12037N |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=2.75 | |
REF # | 12037O |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=2.80 | |
REF # | 12037P |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=2.85 | |
REF # | 12037Q |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=2.90 | |
REF # | 12037R |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=2.95 | |
REF # | 12037S |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=3.00 | |
REF # | 12037T |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=3.05 | |
REF # | 12037U |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=3.10 | |
REF # | 12037V |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=3.15 | |
REF # | 12037W |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=3.20 | |
REF # | 12037X |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SEAT-SPRING,VALVE | |
REF # | 16007 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SPRING-ENGINE VALVE,INNER | |
REF # | 49078 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SPRING-ENGINE VALVE,OUTER | |
REF # | 49078A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SEAL-OIL,RV37129.5 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
