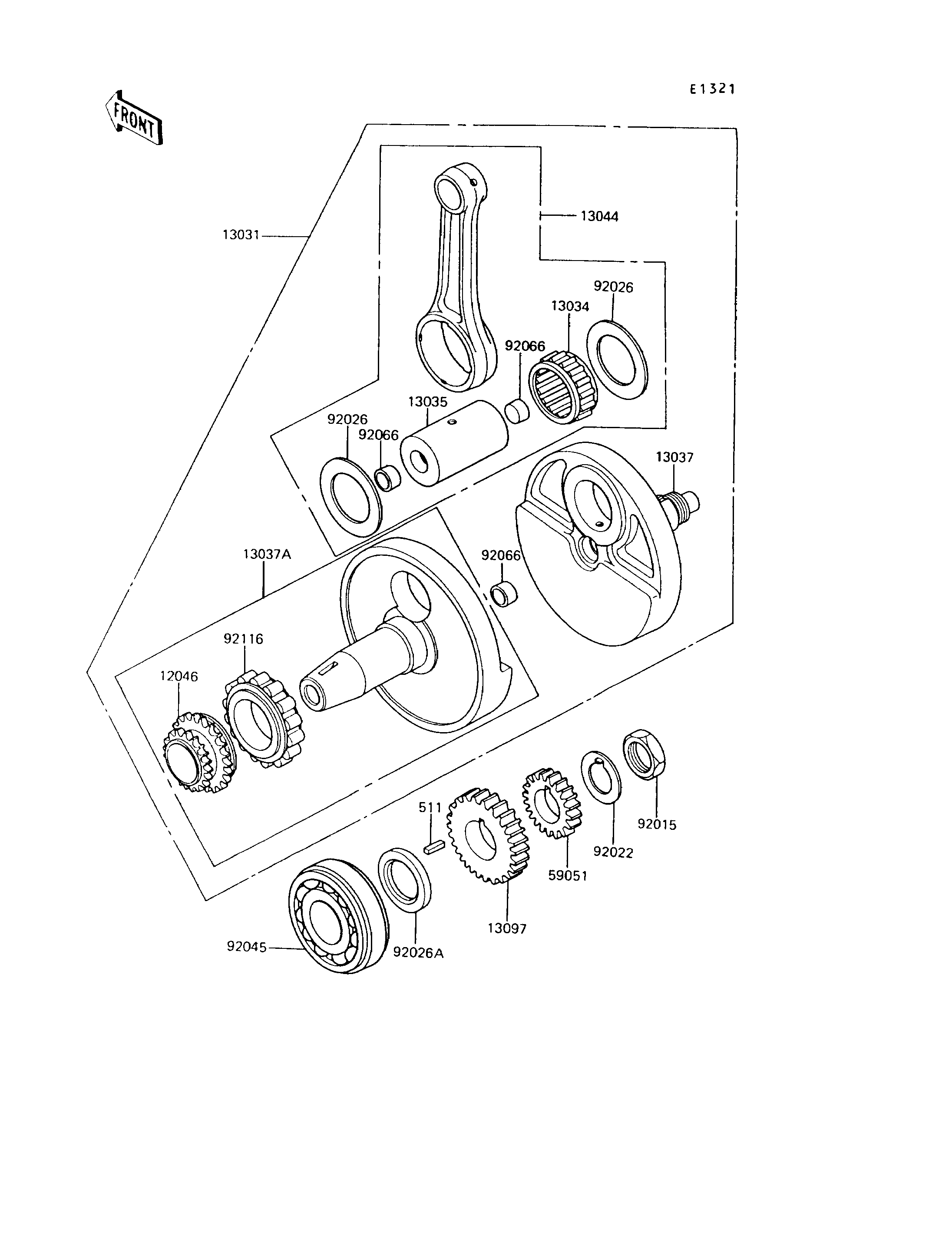

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,CAM&BALANCER 12046 12046-1070 1
CRANKSHAFT-COMP 13031 13031-1276 1
BEARING-BIG END 13034 13034-1084 1
PIN-CRANK 13035 13035-1066 1
CRANKSHAFT,RH 13037 13037-1351 1
CRANKSHAFT,LH 13037A 13037-5077 1
SET-CONNECTING ROD 13044 13044-5073 1
GEAR-PRIMARY SPUR,33T 13097 13097-1185 1
GEAR-SPUR,27T 59051 59051-1145 1
NUT,22MM 92015 92015-1320 1
WASHER,CLAW,22X40X1 92022 92022-1490 1
SPACER,40X60X1.5 92026 92026-1279 2
SPACER,30X50X4 92026A 92026-1280 1
BEARING-BALL,TM-SX08A50C3 92045 92045-1187 1
PLUG 92066 92066-1154 3
BEARING-ROLLER,L40-11C3 92116 92116-1064 1
KEY-SUNK 511 511A0520 1
