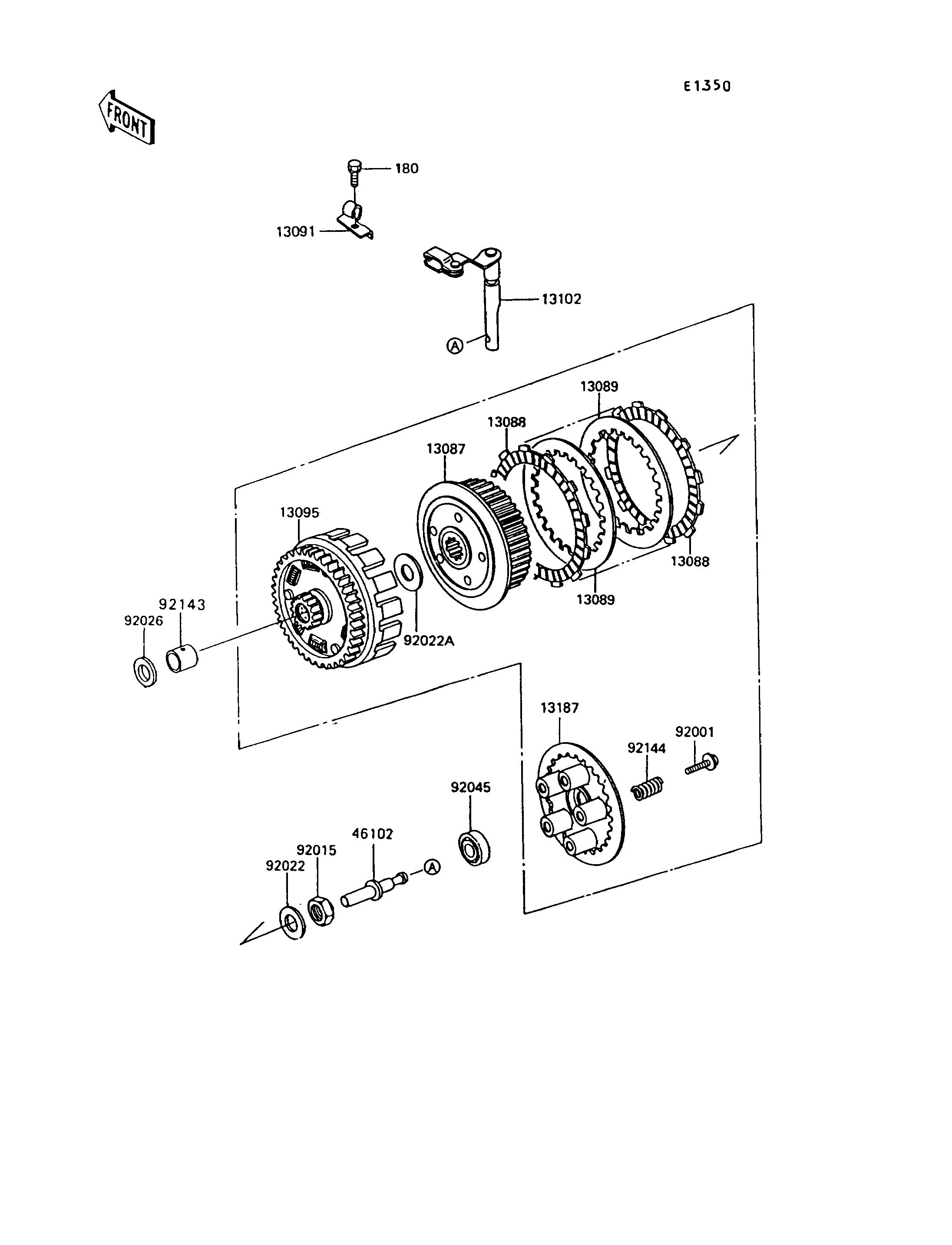

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HUB-CLUTCH 13087 13087-1162 1
PLATE-FRICTION 13088 13088-040 7
PLATE-CLUTCH,T=2.0 13089 13089-1068 6
HOLDER,CLUTCH CABLE 13091 13091-1257 1
HOUSING-COMP-CLUTCH 13095 13095-1157 1
RELEASE-COMP-CLUTCH 13102 13102-1074 1
PLATE-CLUTCH OPERATING 13187 13187-1012 1
ROD,CLUTCH 46102 46102-1030 1
BOLT,FLANGED,6X18 92001 92001-1066 5
NUT,20MM 92015 92015-1555 1
WASHER,20.3X36X2.3 92022 92022-1116 1
WASHER,25.5X52.6X2 92022A 92022-1476 1
SPACER,25.1X38X4 92026 92026-1206 1
BEARING-BALL,6001C3ML01 92045 92045-1235 1
COLLAR,25X30X29.2 92143 92143-1722 1
SPRING,CLUTCH 92144 92144-1151 5
BOLT-UPSET-WS 180 180J0612 1
