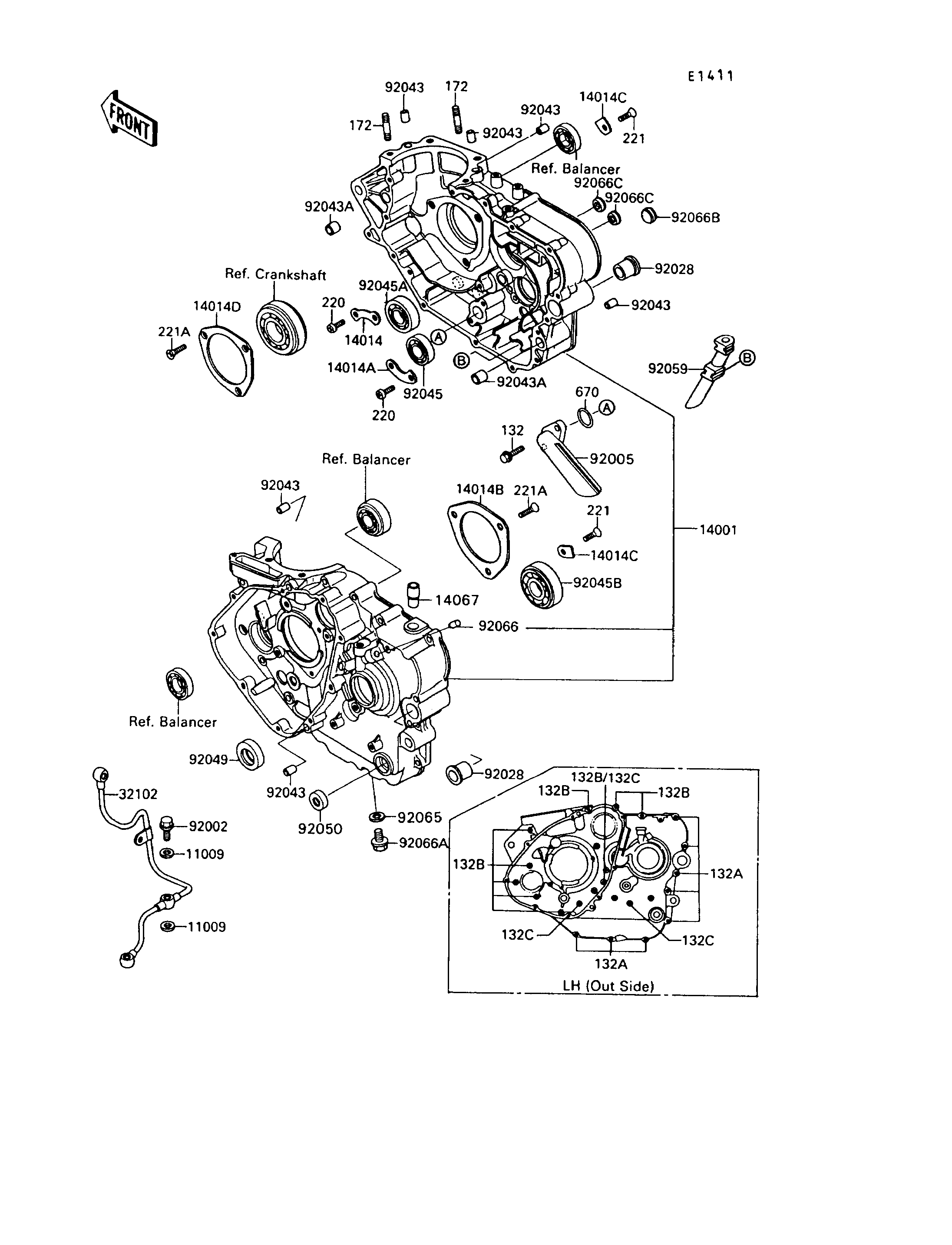

1995 KLR650 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10X14.5X1.5 11009 11009-1105 4
SET-CRANKCASE 14001 14001-5251 1
PLATE-POSITION,CHANGE DRUM 14014 14014-037 1
PLATE-POSITION 14014A 14014-1015 1
PLATE-POSITION 14014B 14014-1051 1
PLATE-POSITION 14014C 14014-1057 2
PLATE-POSITION 14014D 14014-1083 1
FITTING,BREATHER 14067 14067-006 1
PIPE 32102 32102-1353 1
BOLT,BANJO,10X25 92002 92002-1170 2
FITTING 92005 92005-1152 1
BUSHING,SWING ARM 92028 92028-1261 2
PIN,6.2X8X14 92043 92043-1263 6
PIN,11.5X14X14 92043A 92043-1279 2
BEARING-BALL,#6905 92045 92045-036 1
BEARING-BALL,TMB205 92045A 92045-1105 1
BEARING-BALL,TM-SX0597LU 92045B 92045-1127 1
SEAL-OIL,TC32457 92049 92049-1159 1
SEAL-OIL 92050 92050-082 1
TUBE,BREATHER 92059 92059-1833 1
GASKET,12X22X2,DRAIN PLUG 92065 92065-097 1
PLUG,OIL LINE,7.2X8 92066 92066-1012 1
PLUG,OIL DRAIN,12X15 92066A 92066-1174 1
PLUG,RCA207 92066B 92066-1264 1
PLUG 92066C 92066-1282 2
BOLT-FLANGED-SMALL 132 132G0620 2
BOLT-FLANGED-SMALL 132A 132J0630 8
BOLT-FLANGED-SMALL 132B 132J0650 8
BOLT-FLANGED-SMALL 132C 132J0880 3
BOLT-STUD,8X22 172 172G0822 2
SCREW-PAN-CROS,6X12 220 220B0612 4
SCREW-CSK-CROS,6X12 221 221B0612 2
SCREW-CSK-CROS,6X16 221A 221B0616 6
O RING 670 670D2018 1
