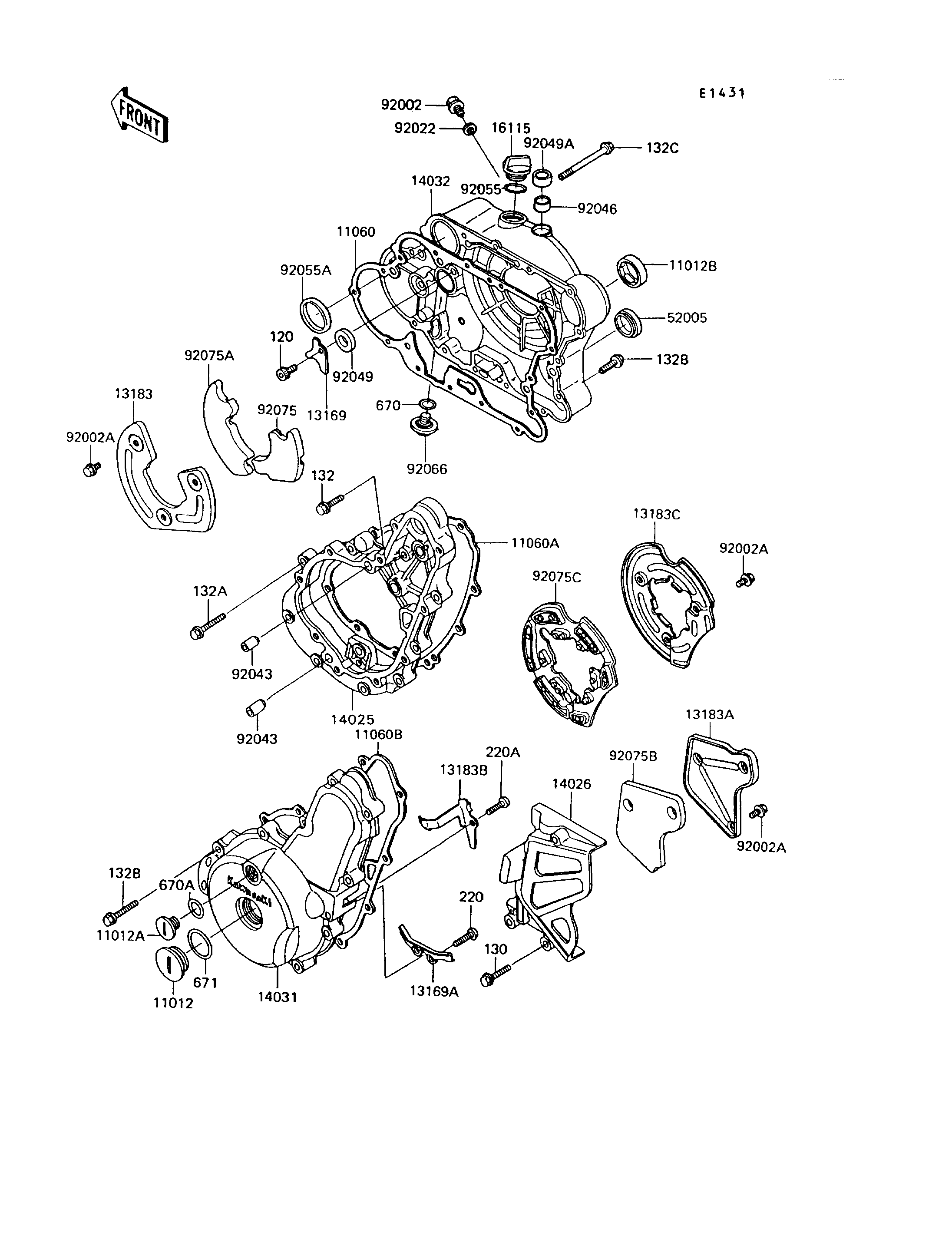

1995 KLR650 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1362 1
CAP,TOP MARK 11012A 11012-1363 1
CAP 11012B 11012-1567 1
GASKET,CLUTCH COVER 11060 11060-1111 1
GASKET,GENERATOR CASE COVER 11060A 11060-1112 1
GASKET,GENERATOR COVER 11060B 11060-1113 1
PLATE,OIL SEAL 13169 13169-1735 1
PLATE,PULSING COIL LEAD 13169A 13169-1882 1
PLATE 13183 13183-1122 1
PLATE 13183A 13183-1133 1
PLATE,GENERATOR 13183B 13183-1144 1
PLATE 13183C 13183-1146 1
COVER,GENERATOR CASE 14025 14025-1990 1
COVER-CHAIN 14026 14026-1131 1
COVER-GENERATOR 14031 14031-1210 1
COVER-CLUTCH 14032 14032-1230 1
CAP-OIL FILLER 16115 16115-1009 1
GAUGE,OIL LEVEL 52005 52005-1009 1
BOLT,CLUTCH RELEASE 92002 92002-1356 1
BOLT,6X8 92002A 92002-1944 9
WASHER,6.2X11X1 92022 92022-304 1
PIN,6.2X8X14 92043 92043-1263 2
BEARING-NEEDLE,HK1210 92046 92046-1010 1
SEAL-OIL,SCY 15X30X7 92049 92049-1158 1
SEAL-OIL,TB12205.5 92049A 92049-1271 1
RING-O,31.5X2.6 92055 92055-049 1
RING-O,62.6X66X3.1 92055A 92055-1221 1
PLUG,DRAIN 92066 92066-1156 1
DAMPER 92075 92075-1939 1
DAMPER 92075A 92075-1940 1
DAMPER 92075B 92075-1943 1
DAMPER 92075C 92075-1959 1
BOLT-SOCKET,6X10 120 120P0610 1
BOLT-FLANGED,6X25 130 130J0625 3
BOLT-FLANGED-SMALL 132 132J0620 1
BOLT-FLANGED-SMALL 132A 132J0625 8
BOLT-FLANGED-SMALL 132B 132J0630 24
BOLT-FLANGED-SMALL 132C 132J0680 1
SCREW-PAN-CROS 220 220B0510 2
SCREW-PAN-CROS,6X12 220A 220B0612 1
O RING,11MM 670 670B2011 1
O RING,18MM 670A 670B2018 1
O RING,40MM 671 671B2540 1
