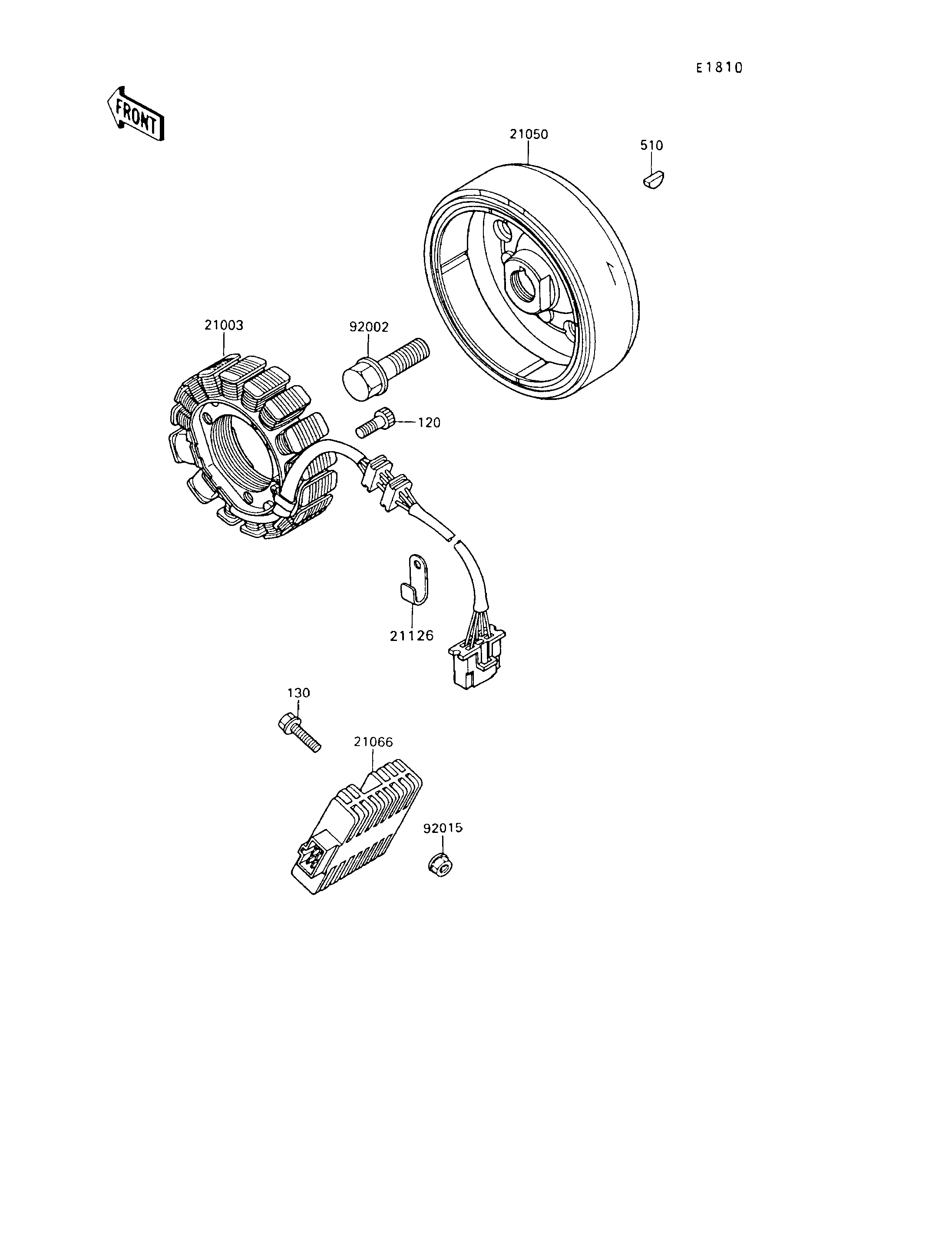

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR 21003 21003-1170 1
FLYWHEEL 21050 21050-1139 1
REGULATOR-VOLTAGE 21066 21066-1038 1
CLAMP,WIRING HARNESS 21126 21126-008 1
BOLT,FLANGED,12X40 92002 92002-1693 1
NUT,FLANGED,6MM 92015 92015-1078 2
BOLT-SOCKET,6X28 120 120P0628 3
BOLT-FLANGED,6X25 130 130G0625 2
KEY-WOODRUFF 510 510A4200 1
