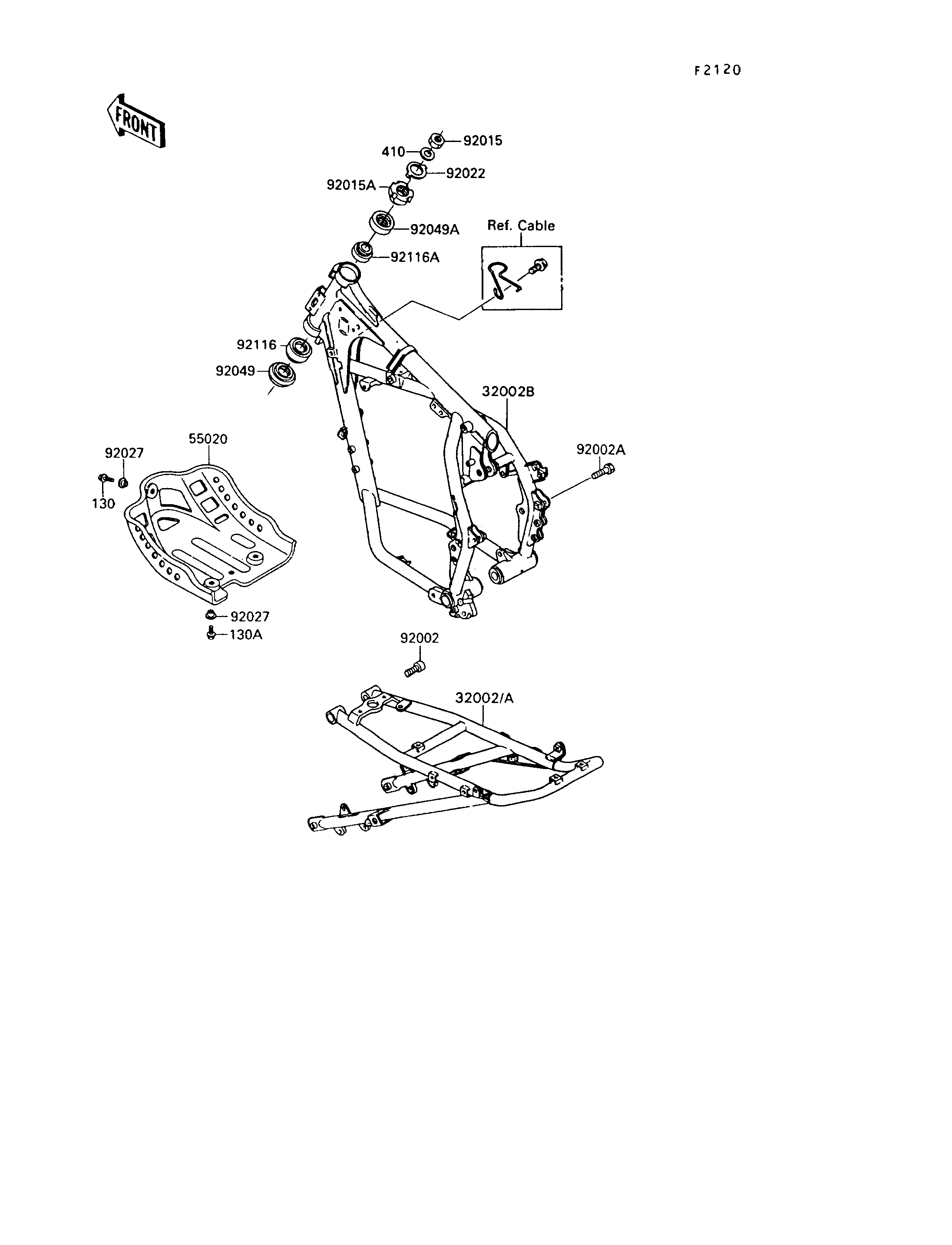

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME-COMP,RR,SILVER NO.25 32002 32002-1918-CE 1 CNUS
FRAME-COMP,RR,SILVER NO.25 32002A 32002-1923-CE 1 CA
FRAME-COMP,FR,SILVER NO.25 32002B 32002-1955-CE 1
GUARD,ENGINE,BLACK 55020 55020-1249-6Z 1
BOLT,SOCKET,8X30 92002 92002-1844 2
BOLT,FLANGED,8X28 92002A 92002-1971 2
NUT,18MM 92015 92015-1404 1
NUT,25MM,T=12 92015A 92015-1546 1
WASHER,CLAW,18.5X30X2.3 92022 92022-1555 1
COLLAR 92027 92027-1794 3
SEAL-OIL,XMHE36X52X4J 92049 92049-1162 1
SEAL-OIL,STEERING STEM 92049A 92049-1214 1
BEARING-ROLLER,HR320/28XJ 92116 92116-1009 1
BEARING-ROLLER,HICAP 32005JR 92116A 92116-1052 1
BOLT-FLANGED,6X12 130 130G0612 1
BOLT-FLANGED,6X14 130A 130G0614 2
W-PLAIN-S 410 410F1800 1
