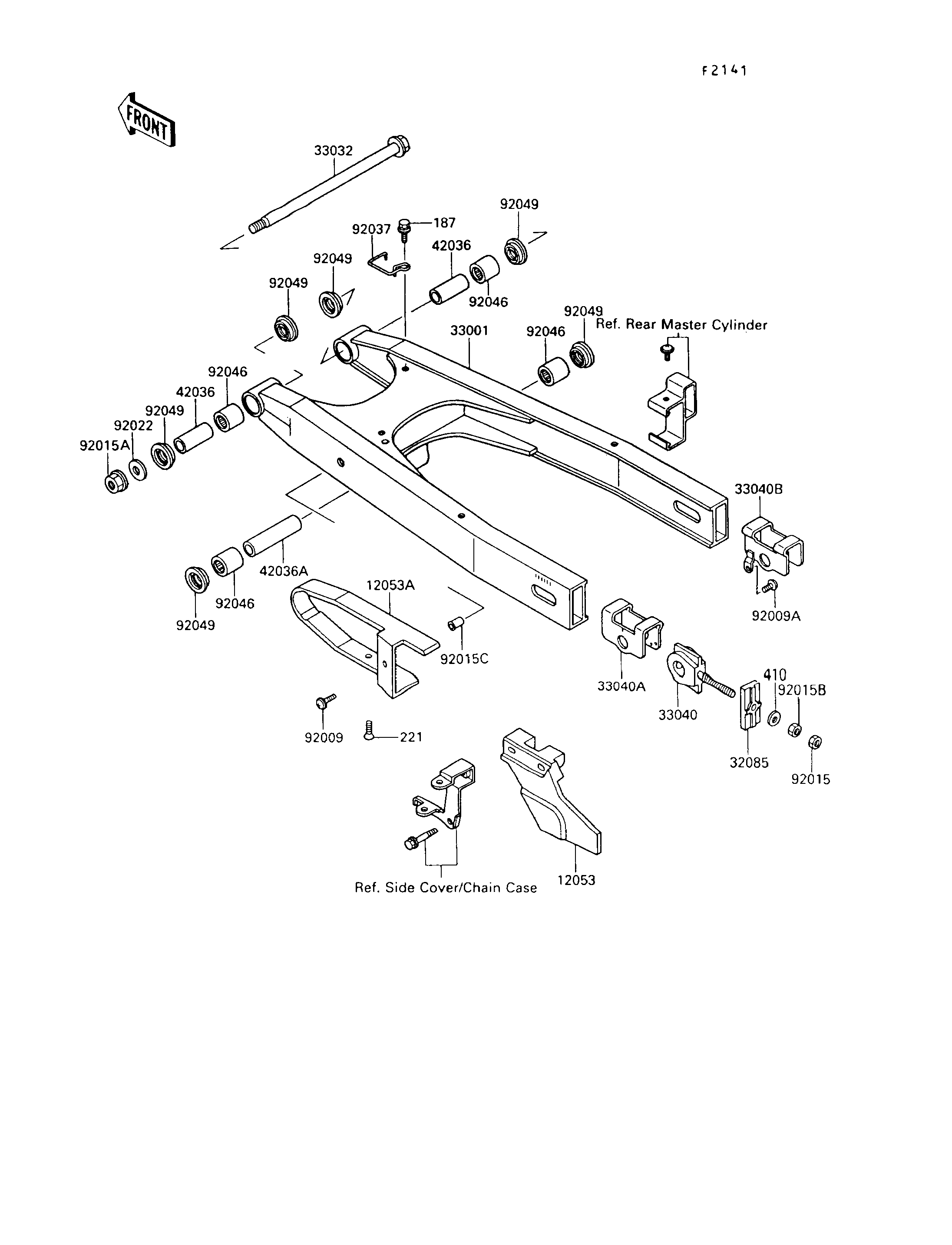

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE-CHAIN,RR 12053 12053-1104 1
GUIDE-CHAIN,DRIVE,FR 12053A 12053-1293 1
STOPPER,CHAIN ADJUSTER 32085 32085-1256 2
ARM-COMP-SWING,SILVER NO.25 33001 33001-1278-CE 1
SHAFT-SWING ARM 33032 33032-1128 1
ADJUSTER-CHAIN,INNER 33040 33040-1075 2
ADJUSTER-CHAIN,OUTER 33040A 33040-1076 1
ADJUSTER-CHAIN,OUTER 33040B 33040-1078 1
SLEEVE,15X20X47.5 42036 42036-1204 2
SLEEVE,15X20X82 42036A 42036-1205 1
SCREW,6X14 92009 92009-1288 1
SCREW,5X10 92009A 92009-1651 1
NUT,8MM 92015 92015-1364 2
NUT,14MM 92015A 92015-1459 1
NUT,8MM 92015B 92015-1658 2
NUT,CRIMP 6MM 92015C 92015-1796 1
WASHER,16X32X3.2 92022 92022-1701 1
CLAMP,HOSE 92037 92037-1902 1
BEARING-NEEDLE,BM202726 92046 92046-1110 4
SEAL-OIL,ARM,CNT 92049 92049-1109 6
BOLT-UPSET-WSP 187 187D0610 1
SCREW-CSK-CROS,6X10 221 221B0610 1
WASHER-PLAIN-SMALL,8MM 410 410B0800 2
