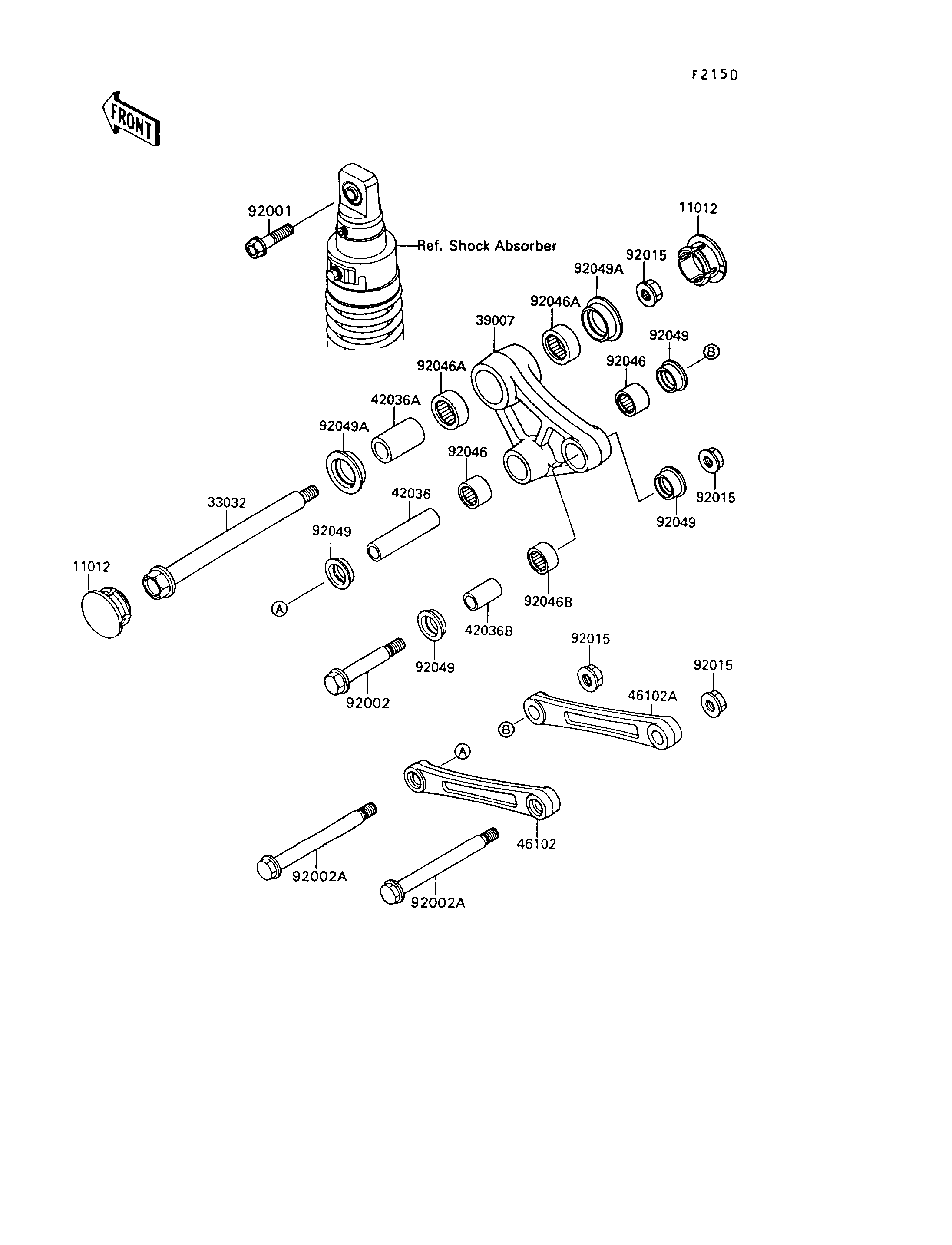

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,32X14 11012 11012-1559 2
SHAFT-SWING ARM 33032 33032-1129 1
ARM-SUSP,UNI TRAK 39007 39007-1119 1
SLEEVE,15X20X82 42036 42036-1205 1
SLEEVE,20X28X60 42036A 42036-1207 1
SLEEVE,15X20X30 42036B 42036-1208 1
ROD,SUSPENSION,LH 46102 46102-1227 1
ROD,SUSPWNSION,RH 46102A 46102-1228 1
BOLT,12X45 92001 92001-1939 1
BOLT,FLANGED,14X64 92002 92002-1869 1
BOLT,FLANGED,14X120 92002A 92002-1870 2
NUT,14MM 92015 92015-1459 4
BEARING-NEEDLE,BM202726 92046 92046-1110 2
BEARING-NEEDLE,BM283417 92046A 92046-1111 2
BEARING-NEEDLE,BM202715 92046B 92046-1112 1
SEAL-OIL,ARM,CNT 92049 92049-1109 4
SEAL-OIL 92049A 92049-1181 2
