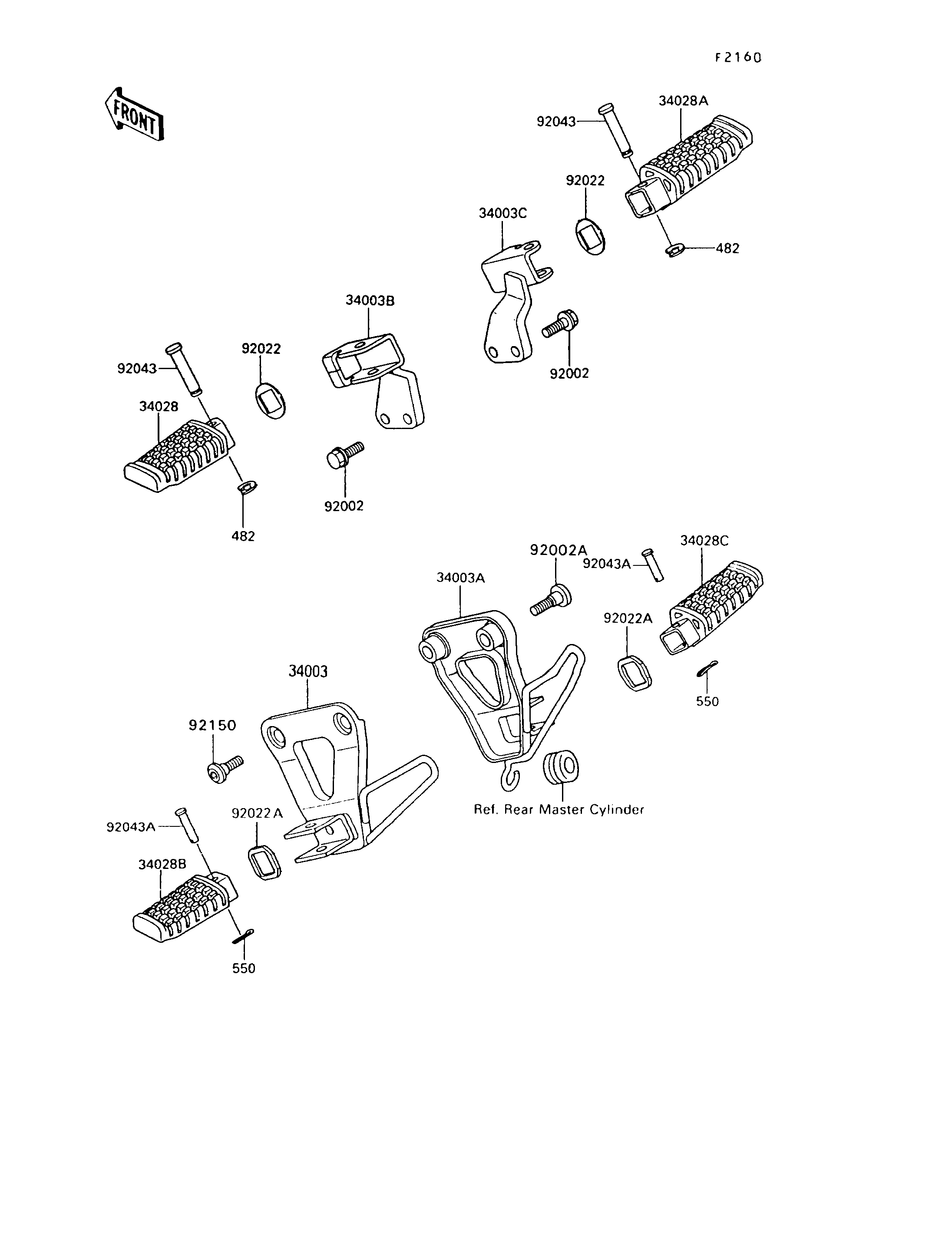

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-STEP,RR,LH,SILVER NO.25 34003 34003-1275-CE 1
HOLDER-STEP,RR,RH,SILVER NO.25 34003A 34003-1276-CE 1
HOLDER-STEP,FR,LH,SILVER NO.25 34003B 34003-1303-CE 1
HOLDER-STEP,FR,RH,SILVER NO.25 34003C 34003-1304-CE 1
STEP,FR,LH 34028 34028-1193 1
STEP,FR,RH 34028A 34028-1194 1
STEP,RR,LH 34028B 34028-1195 1
STEP,RR,RH 34028C 34028-1196 1
BOLT-FLANGED,8X20 92002 92002-1417 4
BOLT,SOCKET,8X23.5 92002A 92002-1598 2
WASHER,STEP FITTING 92022 92022-1314 2
WASHER,STEP FITTING 92022A 92022-1797 2
PIN,8X36.5 92043 92043-1339 2
PIN,6X28 92043A 92043-1464 2
BOLT,SOCKET,8X20 92150 92150-1839 2
CIRCLIP-TYPE-E 482 482L7000 2
PIN-COTTER,2.0X15 550 550D2015 2
