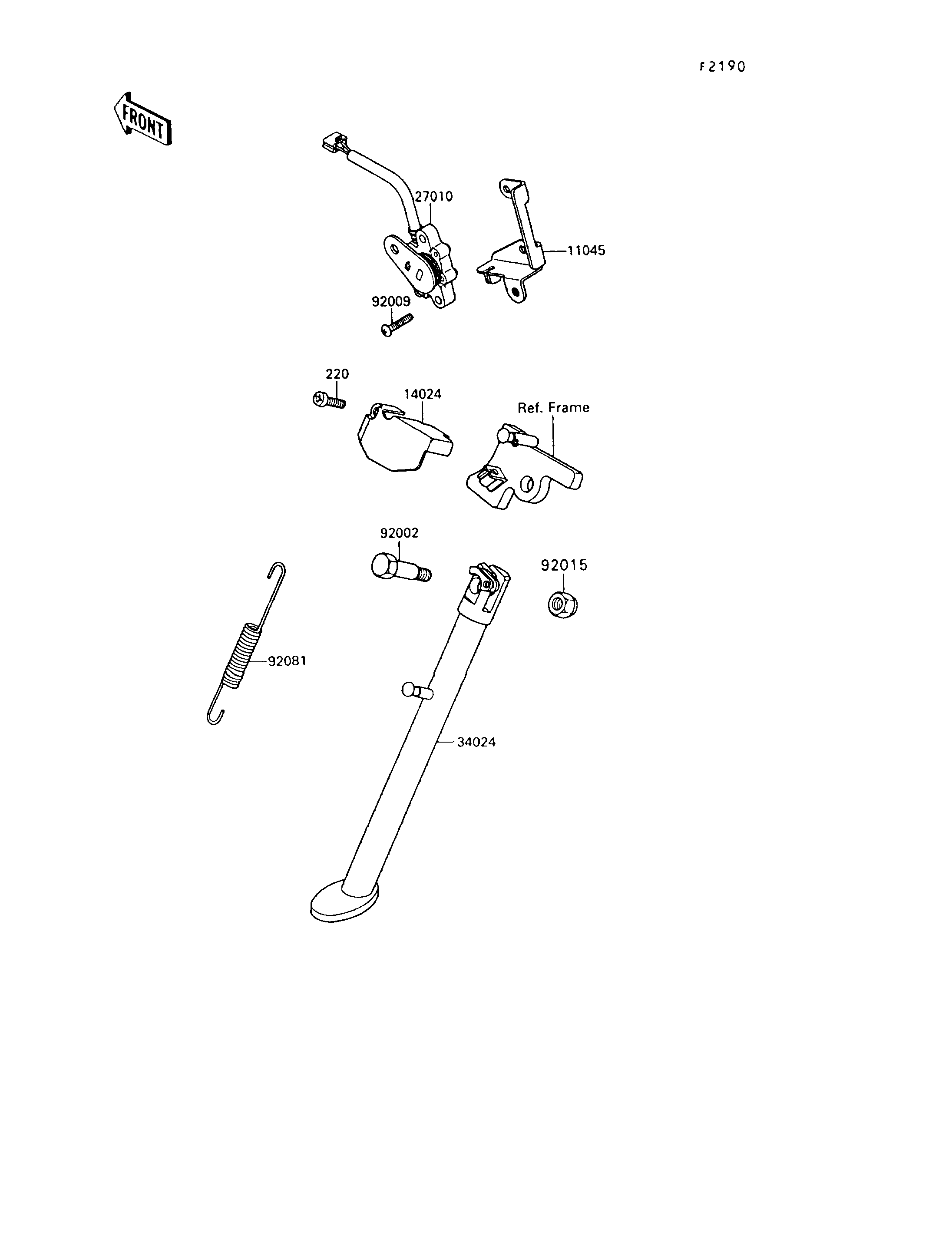

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SIDE STAND SWITCH 11045 11045-1364 1 CNUS
COVER,SIDE STAND 14024 14024-1474 1
SWITCH,SIDE STAND 27010 27010-1257 1
STAND-SIDE 34024 34024-1221 1
BOLT,SIDE STAND 92002 92002-1813 1
SCREW,5X25 92009 92009-1657 2
NUT,LOCK,10MM,BLACK 92015 92015-1188 1
SPRING,SIDE STAND 92081 92081-1376 1
SCREW-PAN-CROS 220 220C0516 1
