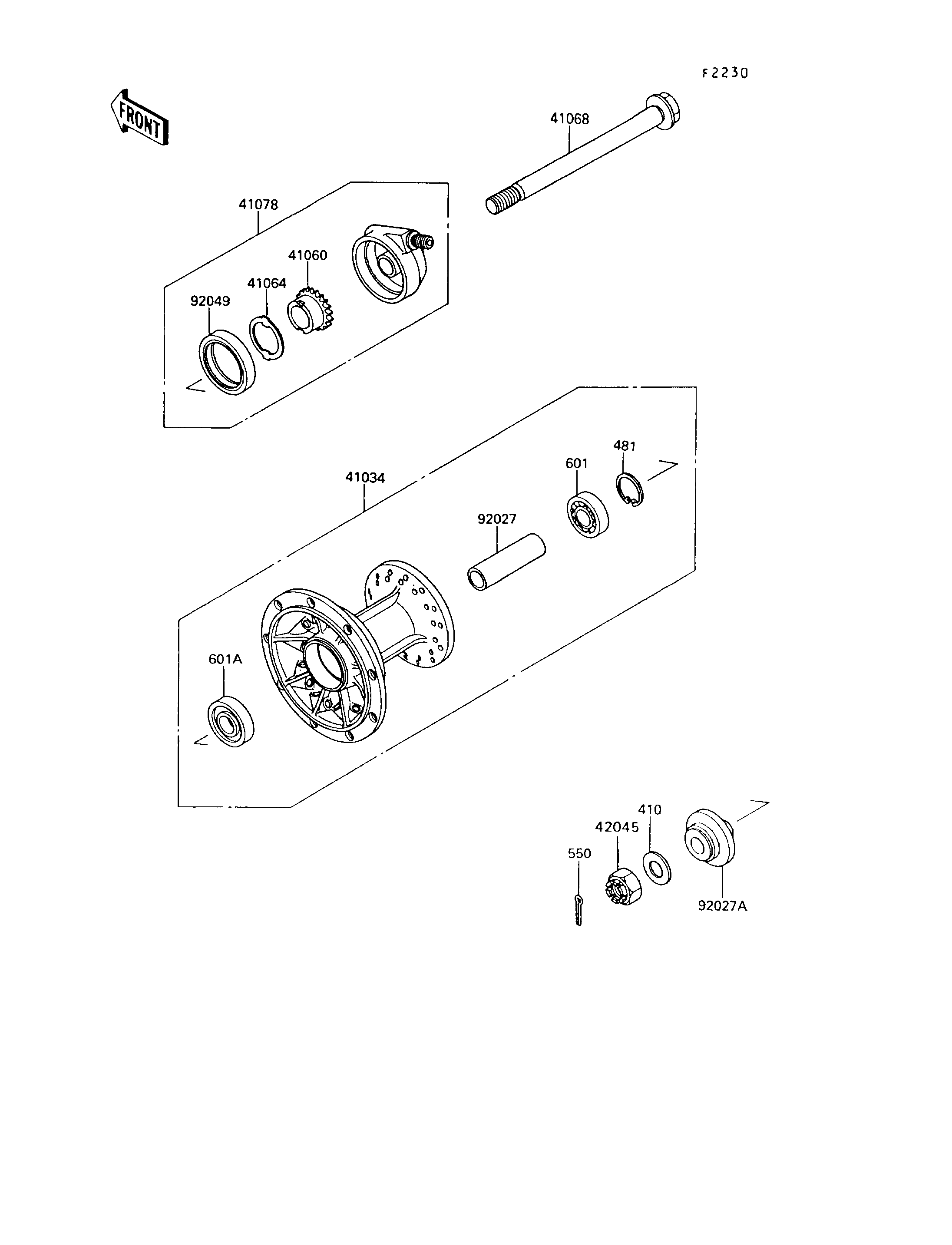

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,FRONT BRAKE 41034 41034-1153 1
GEAR-METER SCREW,24T 41060 41060-1101 1
RECEIVER-SPEEDOMETER 41064 41064-1051 1
AXLE,FR 41068 41068-1236 1
CASE-ASSY-METER GEAR 41078 41078-1051 1
NUT,CASTLE,14MM 42045 42045-020 1
COLLAR,FRONT BRAKE DRUM,L=79 92027 92027-1683 1
COLLAR 92027A 92027-1864 1
SEAL-OIL,METER GEAR CASE 92049 92049-1172 1
WASHER-PLAIN-SMALL,14MM 410 410B1400 1
CIRCLIP-TYPE-C,35MM 481 481J3500 1
PIN-COTTER,3.0X25 550 550D3025 1
BEARING-BALL,#6202UG 601 601B6202UG 1
BEARING-BALL,#6203UG 601A 601B6203UG 1
