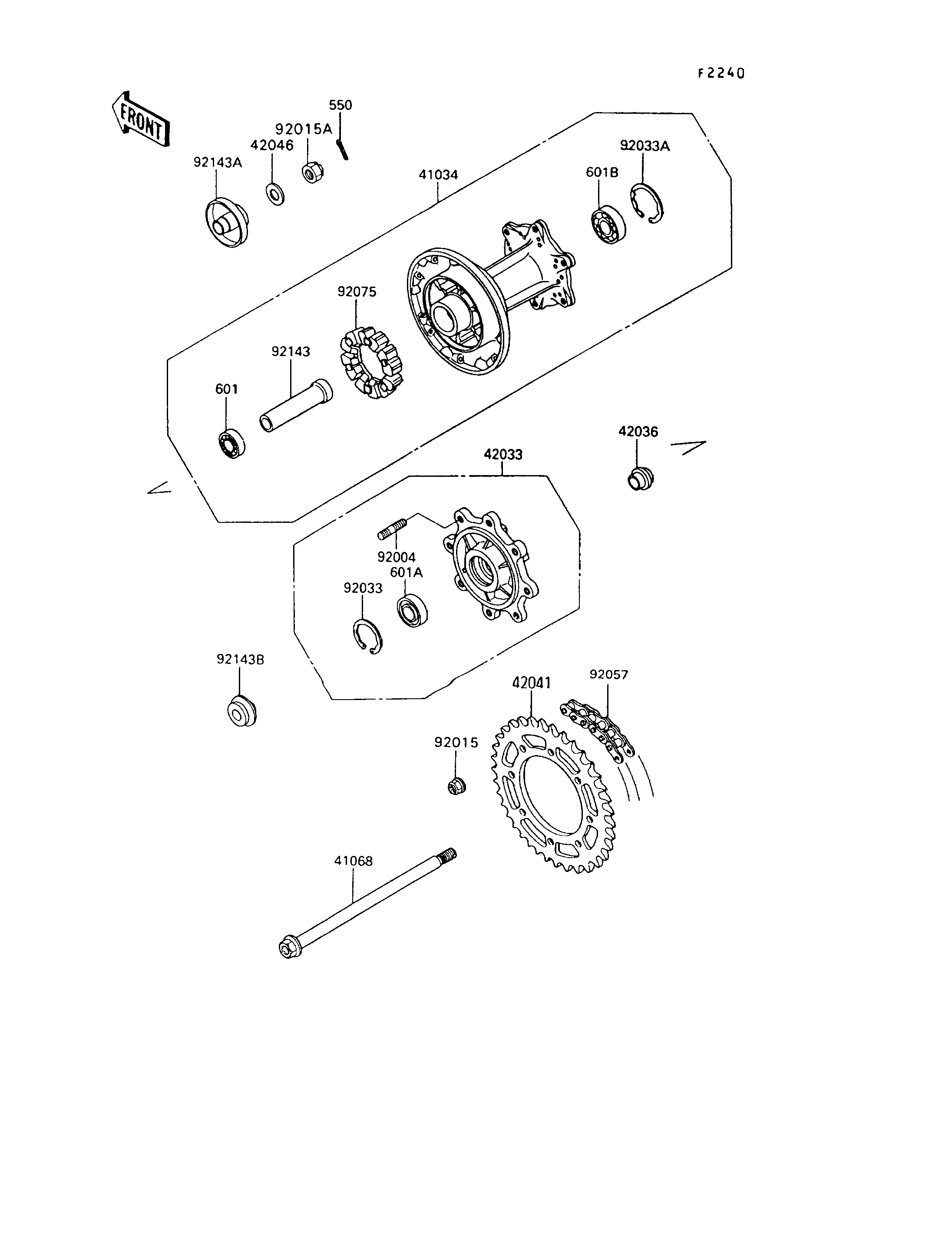

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM-ASSY,REAR BRAKE | 41034 | 41034-1154 | 1 | ||
| AXLE,RR | 41068 | 41068-1237 | 1 | ||
| COUPLING-ASSY,REAR HUB | 42033 | 42033-1112 | 1 | ||
| SLEEVE,REAR AXLE,L=16 | 42036 | 42036-1206 | 1 | ||
| SPROCKET-HUB,43T | 42041 | 42041-1260 | 1 | ||
| WASHER,17.3X32X3.2 | 42046 | 42046-009 | 1 | ||
| STUD,8X16 | 92004 | 92004-1150 | 8 | ||
| NUT,FLANGED,LOCK,8MM | 92015 | 92015-1668 | 8 | ||
| NUT,CASTLE,16MM | 92015A | 92015-1947 | 1 | ||
| RING-SNAP,42MM | 92033 | 92033-1041 | 1 | ||
| RING-SNAP,47MM | 92033A | 92033-1042 | 1 | ||
| CHAIN,DRIVE,DID520V-2X106L | 92057 | 92057-1253 | 1 | ||
| DAMPER,SHOCK,RR HUB | 92075 | 92075-1068 | 1 | ||
| COLLAR,REAR BRAKE DRUM,L=113 | 92143 | 92143-1060 | 1 | ||
| COLLAR,REAR AXLE,L=30 | 92143A | 92143-1061 | 1 | ||
| COLLAR,REAR AXLE,L=17 | 92143B | 92143-1062 | 1 | ||
| PIN-COTTER,4.0X35 | 550 | 550D4035 | 1 | ||
| BEARING-BALL,#6003G | 601 | 601B6003G | 1 | ||
| BEARING-BALL,#6004UG | 601A | 601B6004UG | 1 | ||
| BEARING-BALL,#6204UG | 601B | 601B6204UG | 1 |
| DRUM-ASSY,REAR BRAKE | |
| REF # | 41034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,RR | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COUPLING-ASSY,REAR HUB | |
| REF # | 42033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,REAR AXLE,L=16 | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-HUB,43T | |
| REF # | 42041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,17.3X32X3.2 | |
| REF # | 42046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STUD,8X16 | |
| REF # | 92004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,LOCK,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,CASTLE,16MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,42MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,47MM | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN,DRIVE,DID520V-2X106L | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,SHOCK,RR HUB | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,REAR BRAKE DRUM,L=113 | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,REAR AXLE,L=30 | |
| REF # | 92143A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,REAR AXLE,L=17 | |
| REF # | 92143B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-COTTER,4.0X35 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6003G | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6004UG | |
| REF # | 601A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6204UG | |
| REF # | 601B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
