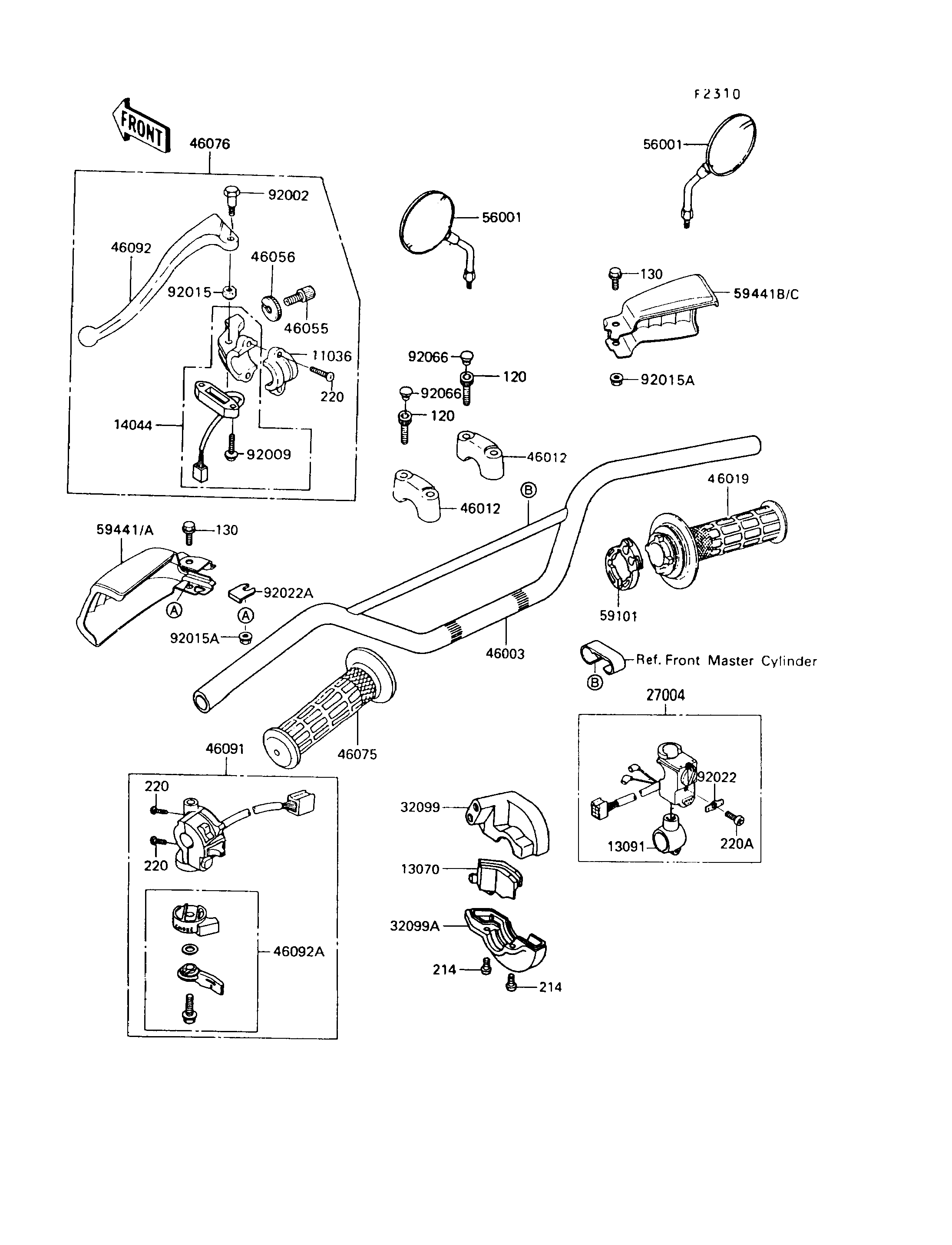

1995 KLR650 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-A,LEVER HOLDER 11036 11036-1297 1
GUIDE,THROTTLE PEACE 13070 13070-1131 1
HOLDER,ENGINE STOP SWITCH 13091 13091-1255 1
HOLDER-CABLE,CLUTCH 14044 14044-1062 1
SWITCH-ASSY,ENGINE STOP 27004 27004-1053 1
CASE,THROTTLE,UPP 32099 32099-1072 1
CASE,THROTTLE,LWR 32099A 32099-1073 1
HANDLE 46003 46003-1153 1
HOLDER-HANDLE 46012 46012-1102 2
GRIP-ASSY,THROTTLE 46019 46019-1054 1
SCREW,CABLE ADJUST,8MM 46055 46055-009 1
NUT,CABLE ADJUST 46056 46056-006 1
GRIP,LH 46075 46075-1051 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-1142 1
HOUSING-ASSY-CONTROL,LH 46091 46091-1309 1
LEVER-GRIP,CLUTCH 46092 46092-1111 1
LEVER-GRIP,CHOKE 46092A 46092-1123 1
MIRROR-ASSY 56001 56001-1204 2
REEL,THROTTLE 59101 59101-1106 1
COVER-HANDLE,LH,GREEN 15 59441 59441-1073-51 1
COVER-HANDLE,RH,GREEN 15 59441B 59441-1074-51 1
BOLT,LEVER SET 92002 92002-1880 1
SCREW,TAPPING,3X18 92009 92009-1390 2
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
NUT,LOCK,6MM 92015A 92015-1603 2
WASHER,ENGINE STOP SWITCH 92022 92022-1474 1
WASHER 92022A 92022-1896 1
PLUG 92066 92066-1216 4
BOLT-SOCKET,8X30,BLACK 120 120S0830 4
BOLT-FLANGED 130 130J0612 2
SCREW-PAN+- 214 214C0518 2
SCREW-PAN-CROS 220 220C0514 4
SCREW-PAN-CROS,6X20,BLACK 220A 220C0620 1
