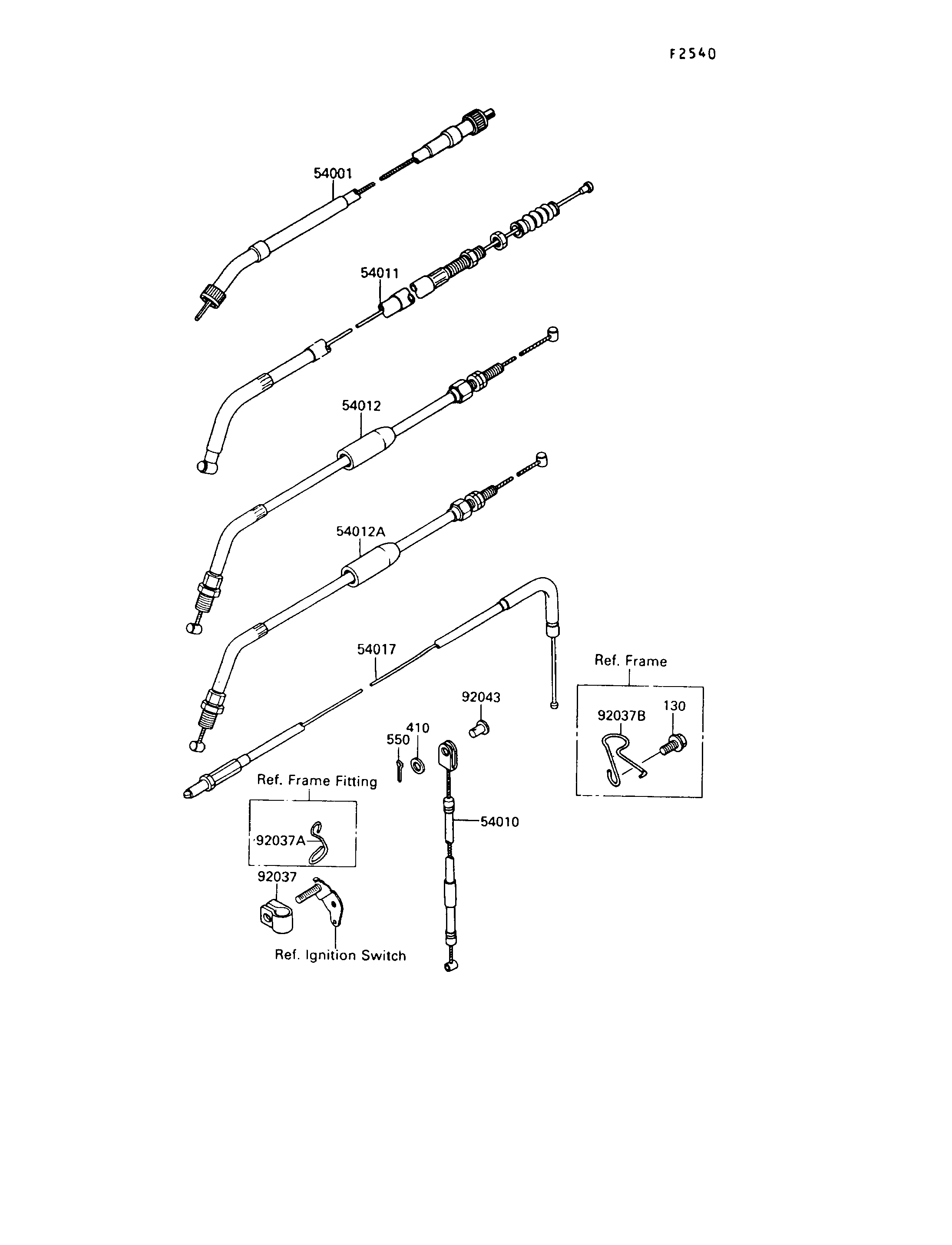

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE-SPEEDMETER 54001 54001-1128 1
CABLE,SIDE STAND SWITCH 54010 54010-1061 1
CABLE-CLUTCH 54011 54011-1257 1
CABLE-THROTTLE,OPENING 54012 54012-1327 1
CABLE-THROTTLE,CLOSING 54012A 54012-1328 1
CABLE-STARTER 54017 54017-1090 1
CLAMP,CABLE 92037 92037-1777 1
CLAMP,CABLE 92037A 92037-1904 1
CLAMP,CABLE 92037B 92037-1937 1
PIN,5X10 92043 92043-1346 1
BOLT-FLANGED,6X12 130 130B0612 1
WASHER-PLAIN-SMALL,5MM 410 410B0500 1
PIN-COTTER,2.0X12 550 550D2012 1
