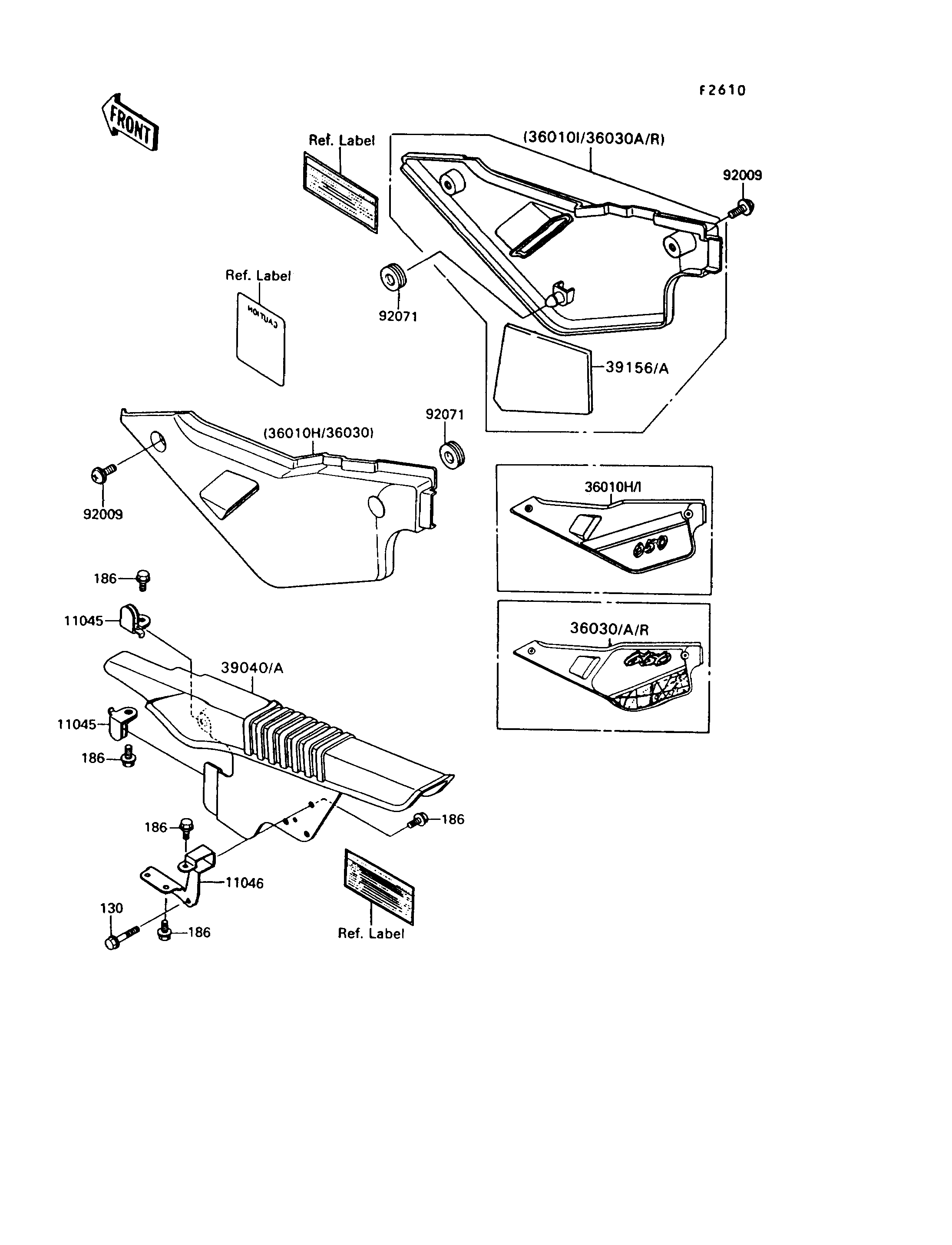

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CHAIN CASE,FR 11045 11045-1335 2
BRACKET,CHAIN CASE,RR 11046 11046-1391 1
COVER-SIDE,LH,P.WHITE 36030 36030-5262-6F 1
COVER-SIDE,RH,P.WHITE 36030R 36030-5371-6F 1
COVER-ASSY-CHAIN CASE 39040A 39040-1057 1
PAD,SIDE COVER 39156A 39156-1426 1
SCREW,6X10,WHITE 92009 92009-1286 4
GROMMET 92071 92071-056 2
BOLT-FLANGED 130 130H0640 2
BOLT-UPSET-WP 186 186C0612 5
