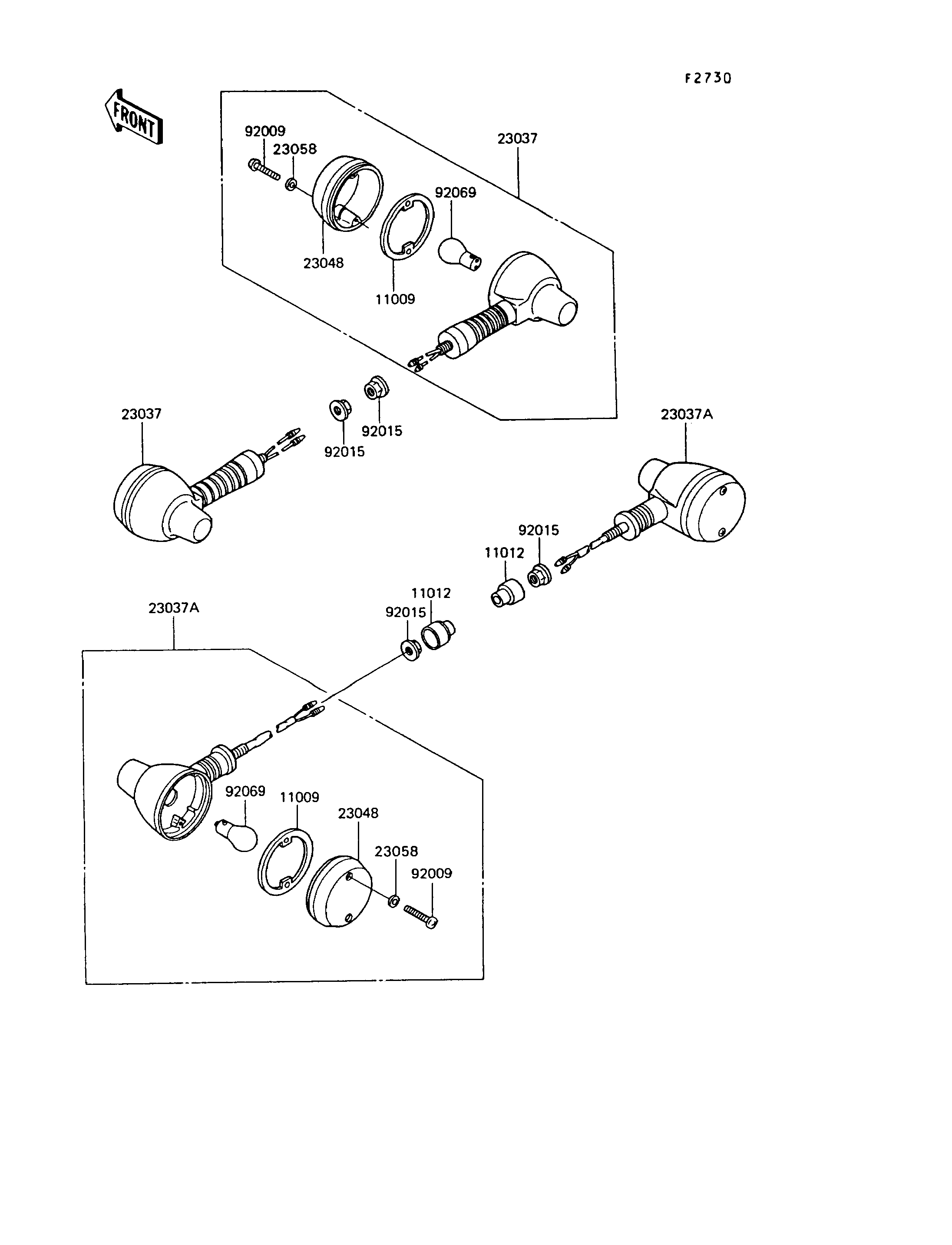

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TURN SIGNAL LAMP LENS 11009 11009-1128 4
CAP,SIGNAL LAMP 11012 11012-1367 2
LAMP-ASSY-SIGNAL,FR 23037 23037-1201 2
LAMP-ASSY-SIGNAL,RR 23037A 23037-1202 2
LENS-SIGNAL LAMP 23048 23048-1076 4
WASHER,PLAIN,4MM 23058 23058-002 8
SCREW,TAPPING,4X30 92009 92009-1056 8
NUT,FLANGED,10MM 92015 92015-1428 4
BULB,12V 32CP(23W) 92069 92069-055 4
