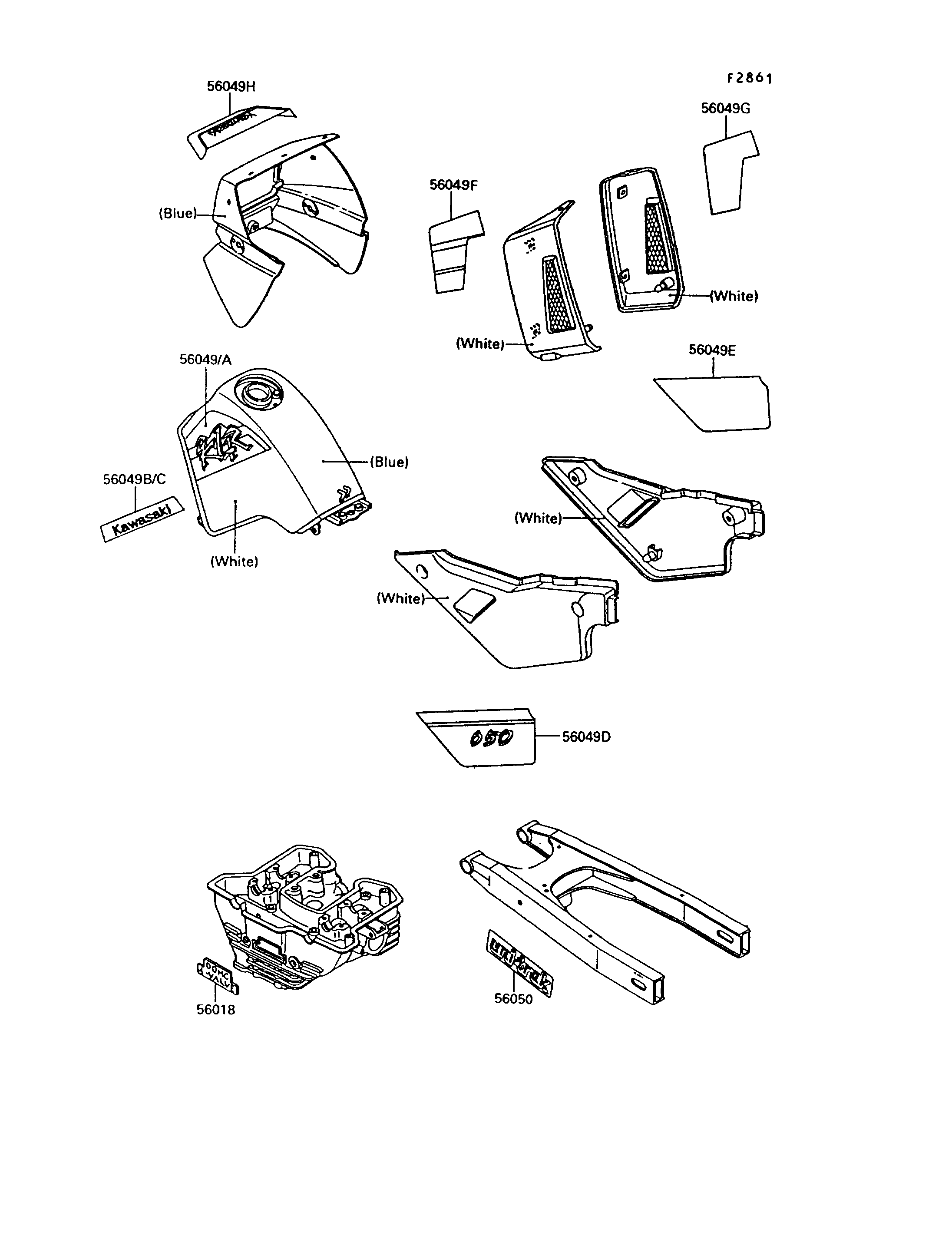

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,CYLINDER HEAD 56018 56018-1483 1
PATTERN,FUEL TANK,UPP,LH 56049 56049-1826 1
PATTERN,FUEL TANK,UPP,RH 56049A 56049-1827 1
PATTERN,FUEL TANK,LWR,LH 56049B 56049-1828 1
PATTERN,FUEL TANK,LWR,RH 56049C 56049-1829 1
PATTERN,SIDE COVER,LH 56049D 56049-1830 1
PATTERN,SIDE COVER,RH 56049E 56049-1831 1
PATTERN,SHROUD,LH 56049F 56049-1832 1
PATTERN,SHROUD,RH 56049G 56049-1833 1
PATTERN,COWLING 56049H 56049-1834 1
MARK,SWING ARM,UNI-TRAK 56050 56050-1426 2
