Part Item Information

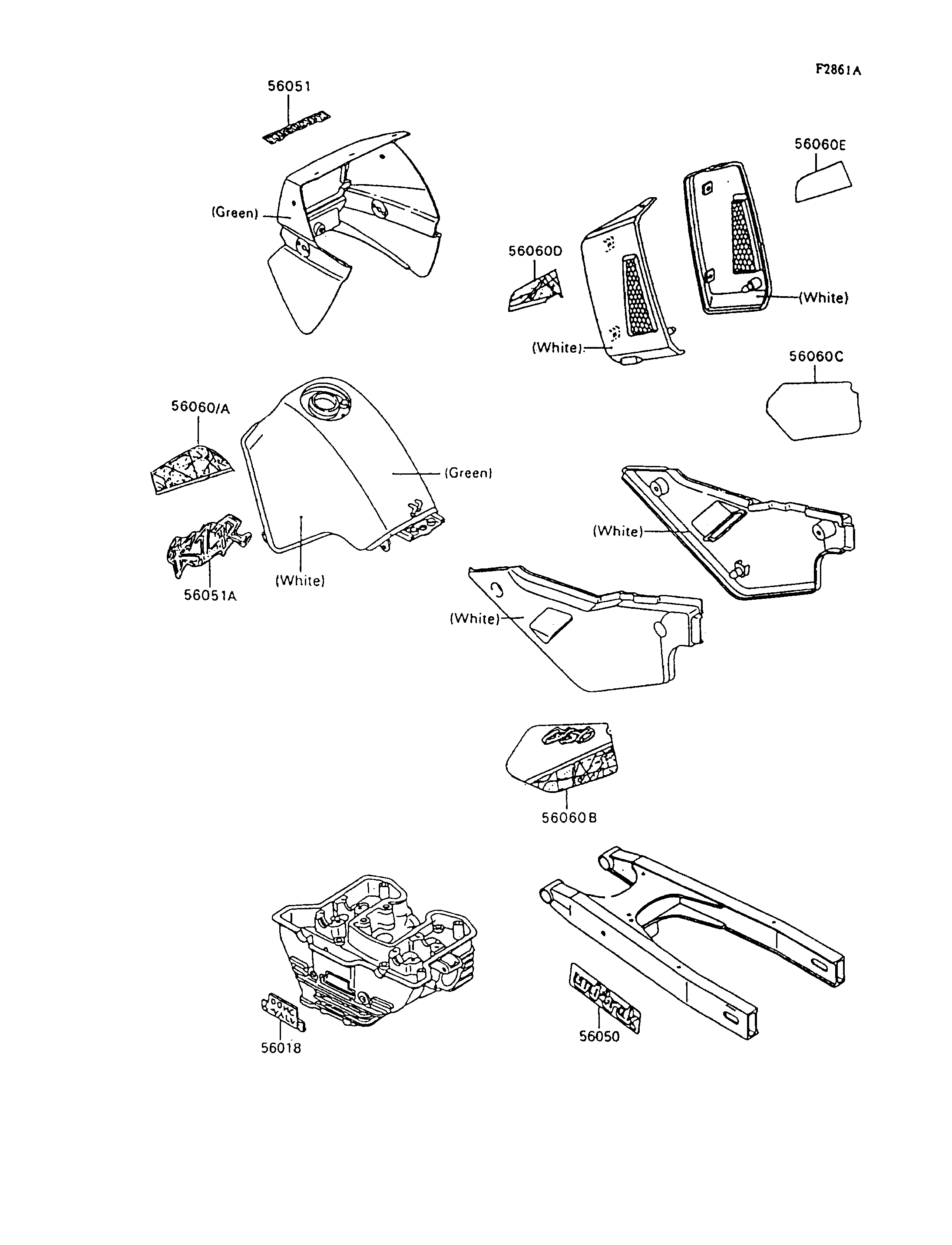

ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,CYLINDER HEAD 56018 56018-1483 1
MARK,SWING ARM,UNI-TRAK 56050 56050-1916 2
MARK,KAWASAKI 56051 56051-1047 1
MARK,FUEL TANK,KLR 56051A 56051-1048 2
PATTERN,FUEL TANK,LH 56060 56060-1755 1
PATTERN,FUEL TANK,RH 56060A 56060-1756 1
PATTERN,SIDE COVER,LH 56060B 56060-1759 1
PATTERN,SIDE COVER,RH 56060C 56060-1760 1
PATTERN,SHROUD,LH 56060D 56060-1761 1
PATTERN,SHROUD,RH 56060E 56060-1762 1
