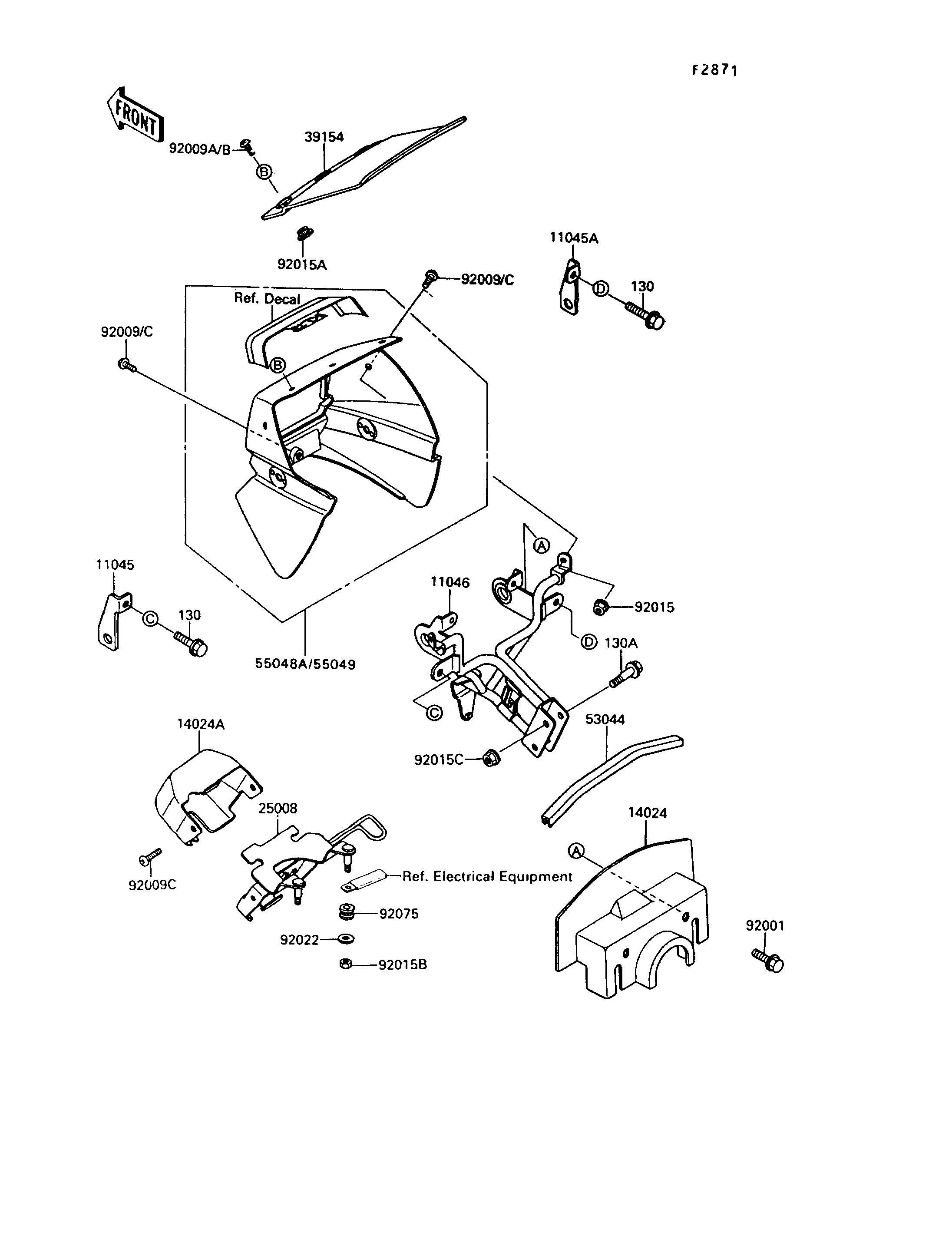

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,SIGNAL LAMP,LH | 11045 | 11045-1798 | 1 | ||
BRACKET,SIGNAL LAMP,RH | 11045A | 11045-1799 | 1 | ||
BRACKET,COWLING | 11046 | 11046-1036 | 1 | ||
COVER,COWLING,INNER | 14024 | 14024-1366 | 1 | ||
COVER,HARNESS COUPLER | 14024A | 14024-1471 | 1 | ||
BRACKET-METER | 25008 | 25008-1137 | 1 | ||
WINDSHIELD | 39154 | 39154-1065 | 1 | ||
TRIM,COWLING COVER | 53044 | 53044-1106 | 1 | ||
COWLING.,UPP,GREEN 15 | 55049 | 55049-5229-51 | 1 | ||
BOLT,6X14,BLACK | 92001 | 92001-1847 | 2 | ||
SCREW,6X14,WHITE | 92009 | 92009-1287 | 3 | ||
SCREW,5X14,WHITE | 92009A | 92009-1366 | 3 | ||
SCREW,5X14 | 92009B | 92009-1653 | 3 | ||
SCREW,6X14 | 92009C | 92009-1662 | 5 | ||
NUT,FLANGED,6MM | 92015 | 92015-1193 | 2 | ||
NUT,5MM,COWLING | 92015A | 92015-1343 | 3 | ||
NUT,6MM | 92015B | 92015-1391 | 2 | ||
NUT,FLANGED,8MM | 92015C | 92015-1406 | 2 | ||
WASHER,6.5X20X1.6 | 92022 | 92022-1557 | 2 | ||
DAMPER | 92075 | 92075-024 | 2 | ||
BOLT-FLANGED,6X12 | 130 | 130C0612 | 2 | ||
BOLT-FLANGED,8X25 | 130A | 130G0825 | 2 |
BRACKET,SIGNAL LAMP,LH | |
REF # | 11045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,SIGNAL LAMP,RH | |
REF # | 11045A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,COWLING | |
REF # | 11046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,COWLING,INNER | |
REF # | 14024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,HARNESS COUPLER | |
REF # | 14024A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-METER | |
REF # | 25008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WINDSHIELD | |
REF # | 39154 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM,COWLING COVER | |
REF # | 53044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COWLING.,UPP,GREEN 15 | |
REF # | 55049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X14,BLACK | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,6X14,WHITE | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW,5X14,WHITE | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW,5X14 | |
REF # | 92009B |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW,6X14 | |
REF # | 92009C |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,5MM,COWLING | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92015B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,8MM | |
REF # | 92015C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,6.5X20X1.6 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X12 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X25 | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
