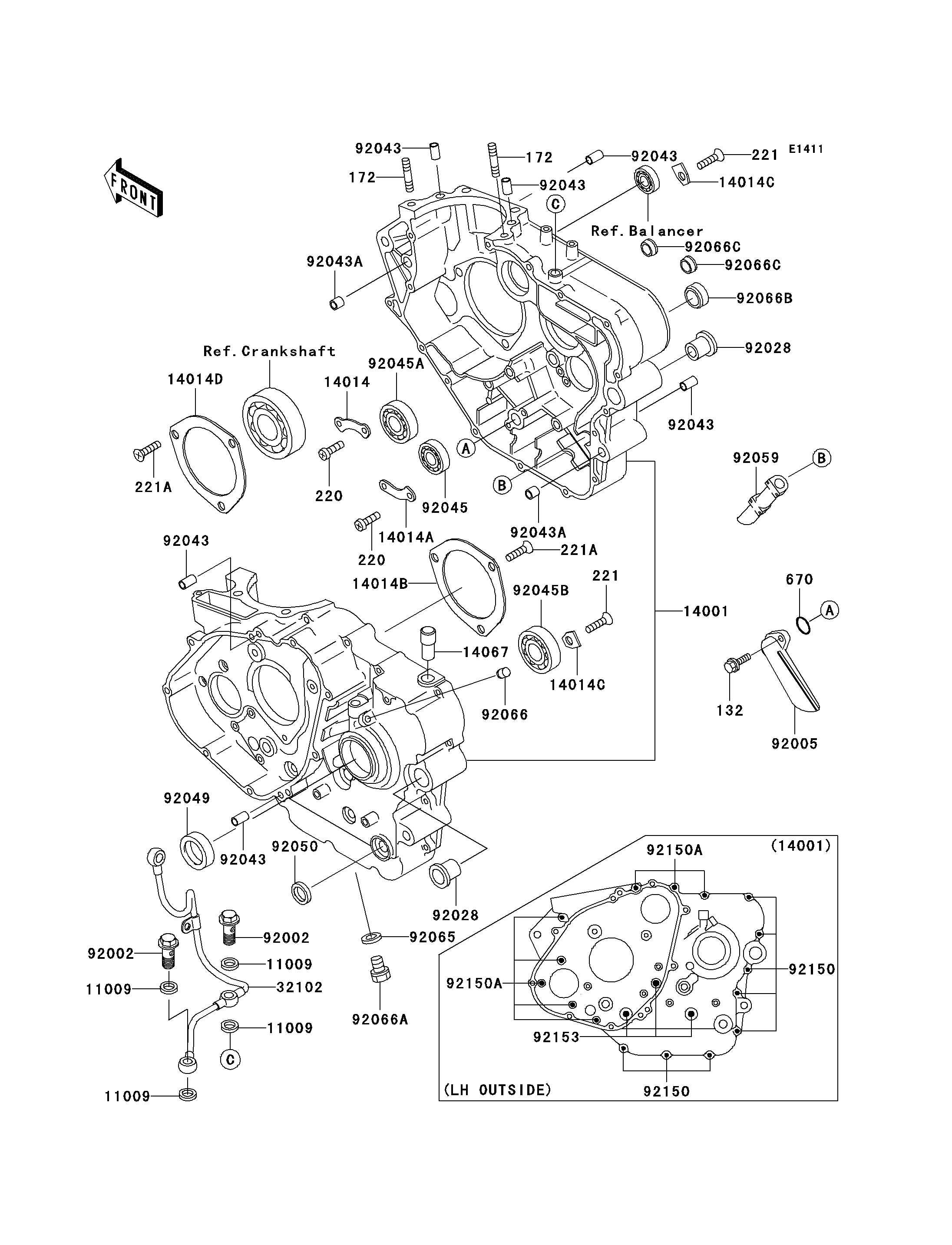

2006 KLR650 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
132
172
172
220
220
221
221
221A
221A
670
11009
11009
11009
11009
14001
14014
14014A
14014B
14014C
14014C
14014D
14067
32102
92002
92002
92005
92028
92028
92043
92043
92043
92043
92043
92043
92043A
92043A
92045
92045A
92045B
92049
92050
92059
92065
92066
92066A
92066B
92066C
92066C
92150
92150
92150A
92150A
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X20 132 132G0620 2
BOLT-STUD,8X22 172 172G0822 2
SCREW-PAN-CROS,6X12 220 220B0612 4
SCREW-CSK-CROS,6X12 221 221B0612 2
SCREW-CSK-CROS,6X16 221A 221B0616 6
O RING 670 670D2018 1
GASKET,10X14.5X1.5 11009 11009-1105 4
SET-CRANKCASE 14001 14001-5340 1
PLATE-POSITION,CHANGE DRUM 14014 14014-037 1
PLATE-POSITION 14014A 14014-1015 1
PLATE-POSITION 14014B 14014-1051 1
PLATE-POSITION 14014C 14014-1057 2
PLATE-POSITION 14014D 14014-1083 1
FITTING,BREATHER 14067 14067-006 1
PIPE,CRANKCASE-HEAD 32102 32102-1353 1
BOLT,BANJO,10X25 92002 92002-1170 2
FITTING 92005 92005-1152 1
BUSHING,SWING ARM 92028 92028-1261 2
PIN,6.2X8X14 92043 92043-1263 6
PIN,11.5X14X14 92043A 92043-1279 2
BEARING-BALL,#6905 92045 92045-036 1
BEARING-BALL,TMB205 92045A 92045-1105 1
BEARING-BALL,TM-SX0597LU 92045B 92045-1127 1
SEAL-OIL,TC32457 92049 92049-1159 1
SEAL-OIL 92050 92050-082 1
TUBE,BREATHER 92059 92059-1833 1
GASKET,12X22X2 92065 92065-097 1
PLUG,OIL LINE,7.2X8 92066 92066-1012 1
PLUG,OIL DRAIN,12X15 92066A 92066-1174 1
PLUG,RCA207 92066B 92066-1264 1
PLUG 92066C 92066-1282 2
BOLT,6X30 92150 92150-1021 8
BOLT,6X50 92150A 92150-1968 8
BOLT,FLANGED-SMALL,8X80 92153 92153-1323 3
